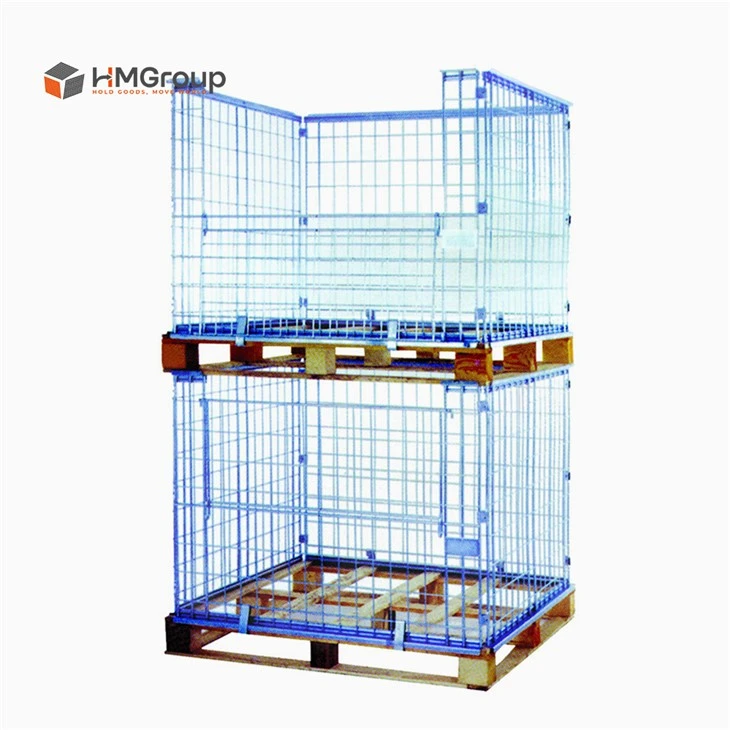

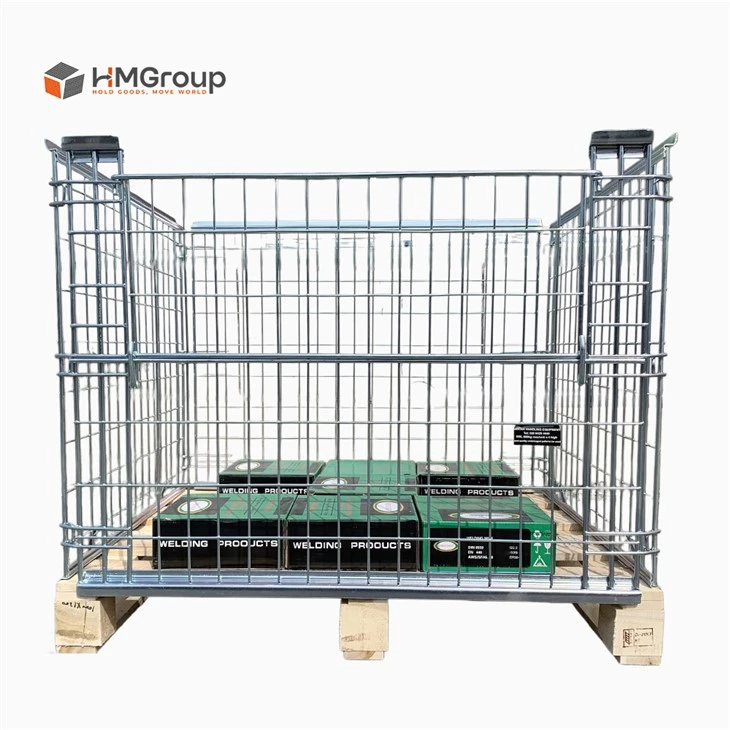

Warehouse Foldable Steel Pallet Cage
Warehouse foldable steel pallet cage is made of mild steel material, which can store various products and is easy to stack and fold.
Model No.: HM-CP001
Exterior Dim.: 1200L×800W×1000H mm
Grid Size: 60x103 mm
Loading Capacity: 800 kg
Stacking: 4high
Collapsible: 45-50lays
Loaded in 1x40'GP: 550 sets
Surface: All colours or zinc surfaced
Easy to mount on EUR pallet
Products Description
Warehouse Foldable Steel Pallet Cage
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 4 open
Surface: All colours or zinc surfaced
Collapsible to save space
Grid Size: 60x103 mm
HM-CP001
Model No.
800 kg
Loading Capacity
1200×800×1000 mm
Exterior dimension
550 sets
Loaded in 1X40'GP
Warehouse foldable steel pallet cage is ideal storage solution for warehouses that require secure and limited access to their storage products. The products are made from durable mild steel materials, such as steel or wire mesh, ensuring that they can withstand rigors of daily use in warehouse environment. Welded wire mesh pallet cage can be used to store wide range of products, including small components, finished goods, and raw materials. Their stackable design allows for easy storage and transport, even in limited warehouse space. The foldable design allows them to folded up to save space when not in use.
Advantages
1. Fold flat when not in use
2. Very easy to fix with a clip system
3. Reinforced steel rim around top edges for stacking
4. Designed for use with plastic or wooden pallets
5. Zinc plated finish for anti corrosion
Products Customized
HM Group is available in custom sizes and designs.
Application
One of the advantages of warehouse foldable steel pallet cage is that they can be folded and stacked, which means that you can save valuable storage space by stacking one pallet on another. At the same time, they can be detachable from the wooden pallet when not needed, and then folded for storage, saving space for storage equipment. This feature is handy if floor space is limited or you need to make more room in warehouse or storage room.
Hot Tags: warehouse foldable steel pallet cage, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior Dimension |
Wire Guage |
Grid Size |
Loading Capacity |
Loaded in 1x40'GP |
|
LxWxH(mm) |
mm |
mm |
kg |
sets |
|
| HM-CP001 |
1200x800x1000 |
5-10 |
60x103 |
800 |
550 |
| HM-CP002 |
1200x1000x1450 |
5-10 |
65x103 |
800 |
300 |
| HM-CP003 |
1200x1000x1200 |
5-10 |
65x103 |
800 |
500 |
| HM-CP004 |
1200x1000x1200 |
5-10 |
65x103 |
800 |
500 |
| HM-CP005 |
1200x800x1000 |
5-10 |
65x103 |
800 |
480 |
|
Material |
Mild steel Q235 |
||||
|
Finish |
Zinc/hot dip galvanized/powder coating |
||||
|
Remark |
Customized or OEM support |
||||
Similar Specification
You can customize the mesh sides connection of warehouse foldable steel pallet cage. The sides connection determines stability and strength, and different connection methods can offer varying levels of strength and durability. For example: clip or spring connections. The clip is more secure and the spring is more flexible.
|
Same design, different sizes |
|||||
|
Model No. |
Exterior Dimension |
Tube Dimension |
Wire Guage |
Grid Size |
Loaded in 1x40'HQ |
|
LxWxH(mm) |
mm |
mm |
mm |
sets |
|
| HM-CP-AU003 |
1170x1170x780 |
19x1.6&25x1.6 |
4 |
75x50 |
365 |
| HM-CP-AU007 |
1170x1170x500 |
19x1.6&25x1.6 |
4 |
75x50 |
488 |
| HM-CP-AU008 |
1170x1170x300 |
19x1.6&25x1.6 |
4 |
75x50 |
612 |
| HM-CP-EU009 |
1200x800x1200 |
21x1.5 |
4 |
100x100 |
261 |
| HM-CP-AU010 |
1170x1170x1200 |
19x1.6&25x1.6 |
4 |
75x50 |
200 |
| HM-CP-EU011 |
1200x800x800 |
21x1.5 |
4 |
100x100 |
440 |
| HM-CP-AU012 |
1200x800x1000 |
22 |
4 |
100x100 |
378 |
Video
Warehouse foldable steel pallet cage to maximize warehouse space and storage potential. Don’t wait, click play now to see.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
HM Group Q235 steel wires are of the highest quality, rigorously tested to guarantee customer satisfaction.
Quality Control
HM Group is committed to providing high-quality warehouse foldable steel pallet cage through rigorous quality inspections.
Packing and shipping
Wire mesh pallet box in warehouse packaging is strictly in accordance with the standard packaging to ensure that the product is not damaged during transportation.
1. Prevent scattering in shipping - stretch film wrapped
2. paper shells - edges are bundled up by paper shells
3. Steel straps - avoid breaking
4. Wooden pallet base – for easy loading and handling.
Certificate
HM Group maintains strict quality standards, supported by certifications from ISO, SGS, BV, and APT, along with patented technologies.
What Customers Say
If you are looking for company you can trust and be reliable, look no further than HM Group. One-stop service is all about customer satisfaction. Support is provided through online video audits and even third-party audits, ensuring full transparency and accountability. Plus, our remote installation guidance allows for quick and easy setup, so you can get equipment up and running quickly.
FAQ
Q: How to use the cage pallet?
--It works with wooden, plastic, or metal pallet. You can use a forklift to move it.
Q: What is it made of?
--The product is made of durable steel wire mesh.
Q: What is the clamping mechanism on wood pallets so that they can work together?
--There are hooks on the mesh, cage pallet, and wood pallet are connected by them.
Q: Do you also export to Europe?
--Yes, HM-CP-AU003 is generally exported to Australia, but HM-CP-EU009 or HM-CP001 are often exported to Europe.
