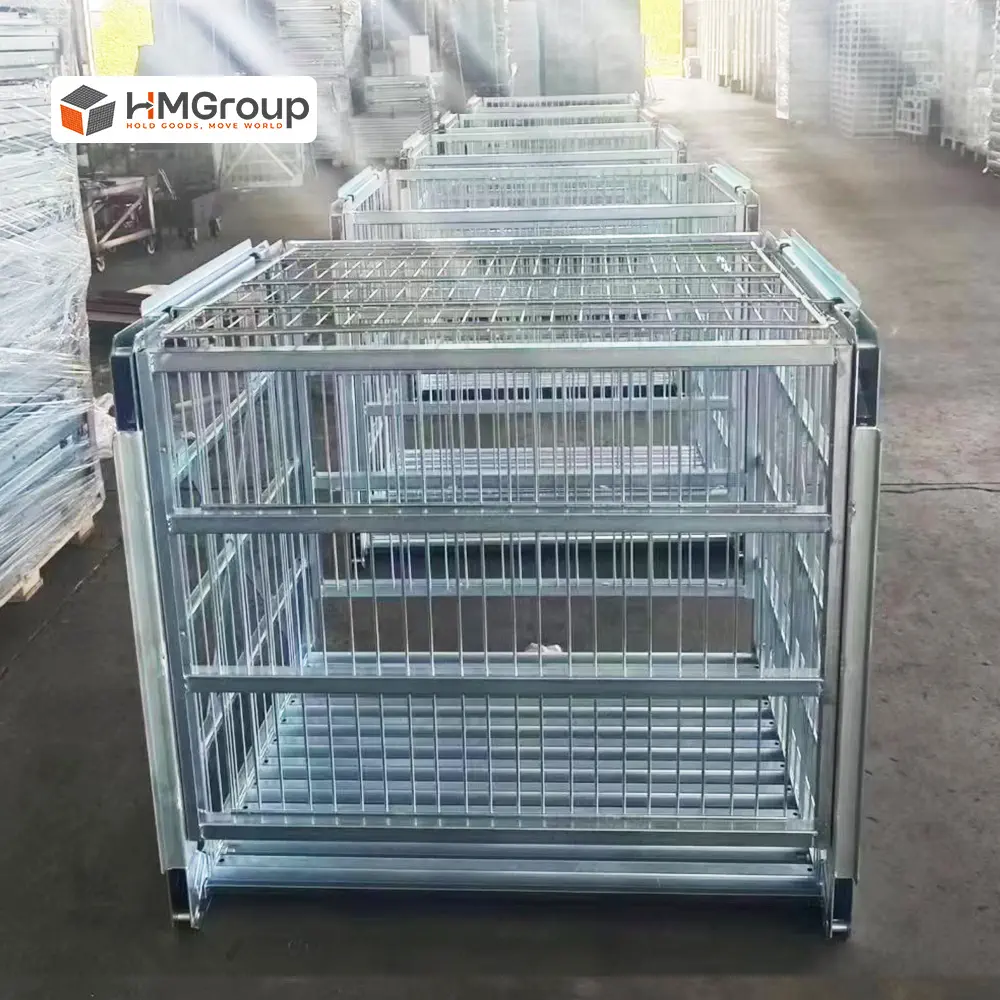

Bottle Riddling Cage
The standard Bottle Riddling Cage helps wineries automate remuage and protect bottles. It streamlines daily cellar handling while cutting manual labor costs across every batch.
Model No.:HM-RC1210
Exterior Dimension:1236x1030x1177 mm
Load capacity: 800 kg
Stacked:6 open
Loaded: 209 sets/ 40HQ
Material: Mild steel Q235
Bottle Capacity: 504 Bottles (750ml Standard)
Application: Gyropalette Automatic Riddling
Structure Feature: Foldable & 360° Rotation Lock
Surface Treatment: Zinc Galvanized, Hot-Dip Galvanized
Products Description
Bottle Riddling Cage
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Zinc Galvanized, Hot-Dip Galvanized
Foldable & 360° Rotation Lock
Application: Gyropalette Automatic Riddling and Storage
HM-RC1210
Model No.
800 kg
Loading Capacity
1236x1030x1177
Exterior dimension
209 sets
Loaded in 1X40'HQ

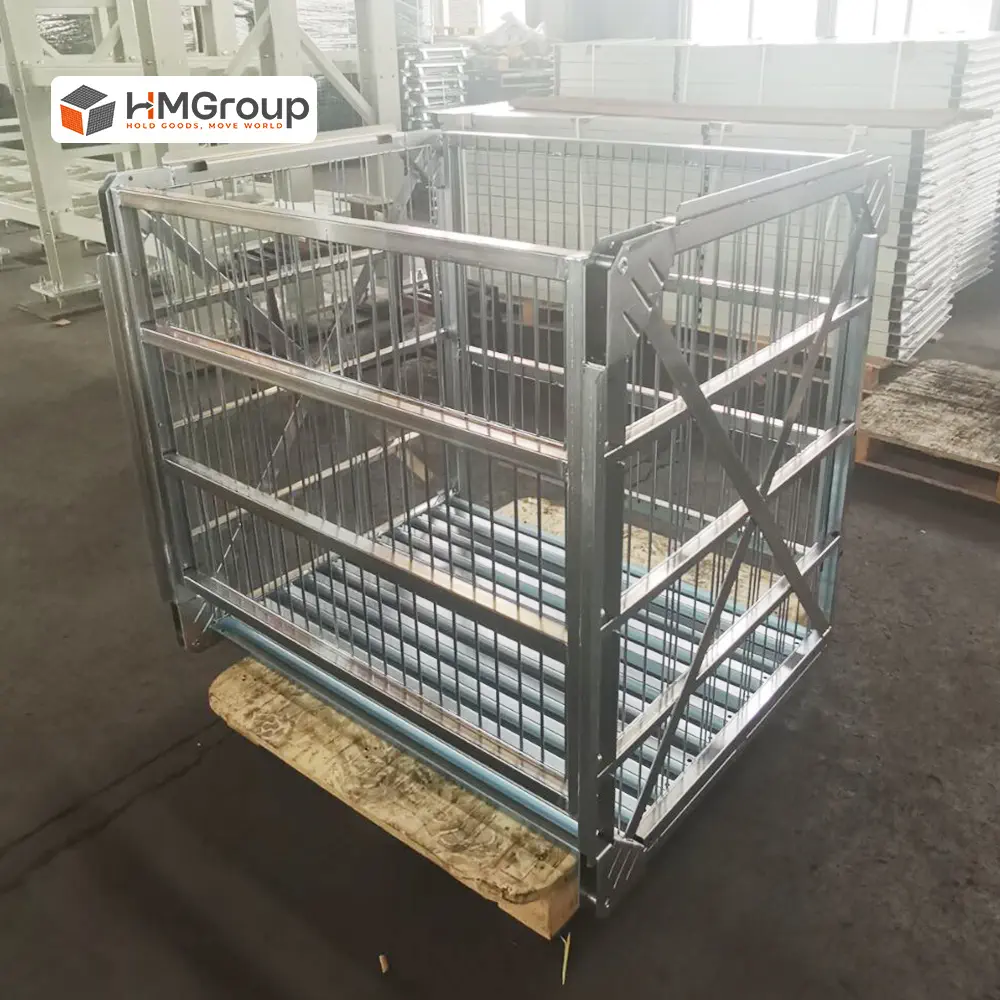

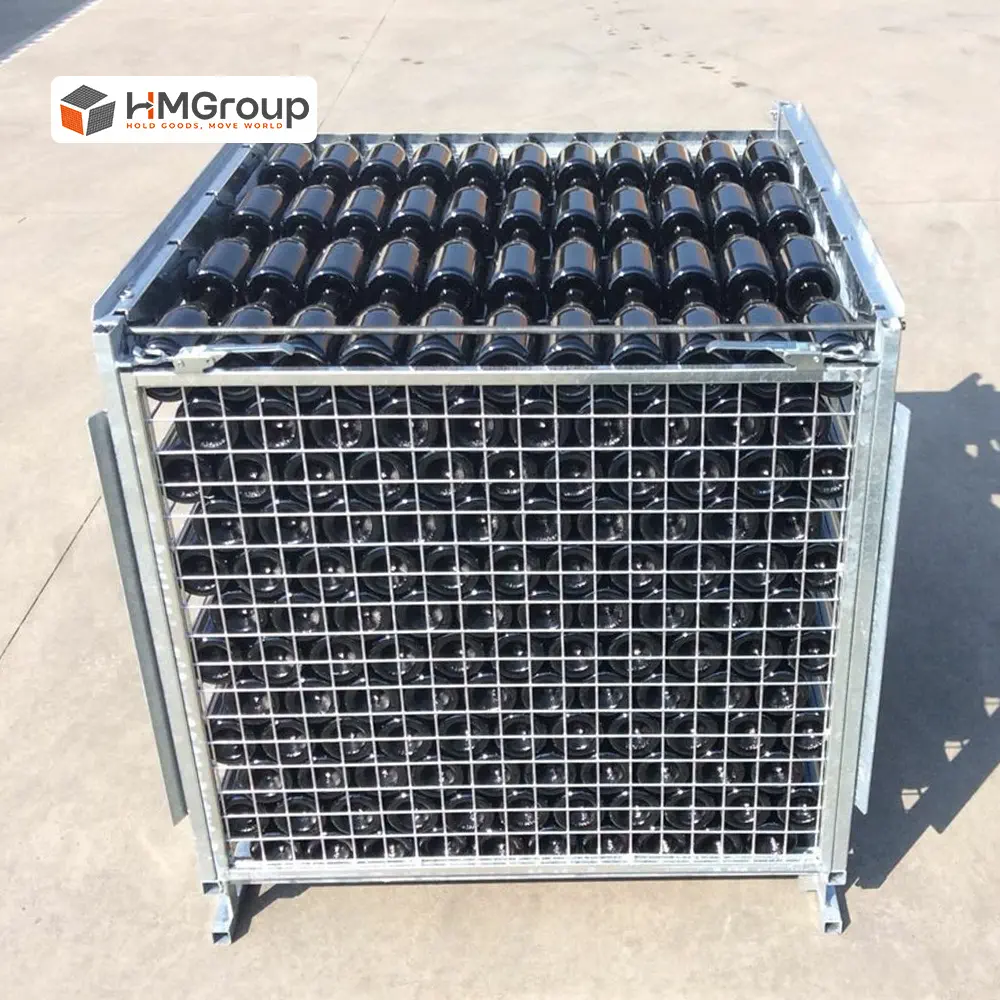

Designed for standard 750 ml wine bottles, this Bottle Riddling Cage supports automated riddling in compatible gyropalette equipment. The shaped steel slats at the base support and position the bottle necks, helping transfer load contact to the stronger bottle body. A detachable front door allows access for loading when containers are stacked. Two adjustable upper half-doors help hold bottles in position during the rotation cycle. The cage can also be folded flat for empty storage and return transport, helping reduce the space needed for empty units.

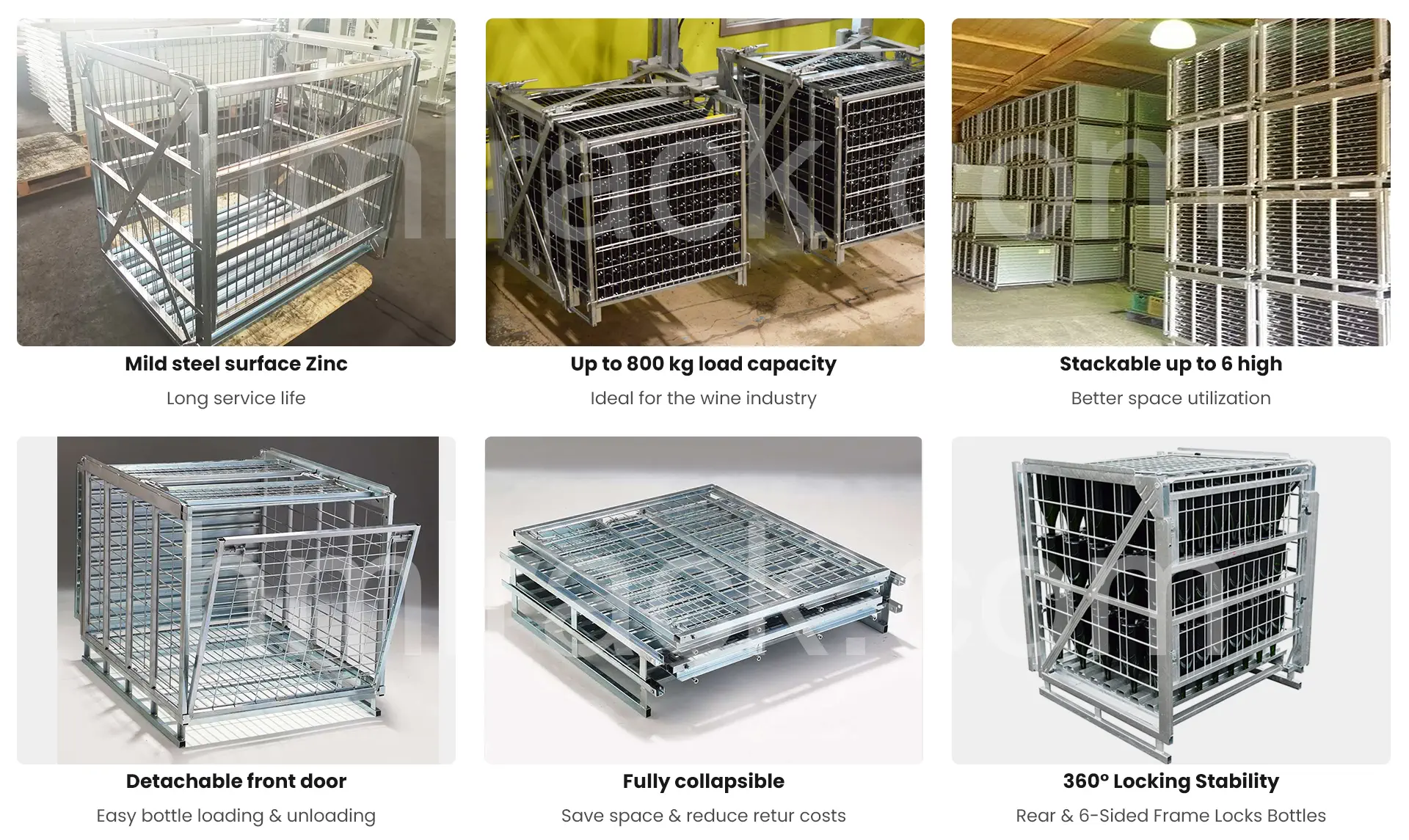

Advantages
- Designed to fit standard French gyropalette machines.
- Detachable front mesh provides access when cages are stacked.

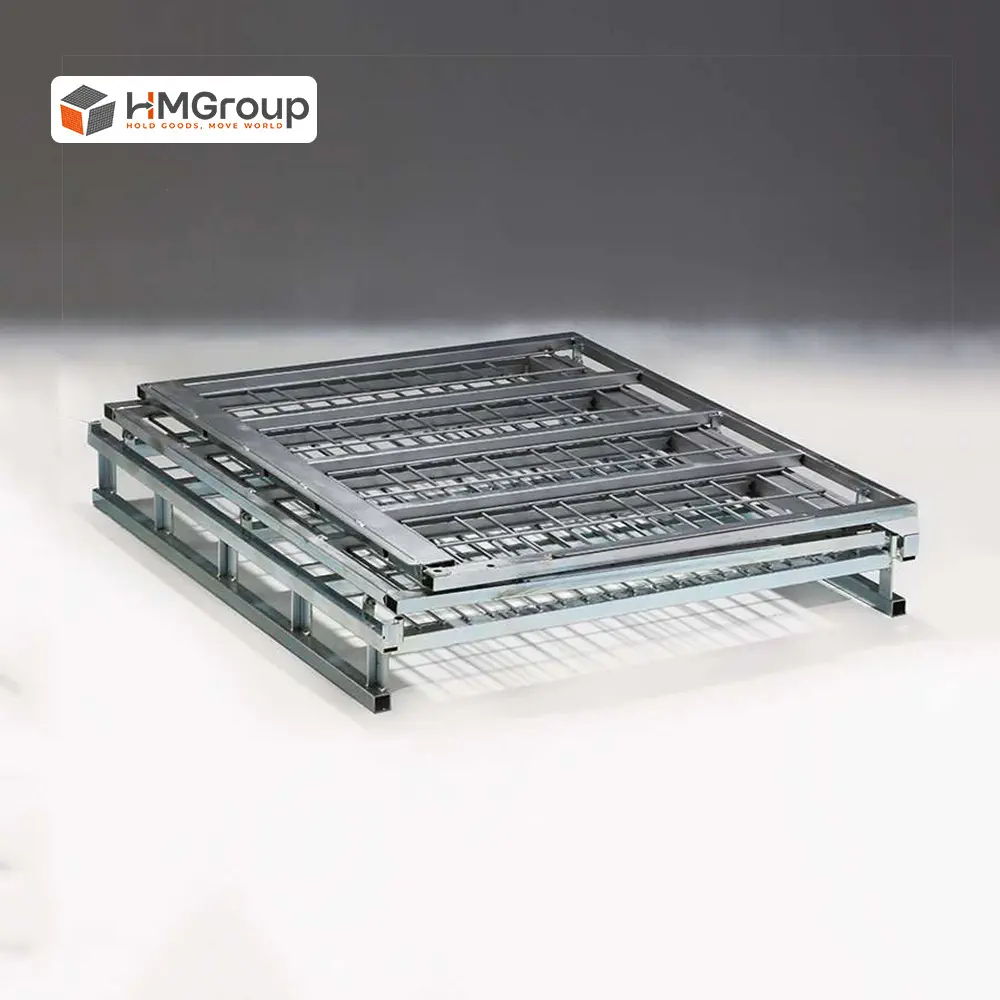

- Foldable structure supports compact empty storage and return transport.
- Heavy-duty frame supports vertical stacking under approved load and stacking conditions.

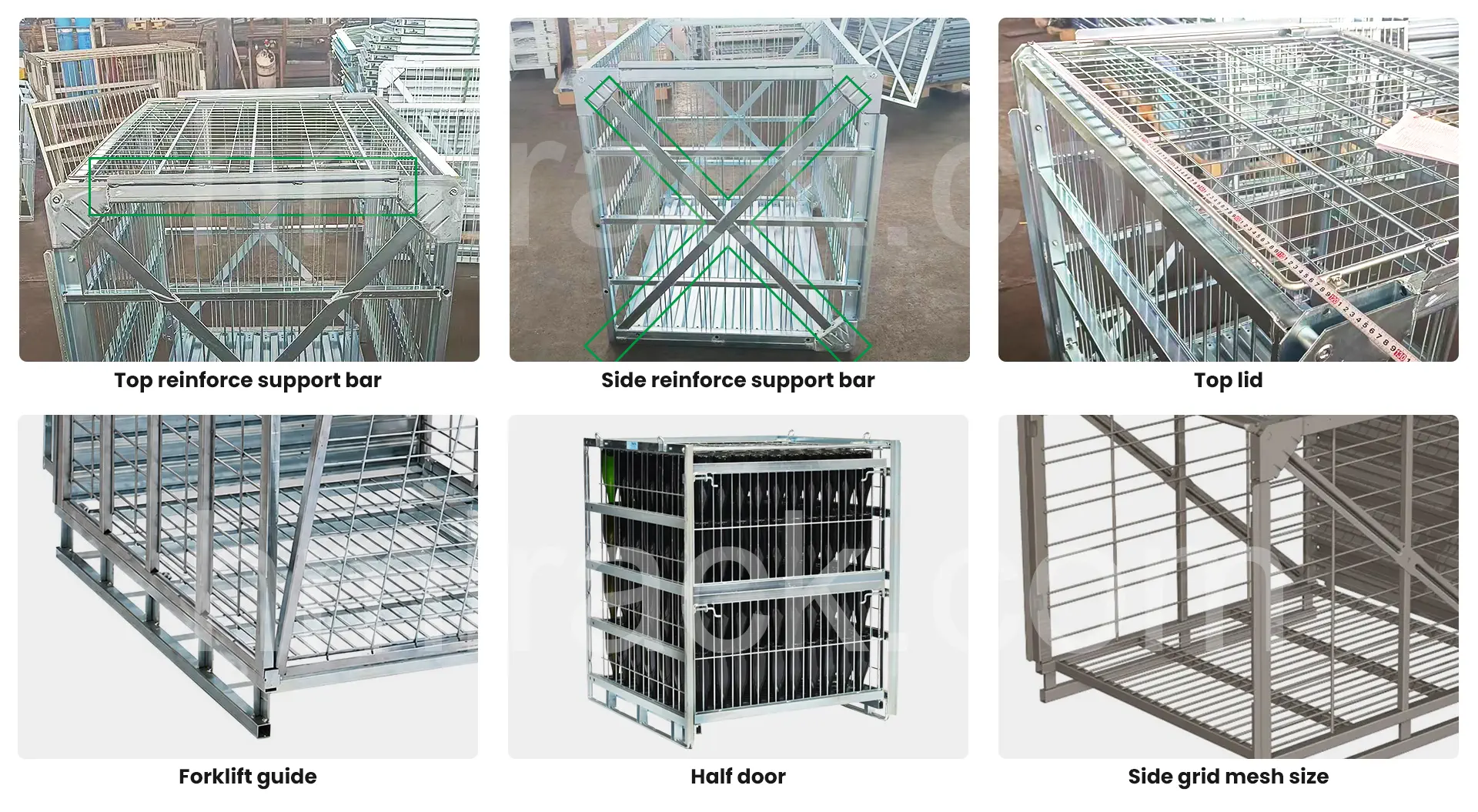

Products Customized
We provide practical custom options for each Bottle Riddling Cage to match facility requirements.
ID Plate: Metal identification plates can help cellar teams track fermentation batches and vintage years.
Top Lid Locks: Locking mechanisms help keep the upper covers closed during machine rotation.
Forklift Guides: Welded bottom channels guide forklift tines and help reduce corner impact in narrow cellar aisles.
Custom Surface Finishes: Zinc plating can be selected for humid cellar environments.

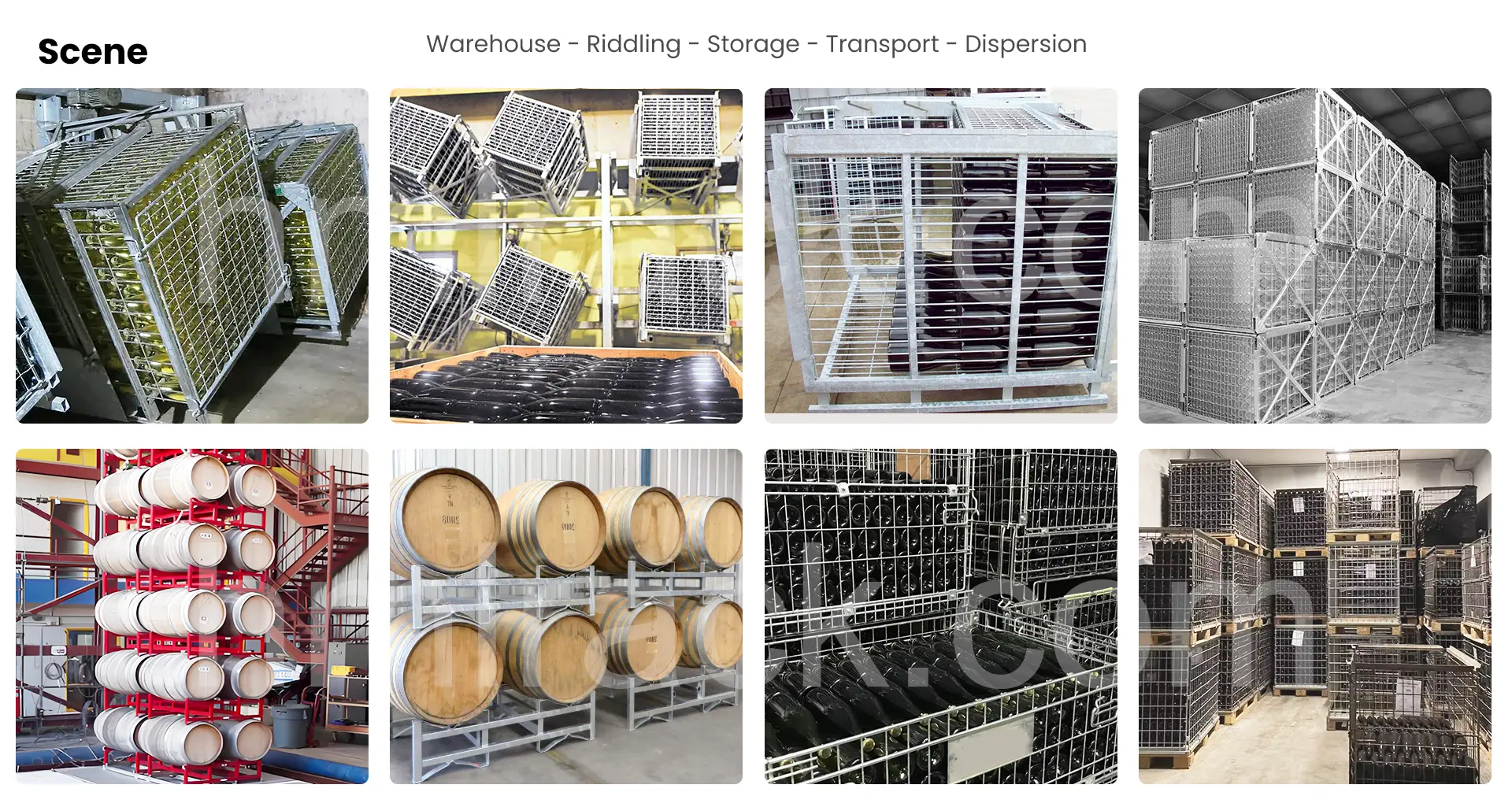

Application

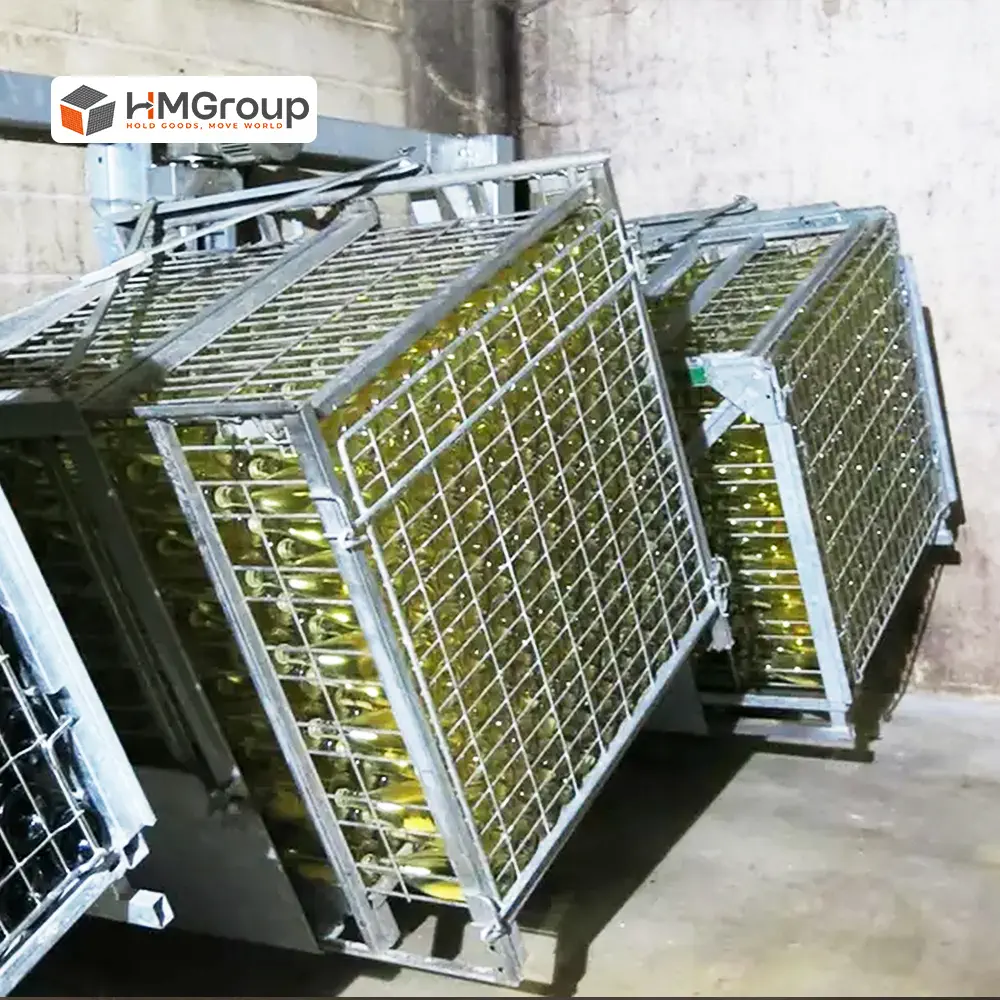

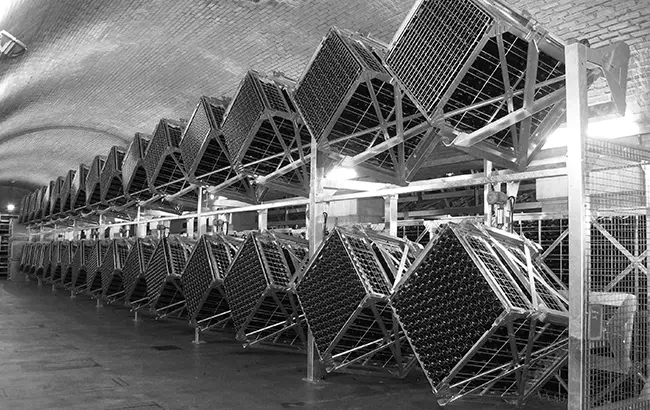

This Bottle Riddling Cage is used for standard sparkling wine production during secondary fermentation. After filling, workers load bottles into the cage for automated remuage cycles on compatible gyropalettes. After riddling, the same container can move to the ageing cellar for horizontal bottle storage. This reduces the need to transfer bottles between separate containers and helps keep stock organised from riddling through to disgorging.
Hot Tags: bottle riddling cage, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China

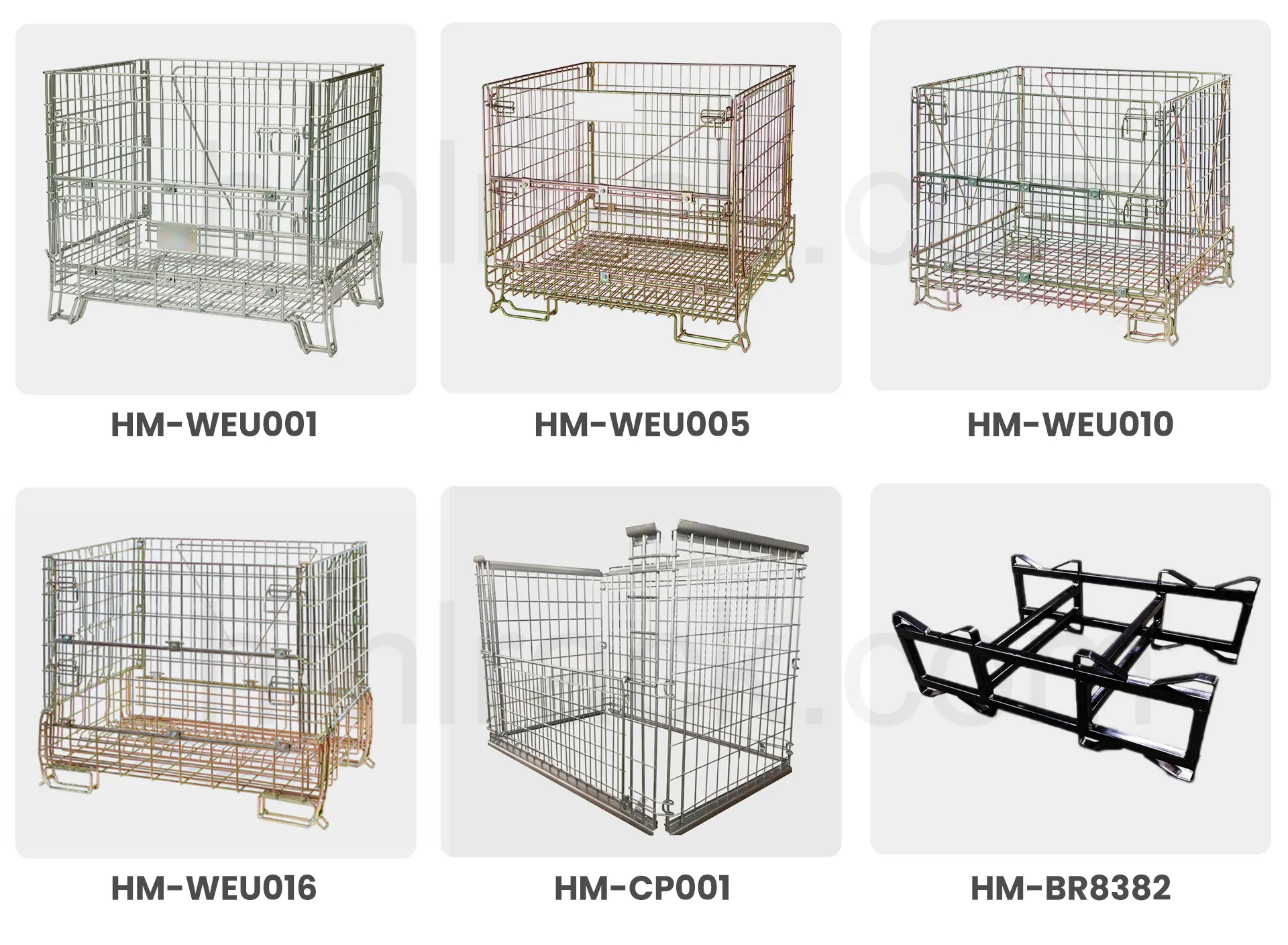

Similar Recommended
|
Model No. |
Exterior dimension |
Wire Gauge |
Dimension of Grid |
Loading capacity |
Loaded in 1x 40'HQ |
|
LxWxH (mm) |
mm |
mm |
kg |
sets |
|
|
HM-WEU001 |
1140x830x980 |
12-5.0 |
55x113 |
800 |
332 |
|
HM-WEU005 |
1200x920x1018 |
12-5.0 |
51x118 |
800 |
228 |
|
HM-WEU010 |
1183x948x991 |
11-5.0 |
62x115/60x120 |
800 |
253 |
|
HM-WEU016 |
1244x802x1054 |
12-5.0 |
54x118 |
800 |
168 |
|
HM-RC1210 |
1236x1030x1177 |
CSUTOM |
CSUTOM |
800 |
209 |
|
Material |
Mild steel Q235 |
||||
|
Available design |
Top lid/forklift guide/side reinforce support bar |
||||
|
Finish |
Zinc Galvanized, Hot-Dip Galvanized |
||||
|
Features |
1. 360° reversible design improves wine clarity and enhances taste. 2. Detachable front door allows easy bottle loading and unloading. 3. Fully collapsible structure saves space and reduces return costs. 4. Stackable up to six units high for better space utilization. |
||||
Every winery operates with unique layout limits and turning equipment. Beyond this standard Bottle Riddling Cage, we design diverse container structures to match varied bottle sizes, ceiling heights, and automated handling lines.
Video
This video shows the real production scene of HM Group factory.
With standardized workshops, complete production equipment and professional quality inspection system, we own strong manufacturing capability.
Our newly launched Bottle Riddling Cage benefits from our mature production system. We can provide stable quality, flexible customization and delivery to meet your bulk order demands.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support

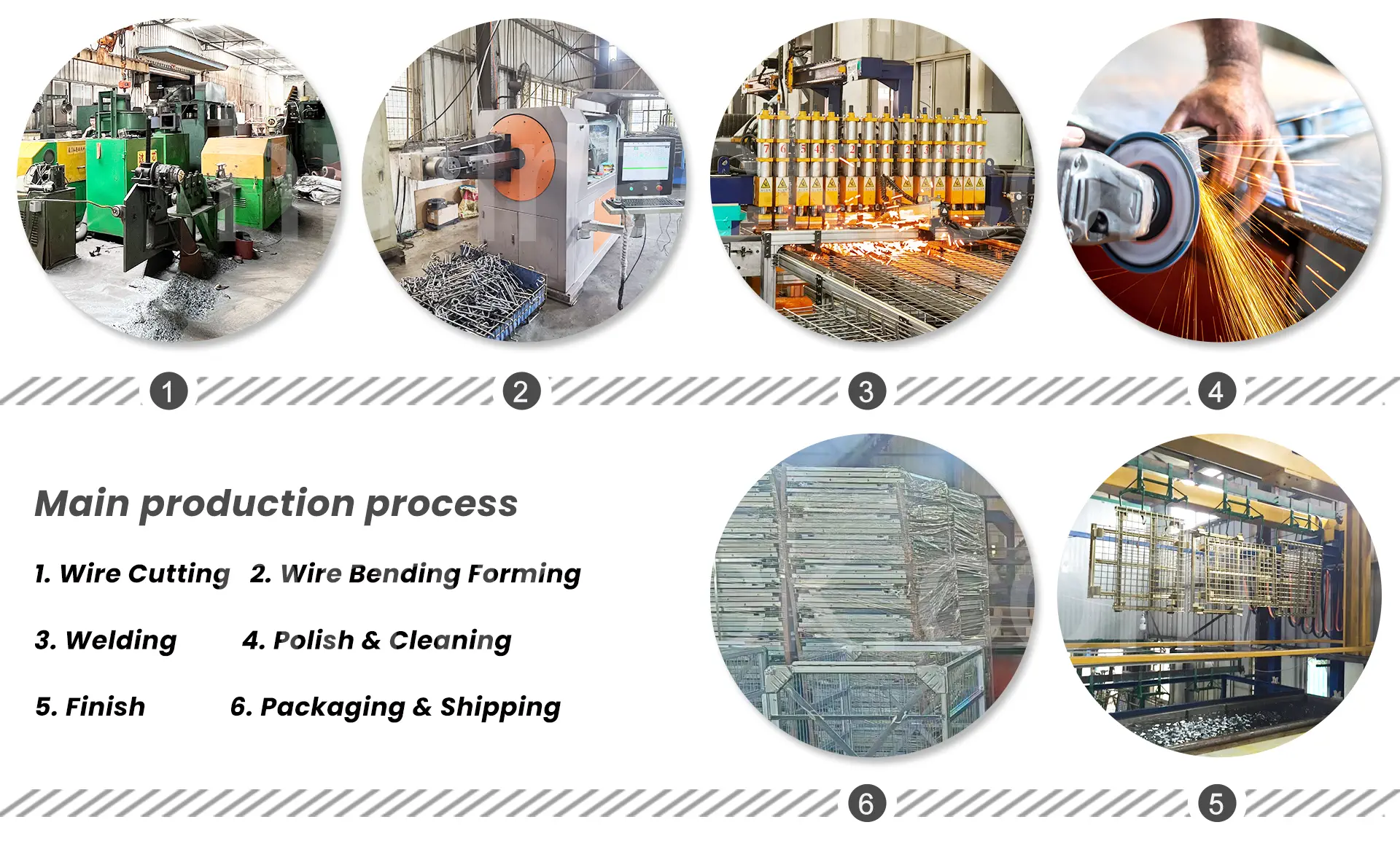

Production Process
Our factory uses CNC fibre laser cutting systems and automated mesh welding lines. We control steel tube cutting to help reduce sharp burrs and maintain consistent part dimensions. This process supports clean weld joints and stable frame construction across Bottle Riddling Cage production batches.

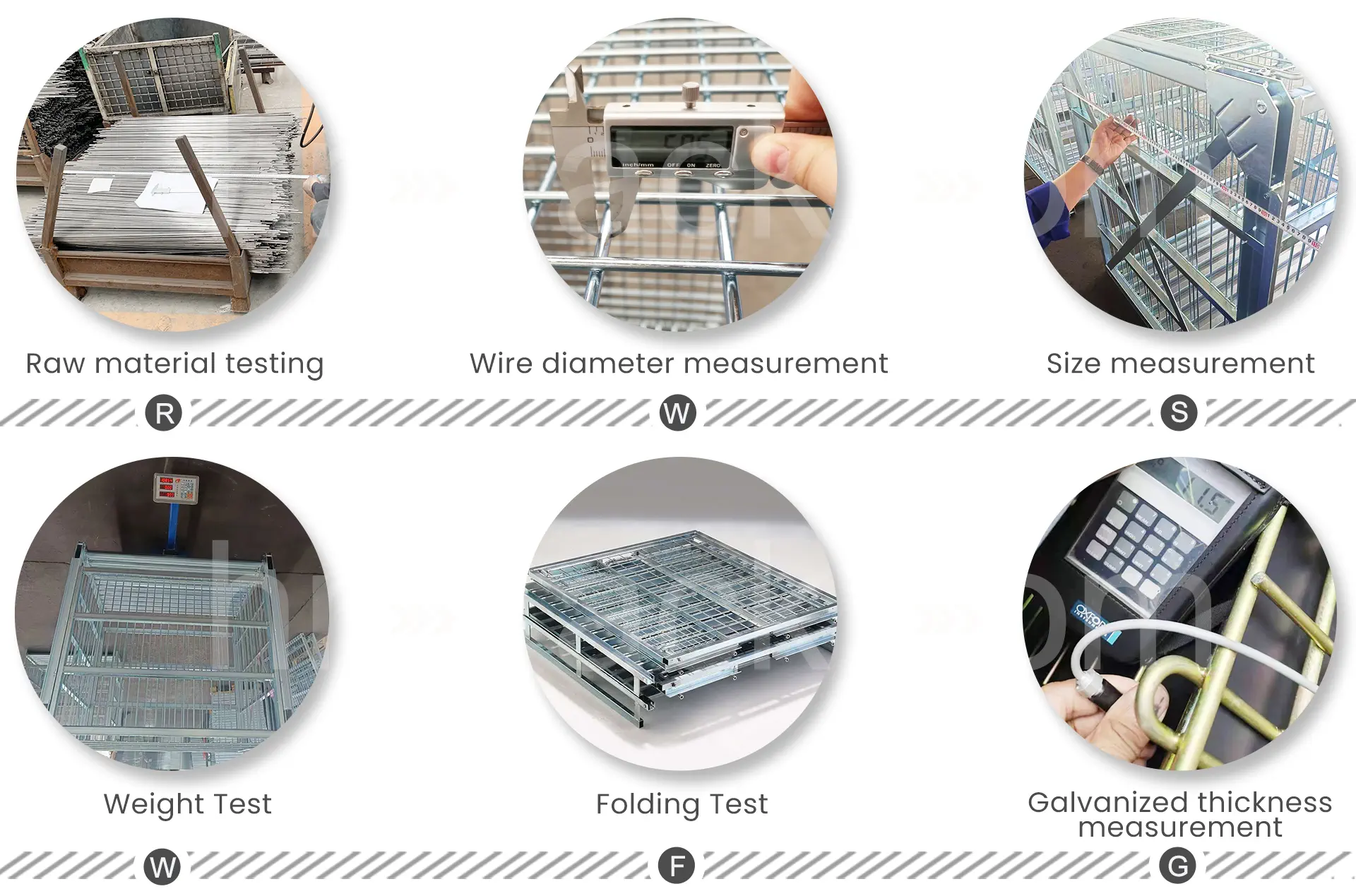

Quality Control
During final inspection, the quality team uses measuring tools to check outer frame dimensions and diagonal alignment. Corner angles are also checked to help ensure that each Bottle Riddling Cage fits the approved gyropalette cradle. Dimensional checks help reduce the risk of binding or tilting during repeated rotation cycles.

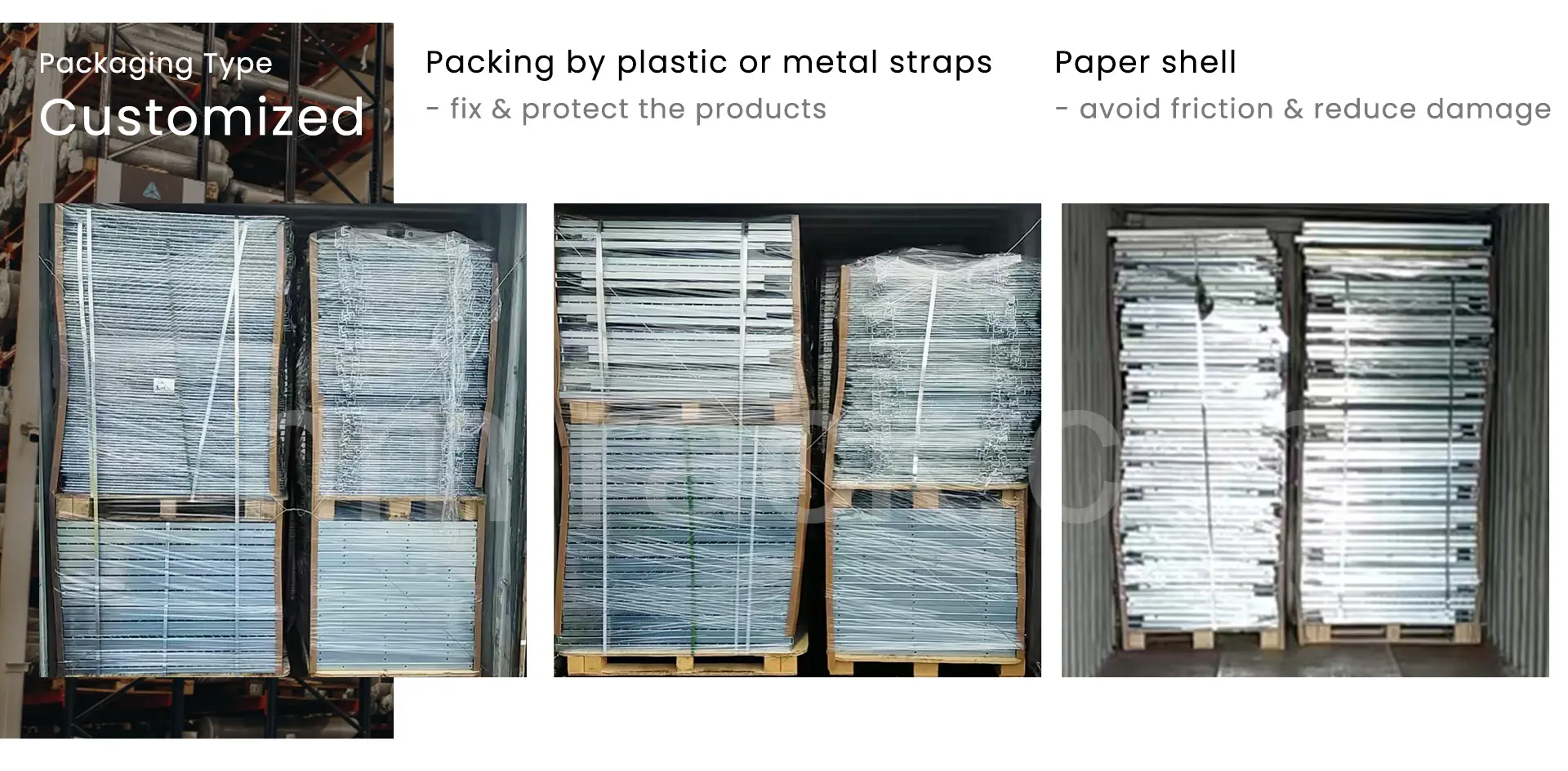

Packing and shipping
- Plastic banding+Stretch film wrapper, easy loading, and unloading with standard forklift truck or pallet jack.
- Certainly, you can also customize the way of packaging.
Certificate
Our commitment compliance with certifications including ISO, SGS inspection, BV test, APT test, and a patent certificate, ensuring the high standards for HM Group
What Customers Say
“This Bottle Riddling Cage fits our French gyro-pallets well. The folding feature also saves space during empty storage.”— Pierre D., Cellar Master, France
FAQ
Q: Can cellar workers open the front door while containers are stacked?
A: The front mesh can be detached while cages are stacked, subject to the approved site procedure and safe access conditions. This allows operators to access bottles without moving the full stack.
Q: How long does it take to fold the unit for empty storage?
A: Folding time depends on the model, site procedure, and operator training. The folding structure is designed to support compact empty storage without using separate hand tools where the approved model allows.
Q: What is the maximum stacking height in wine cellars?
A: The permitted stacking height depends on the approved cage model, bottle load, floor condition, handling method, and site rules. Where the approved specification allows six-tier stacking under a full 800 kg load, the corner posts transfer the stack load down through the frame.
