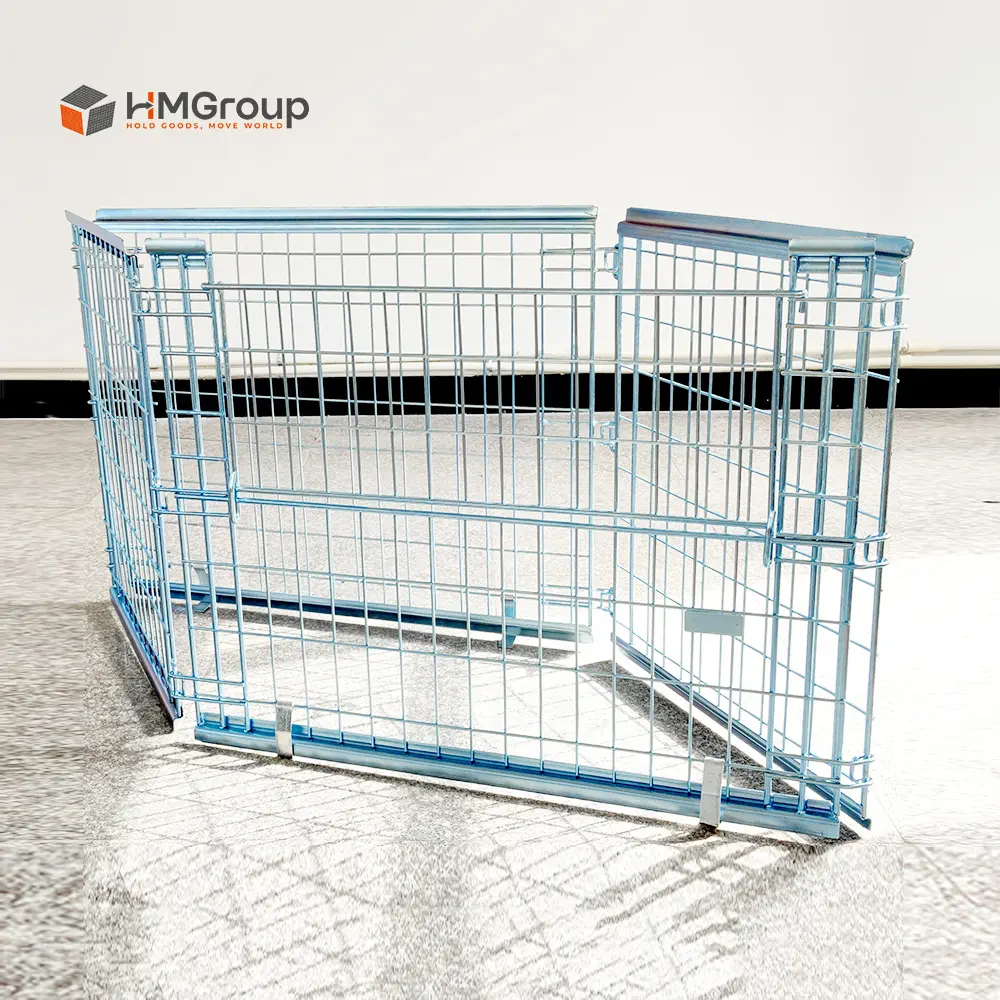

Galvanized Foldable Euro Cages Pallet
The series is a wire retention frame designed for standard 1200×800mm pallet bases. This galvanized foldable euro cages pallet contains goods during storage and handling, then folds down when the pallet is empty. The fold-down structure reduces the space required for empty frames, making it easier for warehouses and distribution centers to store or return the cages between handling cycles.
Model No.:HM-CP001
Wire Gauge:5-10 mm
Grid Size:60x103 mm
Loading Capacity:800 kg
Loaded in 1x40'GP:550 sets
Exterior Dim.:1200Lx800Wx1000H mm
Products Description
Galvanized Foldable Euro Cage Pallet
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 4 high
Surface customization: Zinc/hot dip galvanized/powder coating
Collapsible to save space
Grid Size: 60x103 mm
HM-CP001
Model No.
800 kg
Loading Capacity
1200×800×1000 mm
Exterior dimension
550 sets
Loaded in 1X40'GP

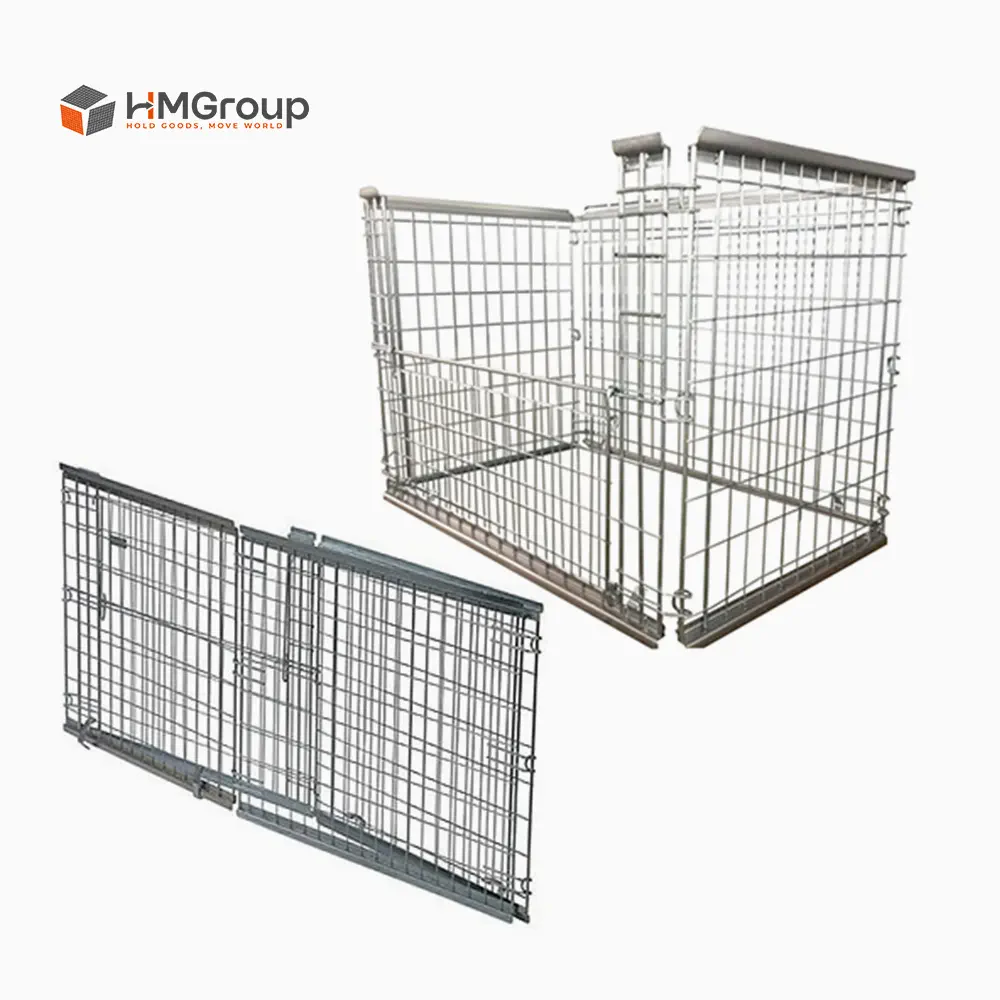

The galvanized foldable euro cages pallet is used both when loading the pallet and when storing or returning the empty frame. During storage and transport, the wire frame helps contain bulk or irregular cargo and reduce movement on the pallet. Once the goods have been removed, the empty frame can be folded down for storage or return transport. The fold-down structure allows the four wire side sections to collapse onto the pallet base. The folded frames can then be stacked together, taking up considerably less space than fully assembled units. For regional logistics networks, this high folding ratio is a practical feature for return transport, as a single vehicle can carry up to 30 folded units on a single pallet. The reusable frame can reduce the need for disposable wrapping in suitable applications and can be handled with suitable forklifts and warehouse equipment during storage and movement.
Advantages
Surface Treatment: The galvanized coating provides corrosion protection for the steel structure, including the welded areas, when the unit is used in suitable damp storage or transport environments.
Integrated Corner Brackets: Specialized steel brackets secure the wire frame to the pallet edges to prevent sliding during forklift handling.
Products Customized
Different mesh openings, heights, and internal dividers are available to meet specific cargo requirements. For this galvanized foldable euro cages pallet, the frame height can be adjusted according to the required storage clearance, vehicle loading height, or cargo dimensions. Adding a horizontal divider allows for the separation of different SKUs within the same pallet footprint. Surface treatments such as zinc galvanized or hot-dip galvanizing can be selected according to the storage environment, including dry warehouses, humid areas, and refrigerated facilities. These customization options allow the equipment to adapt to the weight and dimensions of the products being handled.
Application

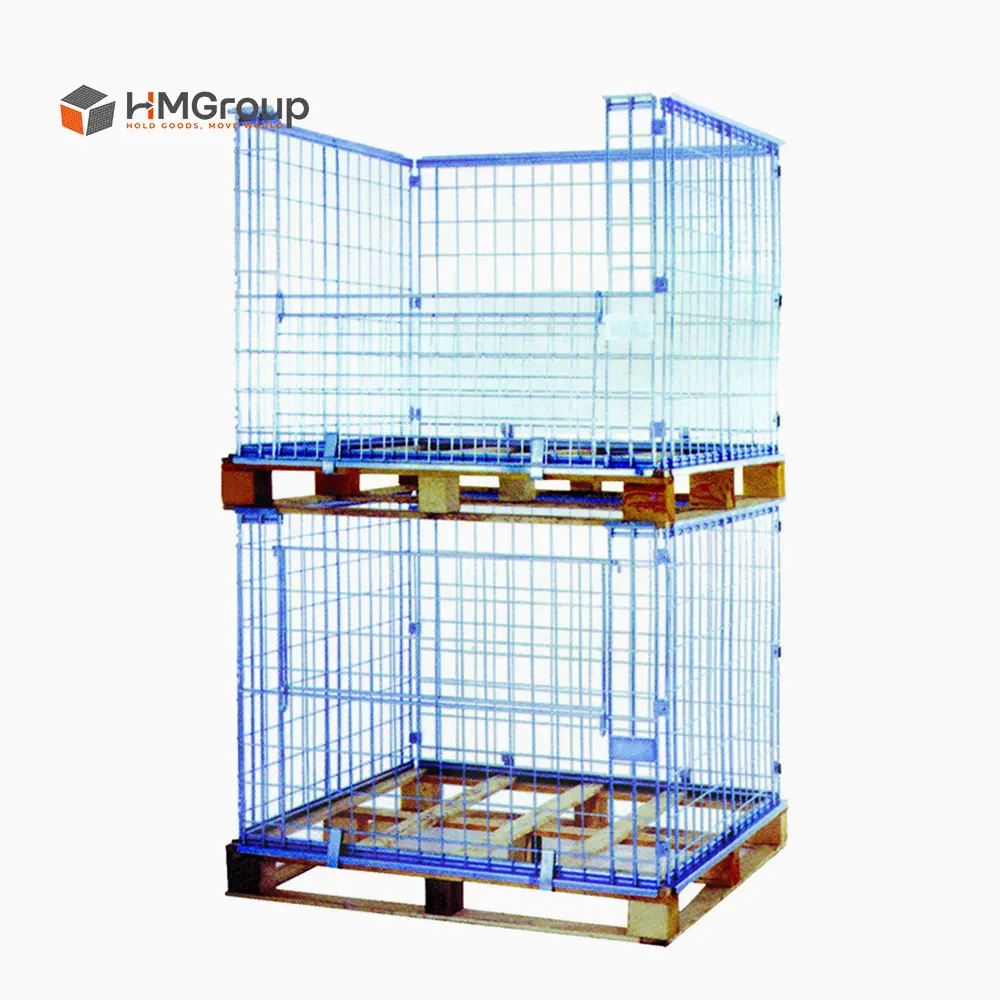

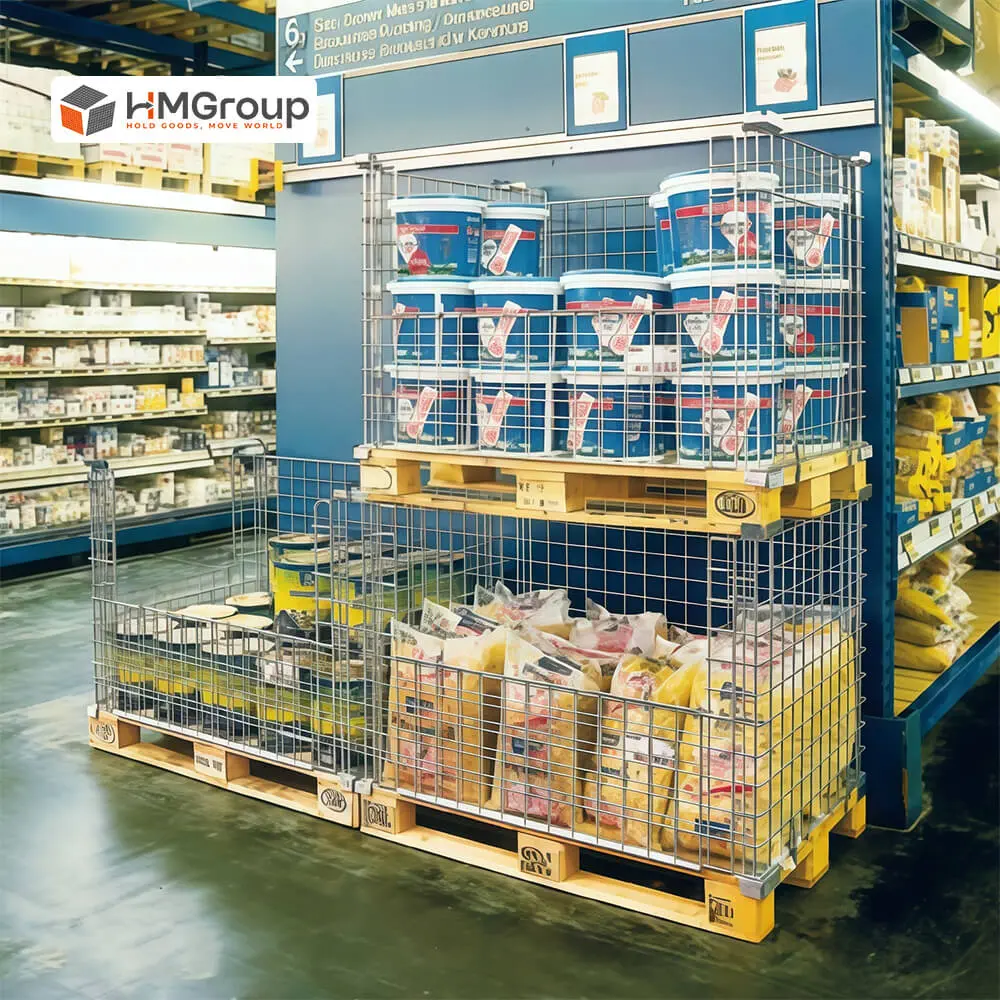

The operation begins with a loaded 1200×800mm Euro pallet. A metal cage pallet is then positioned around the pallet and secured through the corner brackets. The operator secures the galvanized foldable euro cages pallet by aligning the corner brackets with the pallet edges. Once the goods are contained, forklifts can stack the loaded units to use the vertical height of the warehouse, provided the loading conditions permit. Once the pallet has been emptied at the retail or distribution point, the operator releases the locking mechanism and folds the wire side sections inward. These flat frames are then stacked on top of each other on a single pallet base. The folded frames can then be moved by pallet truck and loaded for return transport. This compact arrangement reduces the vehicle space required for empty equipment and can make return transport more practical.
Hot Tags: galvanized foldable euro cages pallet, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior Dimension |
Wire Guage |
Grid Size |
Loading Capacity |
Loaded in 1x40'GP |
|
LxWxH(mm) |
mm |
mm |
kg |
sets |
|
| HM-CP001 |
1200x800x1000 |
5-10 |
60x103 |
800 |
550 |
| HM-CP002 |
1200x1000x1450 |
5-10 |
65x103 |
800 |
300 |
| HM-CP003 |
1200x1000x1200 |
5-10 |
65x103 |
800 |
500 |
| HM-CP004 |
1200x1000x1200 |
5-10 |
65x103 |
800 |
500 |
| HM-CP005 |
1200x800x1000 |
5-10 |
65x103 |
800 |
480 |
|
Remark |
Customized or OEM support |
||||
Similar Specification
For operations that involve smaller quantities of goods or require more direct access, we offer half-height versions of the galvanized foldable euro cages pallet. While the standard style is used for bulk storage, these shorter frames allow for faster manual picking in busy distribution hubs.
|
Model No. |
Exterior Dimension |
Tube Dimension |
Wire Guage |
Grid Size |
Loaded in 1x40'HQ |
|
LxWxH(mm) |
mm |
mm |
mm |
sets |
|
| HM-CP-AU003 |
1170x1170x780 |
19x1.6&25x1.6 |
4 |
75x50 |
365 |
| HM-CP-AU007 |
1170x1170x500 |
19x1.6&25x1.6 |
4 |
75x50 |
488 |
| HM-CP-AU008 |
1170x1170x300 |
19x1.6&25x1.6 |
4 |
75x50 |
612 |
| HM-CP-EU009 |
1200x800x1200 |
21x1.5 |
4 |
100x100 |
261 |
| HM-CP-AU010 |
1170x1170x1200 |
19x1.6&25x1.6 |
4 |
75x50 |
200 |
| HM-CP-EU011 |
1200x800x800 |
21x1.5 |
4 |
100x100 |
440 |
| HM-CP-AU012 |
1200x800x1000 |
22 |
4 |
100x100 |
378 |
Video
Designed for use with standard pallets, the galvanized foldable euro cages pallet shown in this video features a foldable frame and half-drop access gate for convenient loading and unloading. Watch how the cage is assembled and stacked before warehouse use, then contact us for available sizes and quotations.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
The wire structure is welded on automatic welding lines to maintain consistent frame dimensions and weld quality across every batch. This process helps maintain consistent weld quality and frame dimensions across production batches.
Quality Control
Each batch of the galvanized foldable euro cages pallet undergoes a folding cycle test and a vertical load check. We verify that the spiral hinges move freely and that the round-tube posts can support the required weight of a 4-high stack. This testing confirms that the unit maintains its shape and functionality after multiple handling cycles in the warehouse.
Packing and shipping
1. Prevent scattering in shipping - stretch film wrapped
2. Paper shells - edges are bundled up by paper shells
Certificate
Our commitment to compliance with certifications, including
ISO9001 Certificate No. CN24/00004786, This certificate is valid until 29 July 2027;
SGS Certificate No. CANWT00478167 inspection, Date of Inspection:23-Jan-2026;
BV test Report NO.: MIC-ASI2491658, Audit Date:2024-10-29;
APT test, and a patent certificate, ensures the high standards for HM Group
What Customers Say
"The folding design has significantly reduced the space we need for returning empty cages." — Joseph Bedok, Logistics Manager, European Distribution Group.
FAQ
Q: Is this galvanized foldable euro cages pallet compatible with standard warehouse racking?
A: Yes. The unit is designed around a standard 1200x800mm Euro pallet footprint. Compatibility with specific racking systems should be checked against the rack dimensions and the total height and weight of the loaded unit.
Q: Can I buy replacement parts like a single panel or a hinge?
A: Yes. We supply replacement components such as side panels, half-drop gates, and spiral hinges. This allows you to replace a damaged part to keep the frame in use instead of replacing the entire unit.
Q: How many folded units can be stacked for return transport?
A: Depending on the frame height and loading conditions, approximately 25 to 30 folded frames may be stacked on one pallet base.. This reduces the volume required for empty storage and helps lower the costs associated with the return transport of empty logistics equipment.
Q: Does the galvanized finish protect the welding joints?
A: Yes. The surface treatment is applied to protect the steel structure, including the welded areas, against corrosion. This helps prevent rust from forming at the joints, which is important for maintaining the structural strength of the wire cage over many years of use.
