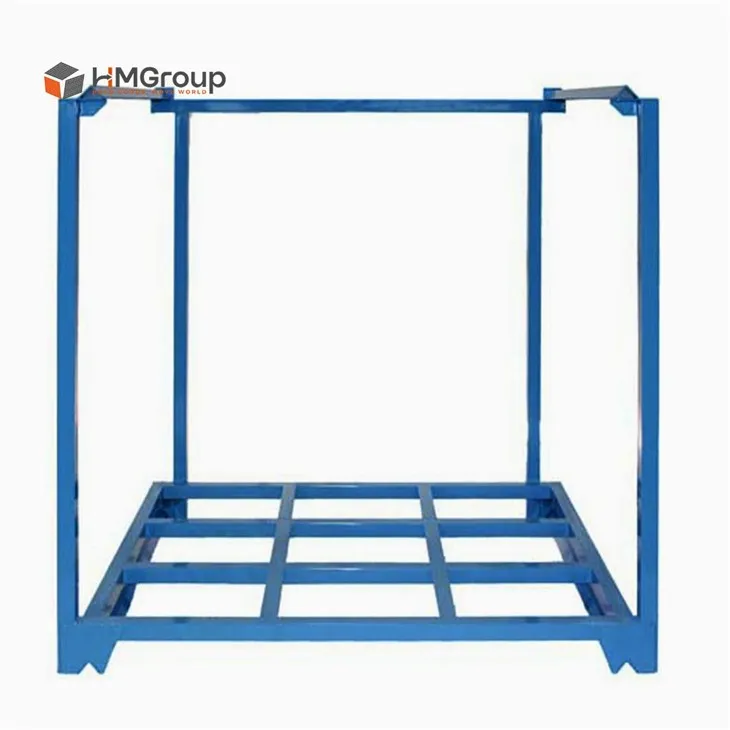

Portable Steel Nestainer
This portable steel nestainer is used for stacked storage of fertilizer bags, seed cartons, and agricultural materials in warehouse rows and loading areas. The square tube frame separates loaded pallet levels during forklift movement and truck loading. Mild steel Q235 construction is suitable for repeated warehouse handling and seasonal agricultural storage.
Model No.: HM-N1302
Exterior Dimension: 1300L×1200W×1200H mm
Loading Capacity: 1000 kg
Stackability: 4 high
Finish: Power Coating
Loading 1x40'HQ: 160 sets
Products Description
Portable Steel Nestainer
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 4 open
Powder coating (customized)

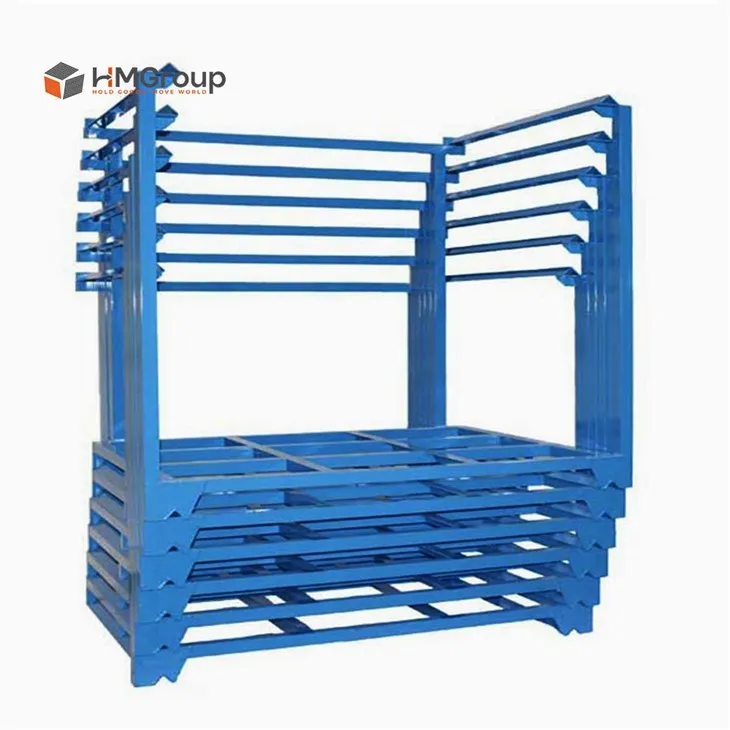

Nestable to save space
Safe and quakeproof
HM-N1302
Model No.
1000 kg
Loading Capacity
1300x1200x1200mm
Exterior dimension
160sets
Loaded in 1X40'HQ

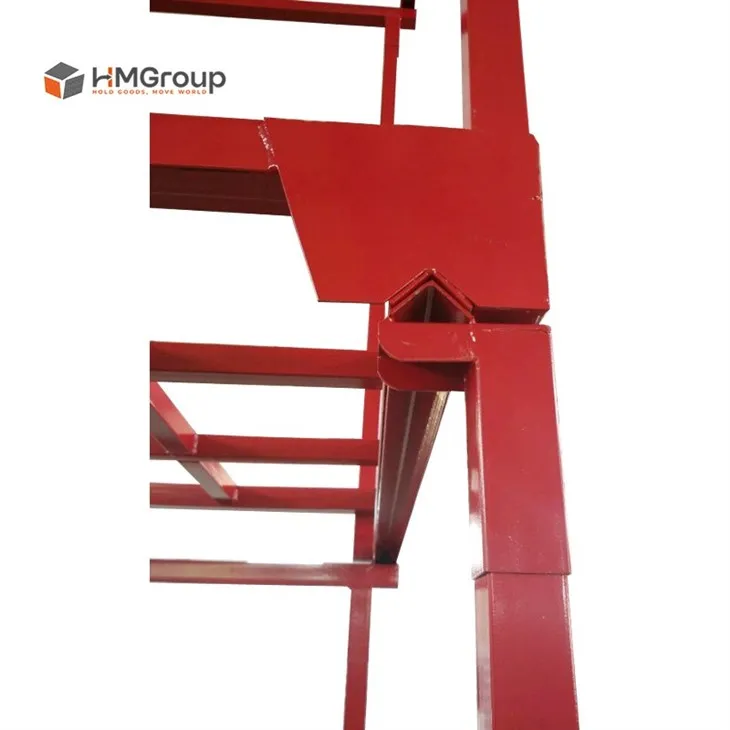

The welded square tube frame is manufactured from mild steel Q235 for pallet stacking and warehouse handling. Standard loading capacity is 1000 kg, with stack height adjusted according to pallet size and bagged material weight. Upper pallet loads remain separated from lower fertilizer bags and seed cartons during stacked storage. Powder coating is applied for warehouse use and repeated material contact. Four-side forklift entry supports pallet movement between storage rows and truck loading areas.
Advantages
- Keeps upper pallet loads off lower fertilizer bags
- Leave forklift entry open from four sides
- Support stacked pallet loading before shipment
- eparates seed cartons between upper and lower levels
- Used for seasonal pallet storage in agricultural warehouses
Products Customized
For fertilizer and seed storage, this portable steel nestainer is often produced with different inner heights and base dimensions based on pallet size and bag stacking height. Some warehouses use larger pallet loads for bulk fertilizer bags, while smaller units are used for packaged seed cartons.
Application

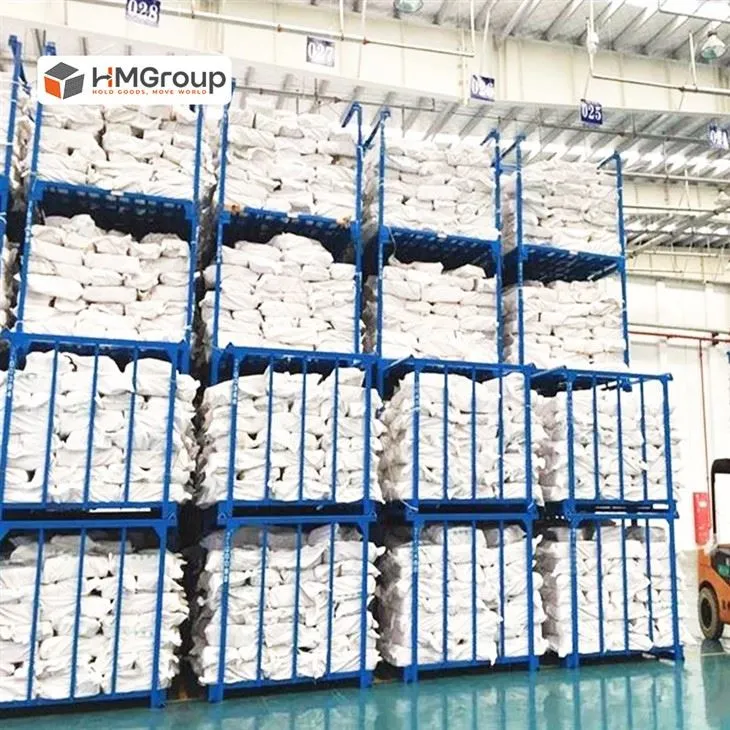

This portable steel nestainer is often placed in agricultural warehouses storing bagged fertilizer, packaged seeds, and palletized farm materials before regional distribution. Loaded pallets can be stacked multiple levels high during seasonal storage. Forklift operators move pallet loads between storage rows, loading lanes, and truck staging areas without direct pallet-on-pallet contact. The frame is also used in outdoor loading areas before shipment.
Hot Tags: portable steel nestainer, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior Dimension |
Interior Dimension |
Loading capacity |
Stackability |
Finish |
|
LxWxH(mm) |
LxWxH(mm) |
kg |
|||
|
HM-N1302 |
1300x1200x1200 |
1200x1150x1000 |
1000 |
4 |
Powder coating |
|
HM-N1304 |
1300x1200x1400 |
1200x1150x1200 |
1000 |
4 |
Powder coating |
|
HM-N1402 |
1400x1200x1200 |
1300x1150x1000 |
1000 |
4 |
Powder coating |
|
HM-N1404 |
1400x1200x1400 |
1300x1150x1200 |
1000 |
4 |
Powder coating |
|
HM-N1502 |
1500x1200x1200 |
1400x1150x1000 |
1000 |
4 |
Powder coating |
|
HM-N1504 |
1500x1200x1400 |
1400x1150x1200 |
1000 |
4 |
Powder coating |
|
HM-N1602 |
1600x1200x1200 |
1500x1150x1000 |
1000 |
4 |
Powder coating |
|
HM-N1604 |
1600x1200x1400 |
1500x1150x1200 |
1000 |
4 |
Powder coating |
|
Material |
Mild steel Q235 |
||||
|
Finish |
Powder coating |
||||
|
Available design |
Detachable/undetachable |
||||
|
Application area |
Textile industry, warehouse, logistics, tyre, auto industry, recycling, etc. |
||||
|
Remark |
Customized or OEM support |
||||
Similar Specification
This portable steel nestainer uses a square tube structure for stacked pallet storage and repeated warehouse handling. Detachable versions are used when empty frame storage becomes limited after unloading. Detachable units reduce empty storage space after unloading.
----Other Types For Storage Tire -------------------------------------------------------------------------------------------------------------
Video
A portable steel nestainer is tested before shipment to verify frame stability and stacking safety during warehouse use. This structure is suitable for temporary storage, relocation between warehouse zones, and repeated pallet handling. Send your inquiry for custom dimensions or OEM production.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
This portable steel nestainer is produced using fixture-based welding lines to maintain consistent square tube positioning across batch orders. Mild steel Q235 tubes are prepared according to frame size before welding starts. Production includes tube cutting, corner frame assembly, welding, powder coating, nesting inspection, and export packing.
Quality Control
Before packing, portable steel nestainer completes a forklift entry inspection. Fork channel width, entry height, and pallet lifting clearance are checked after welding and powder coating. This process confirms forklift clearance during pallet movement and truck loading operations.
Packing and shipping
- Fully Protection - edges are bundled up by paper shells
- Prevent scattering in shipping - plastic banding + Stretch film wrapped.
Certificate
HM Group maintains strict quality standards, supported by certifications from ISO, SGS, BV, and APT, along with patented technologies. These recognitions reflect the company’s commitment to reliable manufacturing processes, product quality, and continuous innovation. Through these verified standards, HM Group ensures that its products meet international requirements and deliver dependable performance across global markets.
What Customers Say
"We use this portable steel nestainer for fertilizer bags and seed pallets during seasonal storage. Forklift entry works well in our loading rows, and upper and lower pallet loads remain separated during truck loading and warehouse handling."------Yordan Marev
FAQ
Q: Is powder coating suitable for long-term tire storage?
A: Yes. Powder coating is commonly used for indoor warehouse storage handling tires and packaged automotive products.
Q: Can industrial nestainer dimensions be customized for truck tires?
A: Yes. Inner width, frame height, and pallet clearance can be adjusted according to tire size and pallet dimensions.
