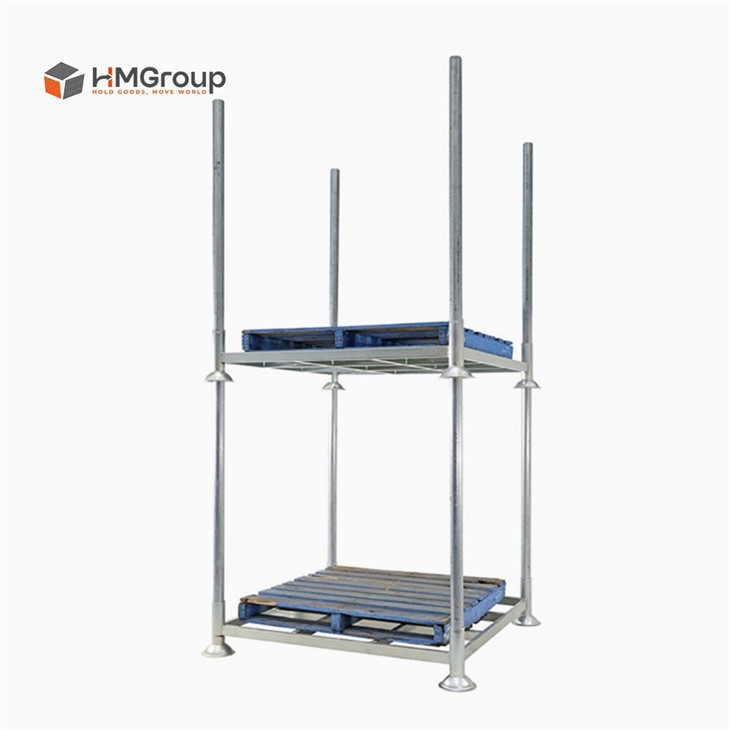

Warehouse Stacking Pallet Rack
Warehouse stacking pallet racks are used in warehouses that need to increase storage capacity without installing fixed racking systems. By stacking pallets vertically, it helps free up floor space, improve warehouse layout, and reduce product damage caused by floor stacking. The removable post structure also makes this product practical for warehouses managing seasonal inventory or return logistics.
Model No.: HM-PP001
PP01-Base: 1395x1060x310mm ( LxWxH )
PP01-Post: 1200x60x2.5 mm (LxWxH)
Finish: Zinc/hot dip galvanized/powder coating
Stackability: 4 high
Loading Capacity: 1500 kg
1 set = 1 base pallet + 4 post
Loading in 1x40'HQ container: 250 sets
Products Description
Warehouse Stacking Pallet Rack
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stackability: 4 high
Zinc/hot dip galvanized/powder coating(customized)
Fully detachable to save space
Warehouse, logistic, recycling, etc.
HM-PP001
Model No.
1500 kg
Loading Capacity
1395X1060X310(Base)
Exterior Dimension
250 sets
Loaded in 1X40'HQ
Built with Q235 mild steel and a reinforced base frame, the rack supports routine pallet handling and warehouse stacking operations. As a heavy duty industrial storage rack, each unit has a loading capacity of 1500 kg and can be stacked 4 high under proper operating conditions. Surface options include powder coating and galvanizing for corrosion resistance, making this warehouse stacking pallet rack suitable for humid warehouses and cold room storage. Four-way forklift access also improves daily handling speed.
Advantages
- Prevents goods from being crushed or compressed during floor stacking

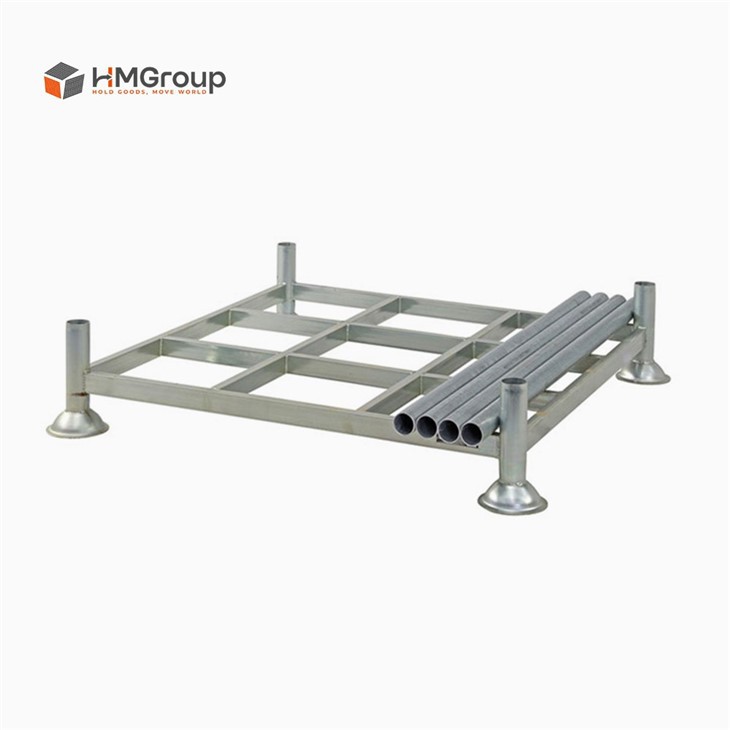

- Removable posts lower empty return transport costs
- Four-way forklift access improves warehouse movement efficiency
- Supports safer pallet storage in cold room and warehouse environments
Products Customized
For cold room projects, the most common customization for a warehouse stacking pallet rack is base size adjustment. Different warehouses use different pallet systems, so rack dimensions can be modified to fit European pallets, UK pallets, or oversized cartons. As a heavy duty steel plate rack, the base width, depth, and post height can all be adjusted according to warehouse layout and stacking requirements. Forklift entry positions can also be customised for narrow-aisle operations. This makes the steel stackable rack easier to integrate into existing warehouse systems.
Application

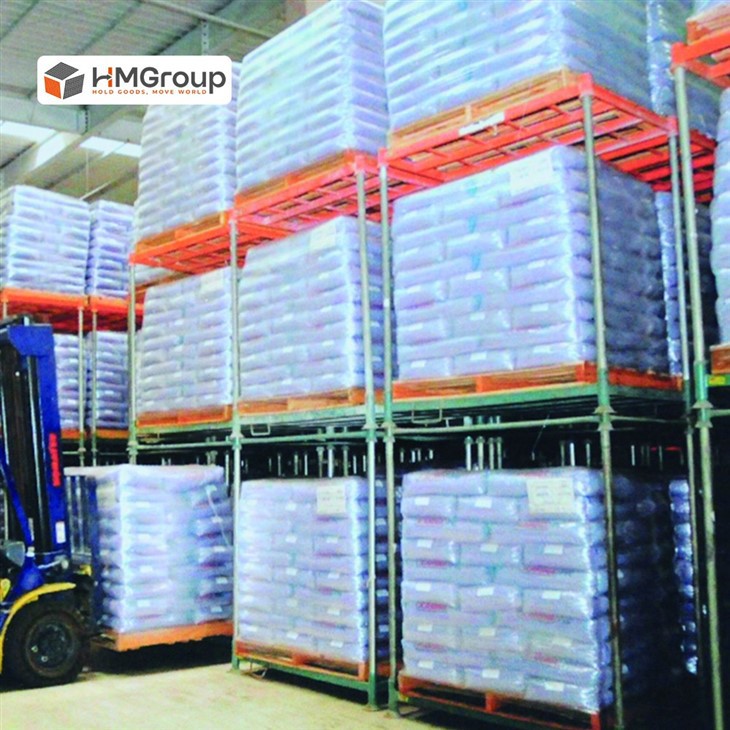

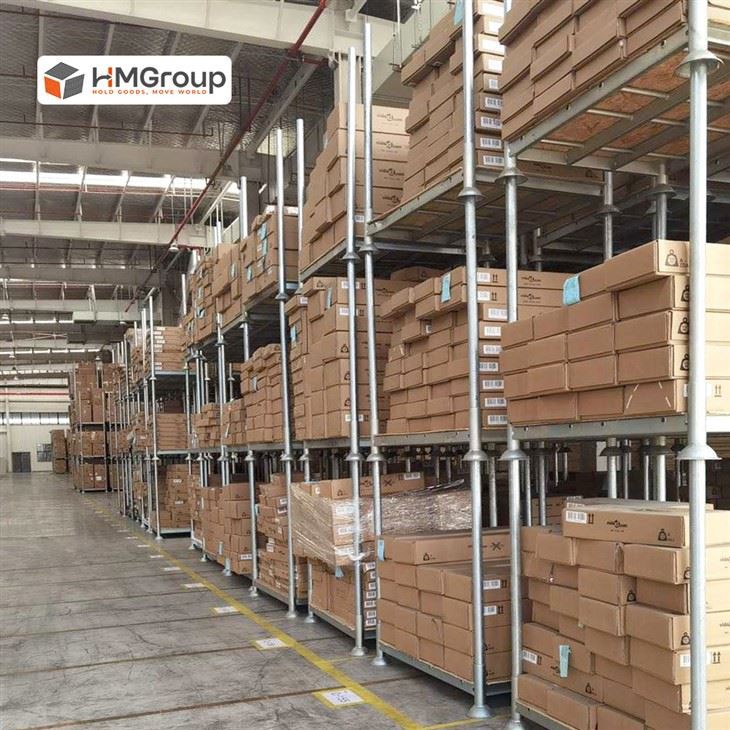

In many cold storage facilities, floor space is always limited and storage turnover is high. This warehouse stacking pallet rack is commonly used to store frozen food cartons, beverage pallets, and packaging materials while keeping forklift aisles clear. As a durable storage steel pallet rack, it allows warehouse teams to organize stock vertically instead of spreading pallets across the floor. Forklift operators can access the rack from four directions, which speeds up loading and unloading.
Hot Tags: warehouse stacking pallet rack, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Similar Recommended
| Model No. | Exterior Dimension | Loading Capacity | Finish | Loaded in 1x40'HQ |
| LxWxH(mm) | kg | sets | ||
| HM-PP001-Base | 1395x1060x310 | 1500 |
Zinc |
250 |
| HM-PP001-Post | 1200x60x2.5 |
Zinc |
1000 | |
| HM-PP002-Base | 1875x1060x310 | 2000 |
Zinc |
150 |
| HM-PP002-Post | 1200x60x2.5 |
Zinc |
600 | |
| HM-PP004-Base | 1545x1050x310 | 1000 |
Powder coating |
250 |
| HM-PP004-Post | 1500x60x2.5 |
Zinc |
1000 | |
| HM-PP005-Base | 1200x1000x310 | 1500 |
Zinc |
265 |
| HM-PP005-Post | 2000x60x2.5 |
Zinc |
1060 | |
| HM-PP006-Base | 950x950x310 | 1000 |
Zinc |
160 |
| HM-PP006-Post | 1200x60x2.5 |
Zinc |
640 | |
| Material | Mild steel Q235 | |||
| Finish | Powder coating/Hot-dip galvanized/Zinc | |||
| Application area | Warehouse, logistic, recycling, etc. | |||

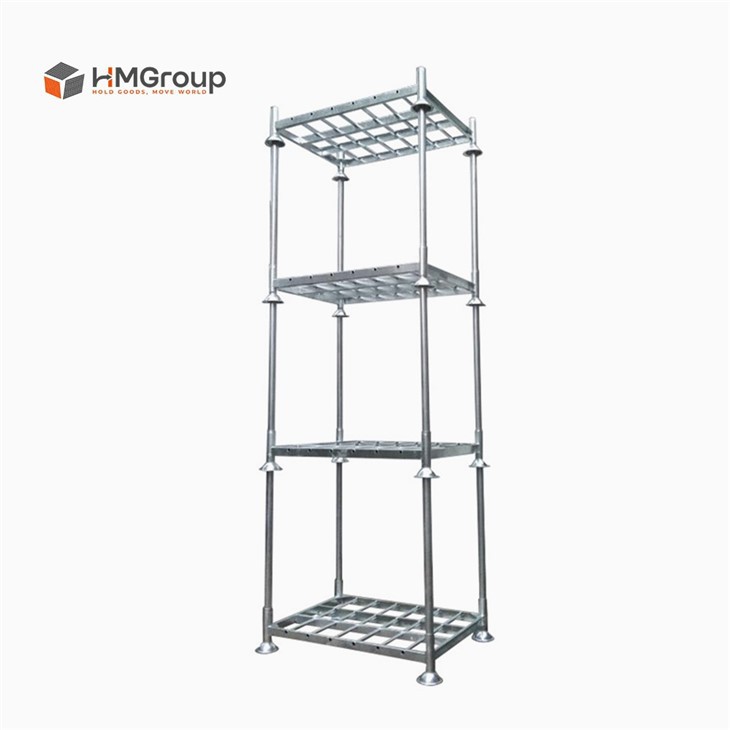

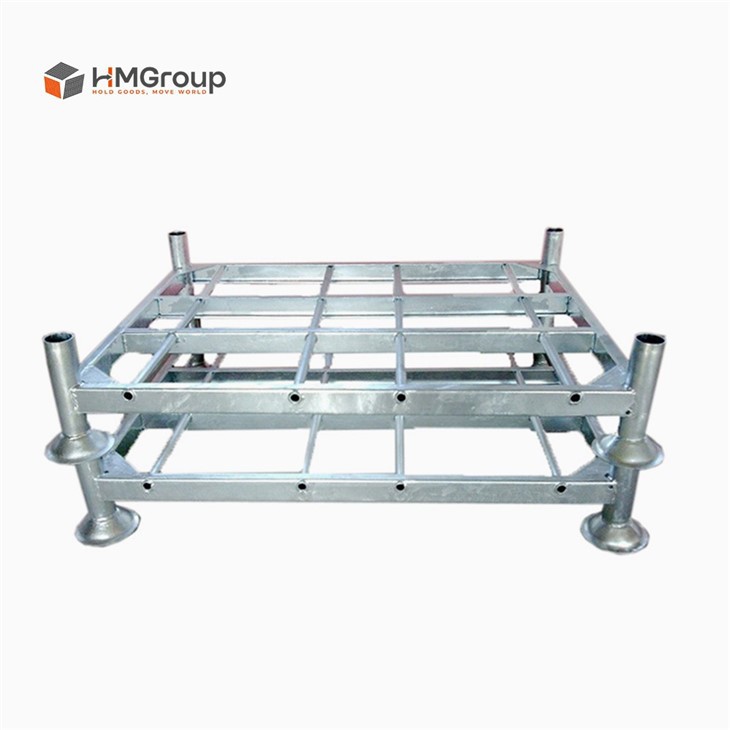

More Warehouse Stacking Pallet Rack Models Available
Different warehouse scenarios require different storage solutions. Explore multiple warehouse stacking pallet rack designs for various load capacities, dimensions, and stacking requirements.
Video
Check out how we test the load capacity of our HM Group stacking racks to ensure they handle your heaviest inventory with ease. Made from high-strength tubular steel, these warehouse stacking pallet racks can stack up to 4 units high, maximizing your vertical storage safely. Send us an inquiry today for a detailed catalog and pricing!
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Production of each warehouse stacking pallet rack is managed through automated welding lines to maintain stable output and consistent structural quality. The factory keeps regular stock of mild steel Q235, which helps reduce raw material lead times and supports faster production scheduling. Standard models can move into production quickly, while custom projects are reviewed by engineering teams before fabrication.
Quality Control
Before shipment, every batch of warehouse stacking pallet rack products goes through a full-load stacking test. Loaded racks are stacked under rated pressure to verify frame stability and check whether deformation occurs under long-term stacking conditions. This testing is especially important for customers purchasing durable storage steel pallet racks for warehouse and cold room use, where vertical load stability directly affects storage safety.
Packing and shipping
- 4 up support tube - fix & protect
- Plastic film - fix & protect, against moisture & rust
- Steel pallet base - good loading support, avoid collapse
- Steel straps - avoid breaking
Certificate
Our commitment to compliance with certifications, including ISO, SGS inspection, BV test, APT test, and a patent certificate, ensures the high standards for HM Group
What Customers Say
“We use these racks for frozen product storage, and the stacking stability is reliable during daily forklift handling. “----------JACOB
FAQ
Q: Can this product be used in a cold room?
A: Yes. It is available with galvanized or powder coated surface treatment, both suitable for cold storage and humid environments.
Q: Is the rack difficult to assemble?
A: No. The posts are detachable and can be installed manually within seconds.
Q: What material is used?
A: It is manufactured from mild steel Q235, which provides stable load performance for warehouse stacking applications.
Q: What is MOQ?
A: Standard models usually start from 50 units.
