Manurack Rack
Here comes a highly durable and strong manurack rack that will shape your warehouse in an efficient way. We have both single mobilrack and double mobilrack in this category. Both of them are highly useful.
Model No.: HM-PP002
Finish: Hot dip zinc
Quantities: 150 sets
Total Container: 1x40'HQ
Loading Capacity: 2000 kg
Exterior Dimension: 1875L×1060W×310H mm
The chassis of this manurack rack has a special design of four forklift channels, which is more convenient for forklifts to insert, so that the warehouse steel racks can move faster during transportation. Improve work efficiency.
When the product is not in use, it can be quickly disassembled to save storage space. This feature of stacking enables the industrial steel rack to make better use of the space in the sky and maximize the use of the warehouse space.

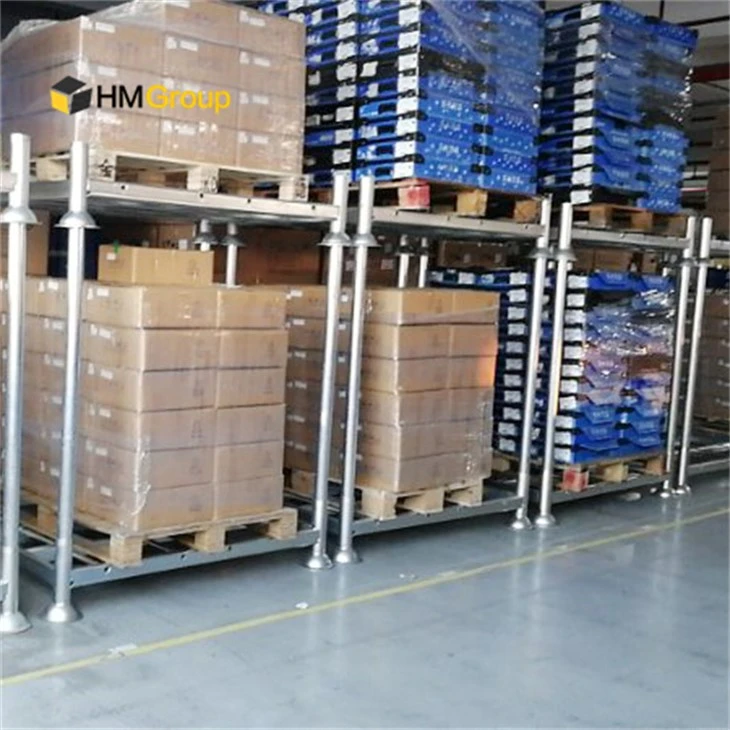

Application of galvanized steel rack
Warehouse, agriculture industry, storage food, fabric roll storage etc.
Hot Tags: manurack rack, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China, nursery rack, Stack pallet, palletainers, kayak storage rack, stackable pallet racks, Steel Pallet
Product Specification
|
Model No. |
Exterior Dimension |
Loading Capacity |
Finish |
Quantities |
Total container |
|
LxWxH(mm) |
kg |
|
sets |
||
|
PP002-Base |
1875x1060x310 |
2000 |
Zinc |
150 |
1x40'HQ |
|
PP002-Post |
1200x60x2.5 |
Zinc |
600 |
||
|
Material |
Mild steel Q235 |
||||
|
Customized order |
Rich experience in OEM,ODM |
||||
Product Features
1.This Post Pallet rack is fully galvanized for complete corrosion resistance
2.Post Pallet base is constructed from super strong steel
3.Demounted, easy to assemble
Make your material handling easier with heavy-duty castor wheels and forklift guides. These wheels let you move the manurack rack by hand-no forklift needed. The built-in guides still let forklifts assist when needed. This setup is perfect for flexible warehouse use, where space is tight or movement is frequent. Just note: castor wheels mean the pallet won't stack, but it's a win for mobility.
Watch this quick video to see a full assembly of the post pallet from start to finish. We’ll show you how easy it is to assemble and stack, plus close-ups from every angle. Whether you’re new to material handling or need a better storage solution, this video gives you the full picture.
QA&QC
Huamao's QC team will have serious inspections from the raw material to products final loading.
Packing and shipping
1.Plastic banding with wooden pallet
2.Stretch film wrapped
What Customers Say
FAQ
Q: The post you write is 1200mm. Is this a standard pipe, who we just can cut shorter if we don't need it so high?
-Total length of one post is 6.0mm, you can cut it to your demands, So there is no problem.
Q: What thickness is the floor? Is the floor also galvanized? How do you fasten the floor?
The thickness of floor: 1.5mm, and the floor is hot dip-galvanized.we can fixed the floor on the base, with rivets or screws. See attached the pics.
Q: Is it no problem for us to stable these pallets many times on top of each other? Take it on and off, on and off and so
-There is no problem. Lifespan: About 3-5 years with proper handling.
Q: Is the pallet strong enough to be moved when 3 items is stabled up on each other with our paper box inside it? Or do we have to move one and one?
-If moved 3 items is stack up on each other, and load paper box is loaded inside it; we think the post will be shorter than 1.0 meter, and skilled drivers move slowly.
Q: You just welding on some hooks under and out of the steel pipe, as I show you on the drawing and picture. then we can use strop over the items on the pallet.
-About hocks, it is okay, and that's smart way.
Q: How big this hocks shall be?
-The size of hocks:30W*40H(mm)
Q: What width is forklift channel?
- Forklift: 212W*25D*90H(mm)
