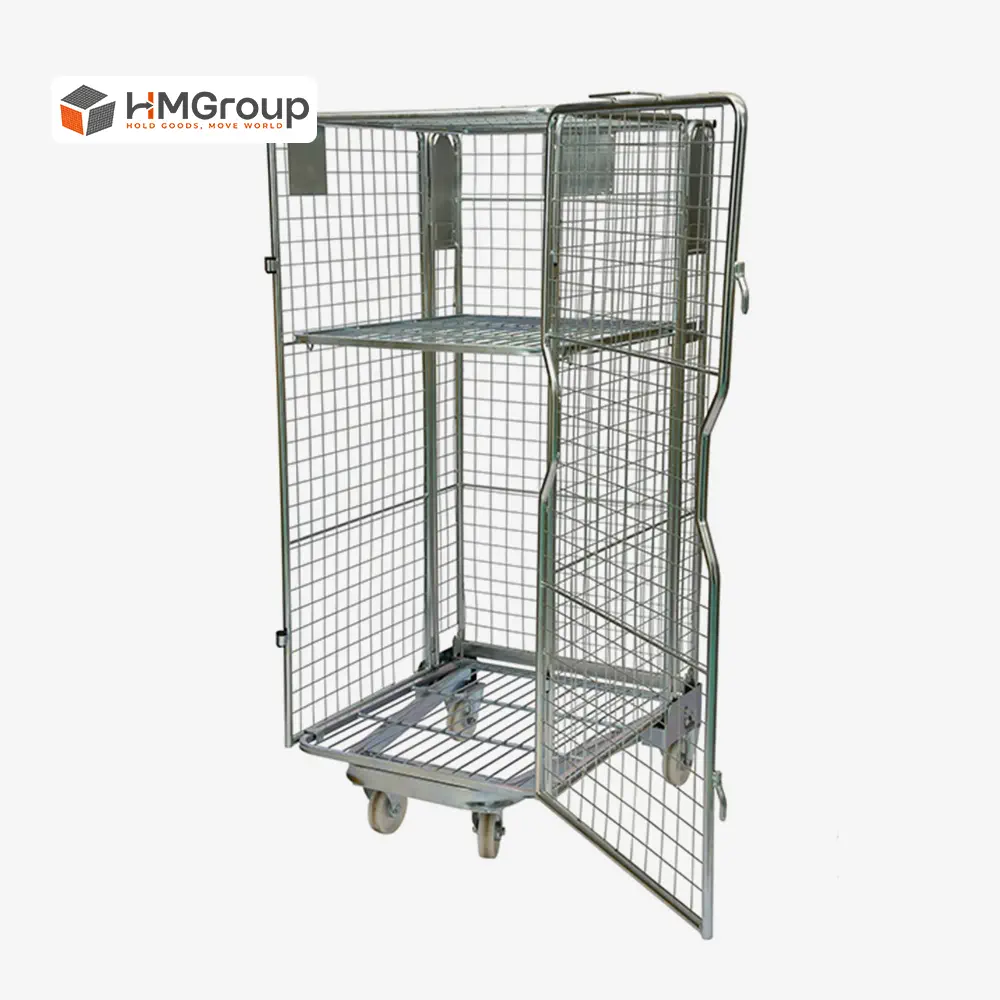

Nesting Laundry Roll Cage Trolley
The nesting laundry roll cage trolley saves storage and transport space with its nestable design and 500kg load capacity, ideal for the laundry industry.
Model No.: HM-RC009
Tube Diameter: Φ19x1.8 mm
Wire Diameter: Φ8&Φ 6 mm
Loading Capacity: 500 kg
Loaded in 1x40'HQ: 320 sets
Exterior Dimension: 732L×845W×1680H mm
Products Description
Nesting Laundry Roll Cage Trolley
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Nesting: More efficient transportation
Zinc/hot dip galvanized/powder coating(customized)
Fully collapsible to save space
Warehouse, logistic, recycling, etc.
HM-RC009
Model No.
500 kg
Loading Capacity
732×845×1680 mm
Exterior dimension
320 sets
Loaded in 1X40'HQ
The nesting laundry roll cage trolley offers space-saving benefits in storage and transport due to its nestable design. When not in use, they can be nested into one another, freeing up valuable warehouse space and reducing the overall footprint. This feature also helps minimize transportation costs, as more trolley can be transported within the same space. The warehouse laundry trolley roller design ensures smooth mobility, with two fixed and two swivel wheels can easily control the moving direction and stop waiting. Its strong, mild steel construction and loading capacity of 500kg make it well-suited for the laundry industry, ensuring it can handle heavy textiles and garments without compromising stability.
Operation Modes
Space-Saving Nesting Design: When empty, simply fold the base up and nest multiple HM-RC009 units into each other. This "A-frame" nesting capability reduces storage footprint by over 70%, allowing you to fit 320 units in a single 40'HQ container for cost-effective return logistics.
Advantages
- Easy assemble: Easy to assemble, efficient and worry-free.
- Durability: Made of mild steel Q235 material, which is durable and prolongs its service life.
- Steel frame with wire mesh in-fill
- Bright zinc plate finish
Corrosion Resistance for Damp Environments: The bright zinc finish is tested to withstand the high humidity levels of commercial laundries, preventing rust during the transport of damp linens. Certified 500kg Loading: Each HM-RC009 is built with a reinforced base and high-quality ball-bearing swivel wheels to ensure stable movement even at maximum 500kg capacity.
Application
Laundry Logistics & Sorting: Specifically designed for industrial laundries, hospitals, and hotels. Perfect for sorting clean linens from soiled textiles, facilitating bulk transport between washing zones and storage rooms. Its design prevents items from falling during transport, reducing the risk of product damage. They are easy to move, allowing staff to quickly replenish shelves, saving restocking time. When not in use, it can be folded and stored, not taking up much space, helping to better manage space in crowded warehouses.
Hot Tags: nesting laundry roll cage trolley, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Product Information
|
Model No. |
Exterior Dimension |
Tube Diameter |
Wire Diameter |
Loading Capacity |
Loaded in 1x40'HQ |
|
LxWxH(mm) |
mm |
mm |
kg |
sets |
|
|
HM-RC009 |
732x845x1680 |
Φ19x1.8 |
Φ8&Φ 6 |
500 |
320 |
|
Material |
Mild steel Q235 |
||||
|
Available design |
1.Optional extra gates, removable shelf |
||||
|
Finish |
Zinc/ Powder coating/ Hot dip galvanized |
||||
|
Remark |
Customized or OEM support |
||||
Product Specification
When it comes to customization, nesting laundry roll cage trolley can be fitted with wheels made from materials like nylon or PP (polypropylene), which offer smooth operation and longevity. The addition of ball bearings in these wheels ensures minimal friction, further enhancing performance. Customizing the wheels with or without brakes also offers greater control during operation; brakes provide extra safety when stationary, while non-brake options allow for quicker and easier movement in busy environments.
|
Model No. |
Exterior Dimension |
Loading Capacity |
Loaded in 1x40'HQ |
|
LxWxH(mm) |
kg |
sets |
|
| HM-RC-LT003 | 792x702x1845 | 500 | 380 |
| HM-RC-LT005 | 500×800×1789 | 500 | 440 |
| HM-RC-LT006 | 600×800×1789 |
500 |
400 |
| HM-RC-LT007 | 600×800×1789 |
500 |
380 |
| HM-RC-LT008 | 700×800×1789 |
500 |
400 |
| HM-RC-LT009 | 678×804×1713 |
500 |
400 |
Video
Nesting laundry roll cage trolley is built to be flexible! Watch the video to discover how you can tailor it to specific requirements, including various customizable features to make it work well for your operations.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
We pursue efficient production processes. We have large equipment such as 16 material cutting machines, 48 equipment compressors and 39 welding machine arms to ensure the rapid production of suitable nesting laundry roll cage trolley and the quality of the products. In addition, HM team of experts is committed to meeting the needs of customers. You can trust us to provide you with excellent service at any time.
Quality Control
We take the time to measure the thickness of the galvanizing on our hospital laundry trolley. This is important because the galvanizing protects them from rusting. Checking that the thickness of the protective layer meets our quality standards helps the product last the life we promise, ensuring it can withstand frequent use in wet environments.
Packing and shipping
Plastic banding with steel pallet
Stretch film wrapped
The wheels are individually packed in cartons.
Certificate
Our commitment to compliance with certifications, including
ISO9001 Certificate No. CN24/00004786, This certificate is valid until 29 July 2027;
SGS Certificate No. CANWT00478167 inspection, Date of Inspection:23-Jan-2026;
BV test Report NO.: MIC-ASI2491658, Audit Date:2024-10-29;
APT test, and a patent certificate, ensures the high standards for HM Group
What Customers Say
"Our company has been purchasing roll cage trolley from this group for years and we have never been disappointed. The quality of their products is outstanding and their customer service is always top notch. We will continue to do business with them for years to come."-------Nargiz Azizova
FAQ
Q: What materials are they made from?
A: They are typically made from durable mild steel materials such as Q235 metal, ensuring they can withstand heavy duty and frequent use.
Q: How do I clean and maintain?
A: Regular cleaning with mild soap and water is recommended. Avoid harsh chemicals that can damage the finish. Inspect the trolley regularly for any wear or damage to ensure its longevity.
Q: What is the warranty period?
A: Warranty periods vary by manufacturer but typically range from one to five years. It's essential to check the warranty details before making a purchase.
