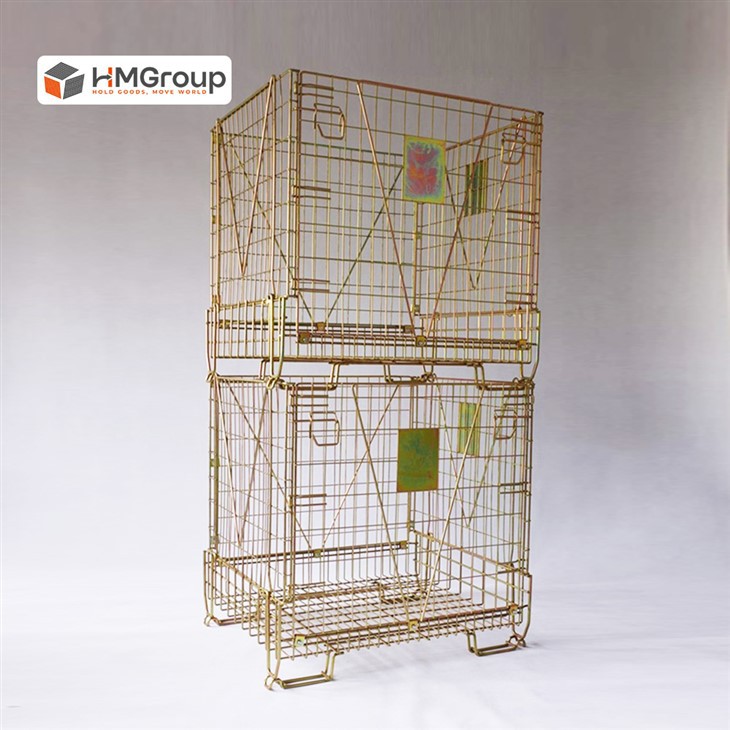

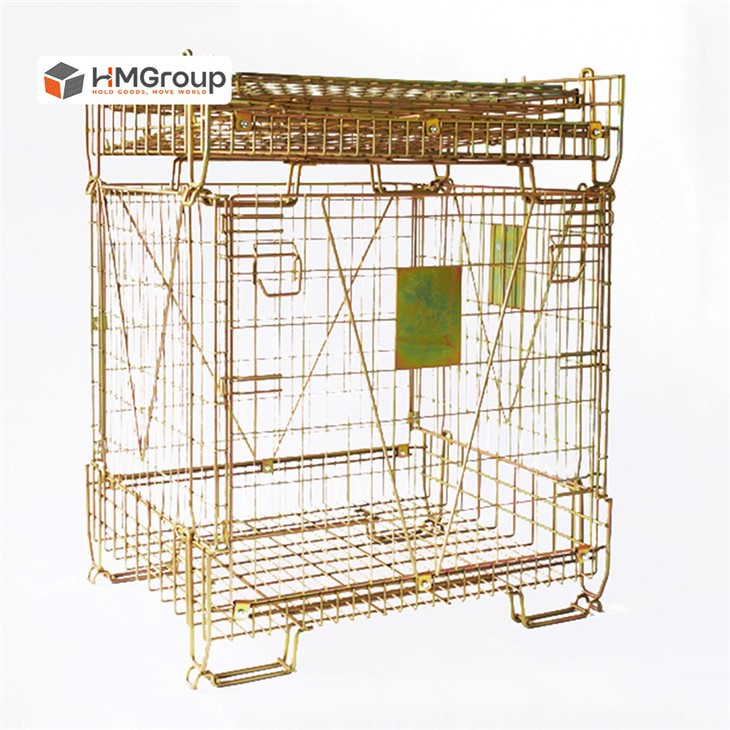

Wire Mesh PET Preform Container
Wire mesh PET preform container offers clear visibility and easy forklift movement, perfect for storing PET preforms and plastic caps.
Model No.: HM-PPC28
Wire Guage: 5 mm
Grid Size: 50×100 mm
Loading Capacity: 800 kg
Loaded in 1x40'HQ: 170 sets
Exterior Dimension: 1200Lx1010Wx1200H mm
Products Description
Wire Mesh PET Preform Container
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stackability: 5+1 high
Zinc/hot dip galvanized/powder coating(customized)
Fully collapsible to save space
Warehouse, logistic, recycling, etc.
HM-PPC28
Model No.
800 kg
Loading Capacity
1200×1010×1200
Exterior dimension
170 sets
Loaded in 1X40'HQ
The wire mesh PET preform container is designed for dynamic warehouses where speed and accurate identification are important. The visibility 50 × 100 mm grid allows forklift operators and auditors to check batch levels and preform colours without opening the unit. The open-wire structure supports airflow in temperature-controlled storage areas, subject to the site environment and operating conditions.
Advantages
Faster inventory checks: The mesh provides broad visibility of the contents, helping reduce the time needed for routine checks.
Improved airflow: The open structure supports air circulation and may help reduce moisture accumulation where storage conditions are properly controlled.
Easier batch identification: Clearer visibility of the contents helps operators distinguish batches and may reduce the risk of mixing during handling.
Suitable mesh spacing: The stated wire spacing should be checked against the size and shape of the preforms to reduce the risk of snagging during loading and unloading.
Products Customized
PET Preform storage containers can be designed according to your idea.
Application
Wire mesh PET preform container is suitable for active inventory staging areas and high-rack storage. It is intended for plastic packaging warehouses that require regular stock checks and quick batch identification during storage and internal handling.
Hot Tags: wire mesh pet preform container, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Ext.Dim. |
Wire Guage |
Dimension of Grid |
Loading capacity |
Loaded in 1*40 HQ |
|
LxWxH(mm) |
mm |
mm |
kg |
sets |
|
|
HM-PPC22 |
1196X1008X1174 |
4.8-12 |
62X125 |
600 |
170 |
|
HM-PPC11 |
1245x1020x1120 |
5-12 |
55x113 |
400 |
189 |
|
HM-PPC14 |
1120x971x1050 |
6-12 |
54x160 |
800 |
240 |
|
HM-PPC28 |
1200x1010x1200 |
5-12 |
62x125 |
800 |
170 |
|
HM-PPC34 |
1200x1010x1094 |
4.5-12 |
51x95 |
450 |
170 |
|
HM-PPC01 |
1200x1000x1241 |
3.4 |
25x63 |
800 |
144 |
|
HM-HD010 |
1200x1000x1250 |
6 |
25x50 |
800 |
216 |
|
HM-HD028 |
1200x1000x1140 |
5 |
50x100 |
500 |
270 |
|
Material |
Mild steel Q235 |
||||
|
Stackability |
5+1 high |
||||
|
Finish |
Zinc/hot dip galvanized/powder coating |
||||
|
Accessories |
Wheels/inner PP sheet or PP hollow sheet/bag |
||||
|
Application area |
Warehouse, logistic, recycling industry, PET preform or plastic cap storage |
||||
|
Features |
1. Collapsible: saves space when not in use, ideal for return journeys |
||||
Similar Recommended
Wire mesh PET preform container can be built with forklift guide rails. These help forklift drivers pick up and move they safely and accurately, even in tight spaces. It's great for busy factories where preforms are handled fast and often.
Video
Handling PET preforms just got easier. This video shows how wire mesh PET preform container is set up quickly by one person – perfect for clean, organized preform storage.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Communication is important during any project. That’s why we offer production tracking by photo. When the product is being made, we can send pictures of every stage. For example, when the steel is cut, when it is welded, when they is assembled, and when it is packed. You don’t need to visit the factory — you can see it all from phone. This helps follow about your order.
Quality Control
Size matters in warehouse equipment. Our team checks finished wire mesh PET preform container to make sure it meets the right length, width, and height. A wrong size can affect stacking or forklift movement. You can trust industrial stacking containers will fit your space and systems.
Packing and shipping
Paper shell - avoid friction between wire container with wheels & steel straps
Metal or plastic strip - fix & protect
Certificate
Compliance with ISO, SGS, BV, APT, and patent certifications underpins the high standards upheld by HM Group.
What Customers Say
Fast delivery, clear communication, and strong containers. That’s why we keep buying from HM Group.
FAQ
Q: What finishes are available?
A: We offer zinc-plated, hot-dip galvanized, and powder-coated options, depending on your needs.
Q: Can we add identification plates to the mesh for automated batch tracking?
A: Absolutely. We can weld customized metal ID plates to the exterior mesh. Combined with the high-visibility grid, this allows your warehouse team to scan barcodes or read batch labels easily from a distance, even when the containers are stacked 5 units high.
Q: How many factories do you have?
A: We operate across 10 factory bases, and you’re welcome to check inventory directly with us.
Q: How does the 50x100mm mesh improve inventory speed?
A: The open mesh size is optimized for at-a-glance visibility. Forklift operators can verify batch numbers and fill levels without dismounting, speeding up daily inventory audits by 30%.
