Wire Mesh Wine Container

Wire mesh wine container is made of welded mild steel and is strong and open. It helps wine industry store and transport bottles safely and lets you check contents easily.

Model No.: HM-WEU001
Wire Guage: ￠12-￠5.0 mm
Grid Size: 55×113 mm
Loading Capacity: 800 kg
Loaded in 1x40'HQ: 332 sets
Exterior Dimension: 1140L×830W×980H mm

Send Inquiry

Download

Wire mesh wine container is built for wine transport and big warehouse storage. It uses welded mild steel, so it is strong and safe. The open mesh lets you see inside. This makes it easy to check your wine. We can make forklift holes on the bottom for easier lifting. It is used by wine sellers, storage centers, and shipping companies. This stackable wire mesh container helps keep wine safe when you move it far. When storing, you can stack them up as needed, up to 4 high.

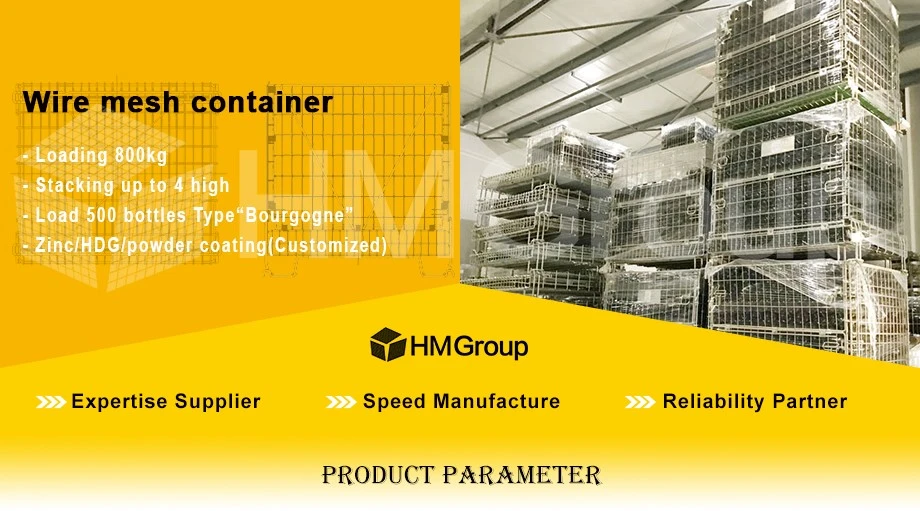

F1 wine bottle cage

Features and Benefits

1. Efficient Transport – Simplifies logistics and handling.
2. Customizable Sizes – Meets specific storage needs.
3. Secure Stacking – Ensures stability when loaded.
4. Eco-Friendly – Reusable and sustainable.
5. Enhanced Visibility – Easy to identify stored items.
6. Quick Assembly – No complex setup required.
7. Reduces Damage – Protects goods from crushing.

metal cages for storage

Storage Metal Cage

Application

Wire mesh wine containers are popular in wineries and big storage houses. This helps keep wine at a good temperature. When stacking them, make sure the weight is even so the industrial metal containers stay safe. Many wine industry use them to ship bottles across long distances because this product protect the bottles and can be reused many times.

Wire mesh cage

Wire mesh storage cages

Hot Tags: wire mesh wine container, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China

Specification

Model No.	Exterior dimension	Wire Guage	Dimension of Grid	Loading capacity	Loaded in 1* 40'HQ
Model No.	LxWxH(mm)	mm	mm	kg	sets
HM-WEU001	*1140830980*	12-5.0	*55113**	800	332
HM-WEU005	12009201018	12-5.0	51*118	800	228
HM-WEU010	12009251000	11-5.0	62115/60120	800	253
HM-WEU016	12328081060	12-5.0	54*115	800	168
Material	Mild steel Q235
Finish	Zinc plates
Wine storage	WEU001, WEU010-type "Bourgogne" - Load 500 bottles, WEU005-type "Bordeaux" - Load 400 bottles, WEU016-Type "champagne" - Load 500(horizontal) bottles, 339(inverted)bottles
Product Features	1. The ideal logistics products, combine strength, flexibility and maneuverability. 2. Folded, allows it to be widely used in logistics 3. One side half-open gate 4. Long-lasting,economical alternative to disposable packing

Similar Product

We offer a variety of wine bottle mesh container in different sizes and designs to meet your unique storage and handling needs. We can make container with company name or logo. This helps you find your containers and shows your brand. It's useful for big businesses who have many warehouses. OEM service helps you manage your tools better.

Wire storage cages

wine barrel rack 4

See how the wire mesh wine container folds effortlessly to save space. In this video, we also showcase its use in warehouses and shipping, along with other models that fit storage needs.

HM Group

Efficiency Redefined: Your All-in-One Warehouse Equipment Partner

- Experienced manufacturer and exporter since 2003.

- Export Quantity: Around max 300 containers per month in 2023

- 8 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou

- Offer custom-designed to suit your every need

- OEM, ODM support

Workshop

After cutting the wire, the next step is wire bending forming. For a wire mesh wine container, the wire is bent into the correct shapes, forming the frame and the grid pattern. This is a critical step, as it ensures the structure is stable enough to support the weight of wine bottles. The bending process allows for customization based on the pallet wire mesh container dimensions and design.
