Stackable Foldable Large Wine Container
video
Stackable Foldable Large Wine Container

Stackable Foldable Large Wine Container

The stackable foldable large wine container is built for bulk bottle storage where vertical space and empty unit storage both need better control. Full units can be stacked in rows for batch storage, while empty cages fold down after unloading to reduce occupied floor area.

Model No.: HM-WEU016
Exterior Dimensions: 1232L×808W×1060H mm
1/2 folding door on the front
Static 4/1 stacking
1/1 dynamic
Finish: bright electrolytic zinc plating
Loading Capacity: 800 kg
Loaded in 1x40'HQ: 164 sets

Products Description



F16

Stackable Foldable Large Wine Container



   Manufacturing Excellence

 Expertise Supplier

Warehouse Solutions

Reliability Partner

   Benefits

Zinc/hot dip galvanized/powder coating(customized)

Fully foldable to save space

Application: Warehouse, logistic, recycling, wine industry, etc.



HM-WEU016

Model No.

800 kg

Loading Capacity

1232X808X1060

Exterior dimension

164sets

Loaded in 1X40'HQ

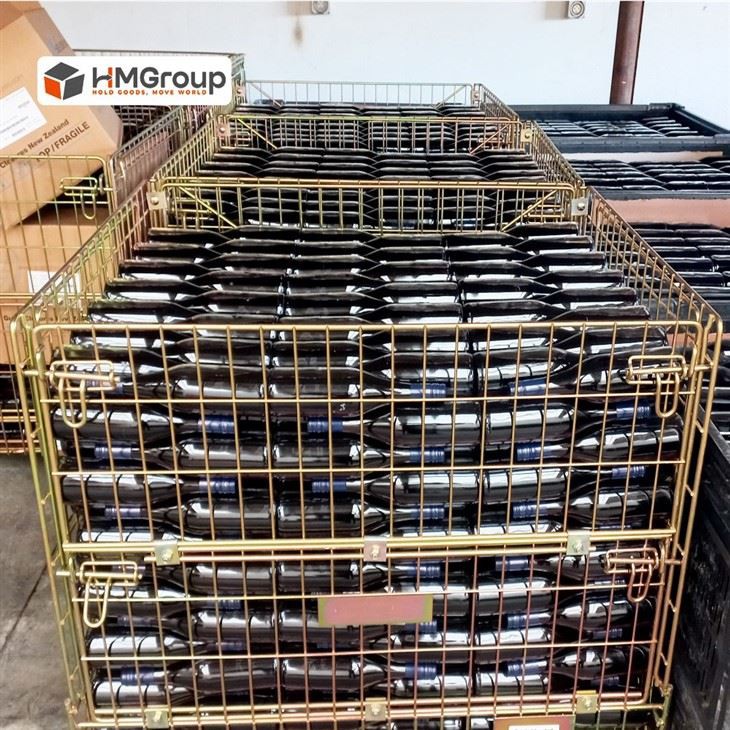

Large wine orders do not always move out of storage quickly. In many wineries, bottled stock remains stacked for seasonal release periods or export scheduling. This stackable foldable large wine container is often used for full-case storage inside cellar warehouses and finished goods areas. The mesh body keeps outer labels visible from the aisle.
Some operators leave the same stacks untouched for months. Lower doors can still be opened during inventory checks without breaking down the full row.



Advantages





Wine Container Customization Options

  • Creates vertical storage blocks for bulk bottle inventory

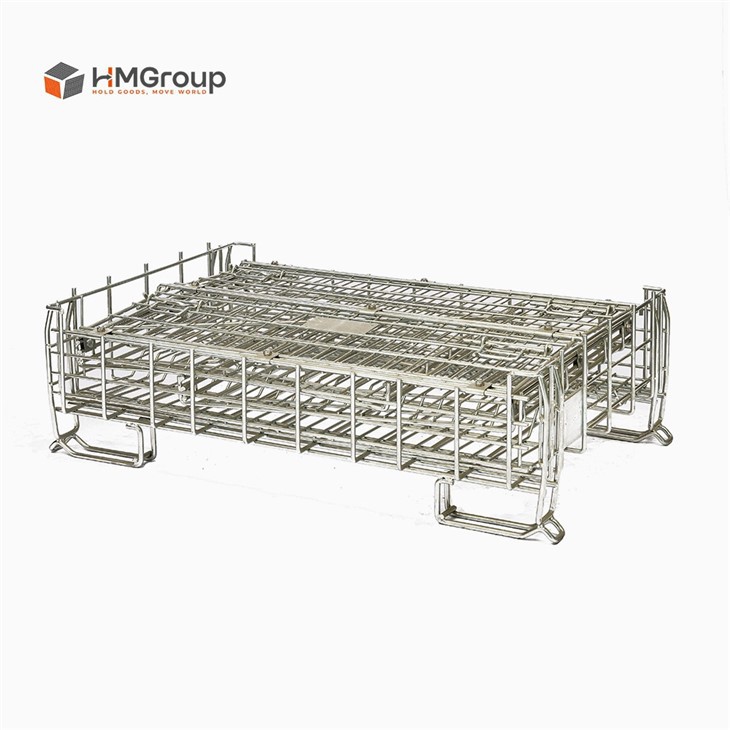

  • Folds flat after unloading to reduce empty unit storage area
  • Keeps loaded bottles organized during batch preparation
  • Simplifies loading and unloading between warehouse zones
  • Supports stacked storage before loading or shipment preparation



Products Customized



Not every winery stores the same bottle format. Bordeaux bottles, sparkling wine loads usually require different inner spacing. Some customers request divider layouts between product batches, while others prefer fully open storage for faster loading during harvest season. Dark powder coated finishes are common in visitor-facing storage rooms.
Folded units are often kept near wall sections or unused loading bays after peak shipment periods. Custom sizes can also match existing pallet dimensions used inside the warehouse.

Wine Container Details

Application



You will often see these stackable foldable large wine container in bonded storage buildings, long-term aging warehouses, and export preparation rows near loading docks. A few wineries separate domestic and overseas inventory by stack section instead of using additional floor barriers. During quieter production months, upper stacks may remain in place while lower cases continue moving out in smaller quantities.
Some distributors continue using the same containers after overseas arrival rather than transferring bottled stock into local shelving systems.

Wine Container Applications

Hot Tags: stackable foldable large wine container, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China

Similar Recommended



Model No. Exterior dimension Wire Guage Dimension of Grid Loading capacity Loaded in 1x 40'HQ
LxWxH mm mm mm kg sets
HM-WEU001 1140x830x980 12-5.0 55x113 800 332
HM-WEU005 1200x920x1018 12-5.0 51x118 800 228
HM-WEU010 1183x948x991 11-5.0 62x115/60x120 800 253
HM-WEU016 1244x802x1054 12-5.0 54x115 800 164
HM-CP001 1200x800x1000 5-12 60X103 800 550
HM-BR066 44.5''x30.5''x18'' - - 66 Gallon 234



Different versions of the stackable foldable large wine container are available with alternative heights, door access styles, and wheel options depending on handling preference and storage layout. Some projects use mobile versions for frequent movement between work areas, while others choose fixed-base units for regular stacked storage.

Similar Wine Container Models

Video



High-volume storage areas often require better use of vertical space and organized empty container storage. HM Group manufactures the stackable foldable large wine container for stacked storage, reduced empty storage area, and regular warehouse handling. Watch the video to see product details and contact us for customization or wholesale pricing.

HM Group



HM Group



——

Hold Goods, Move World



- Experienced manufacturer and exporter since 2003.

- Export Quantity: Around max 300 containers per month in 2023

- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou

- Offer custom-designed to suit your every need

- OEM, ODM support









Production Process

Production of the stackable foldable large wine container follows fixed technical drawings and standard forming procedures developed for bottle storage structures. Wire cutting, frame forming, welding, hinge fitting, and assembly are completed through arranged production stages before finishing treatment. Standard tooling keeps frame dimensions more consistent across repeat production batches.

Wine Container Manufacturing Factory



Quality Control



A loaded stacking test is completed before shipment for each stackable foldable large wine container order. The unit is loaded according to rated working weight, then stacked under operating conditions to check frame alignment, corner stability, and base contact performance. This inspection checks frame stability for stacked warehouse storage.

Wine Container Quality Inspection

Packing and shipping



1. Prevent scattering in shipping - stretch film wrapped

2. paper shells - edges are bundled up by paper shells



Wine Container Packaging

Certificate



Our commitment compliance with certifications including ISO, SGS inspection, BV test, APT test, and a patent certificate, ensuring the high standards for HM Group

adjustable heavy duty tire rack

What Customers Say

"We use these cages for wine bottle batch storage before export shipment. Stacking improved our warehouse layout immediately, and folded units take much less room after unloading."------Anton Pršo

folding and stacking tire rack

FAQ

Q: How many loaded units can normally be stacked in warehouse storage?

A: Final stacking quantity is usually determined by bottle weight, warehouse layout, and storage conditions.



Q: Is this container suitable for batch loading before truck dispatch?

A: Yes. The steel frame supports finished bottle collection, batch staging, and loading preparation before outbound shipment.



Q: Can the unit stay folded during return storage after unloading?

A: Yes. Side panels collapse manually to reduce storage area while empty units are waiting for the next use.
