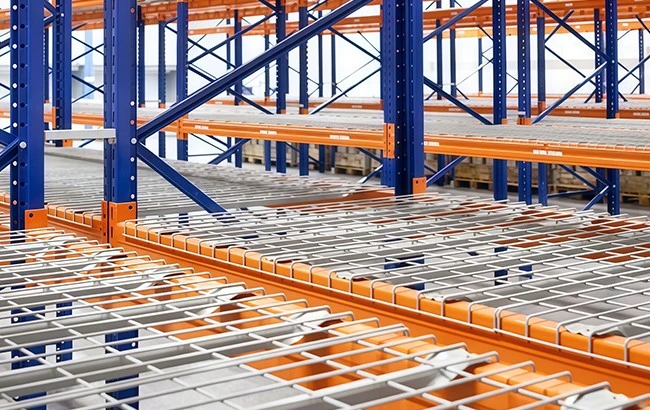

Flared Channel Decking
Flared Channel Decking provides flexible storage support across various beam types, offering stability with a load capacity up to 1000kg, and added security through its waterfall edge.
“U style” channel supports
“Flared style” channel supports
Fits on most pallet rack beam
ANSI standard
ISO 9001 standard
A. Loading capacity: 300kg
B. Loading capacity: 800kg
C. Loading capacity: 1000kg
Products Description
Flared Channel Decking
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Zinc/hot dip galvanized/powder coating
Compatible with step beam pallet racking
Available design:
U-Channel/ Inside Waterfall/ Inverted U-Channel/ Flat Flush/ Flared Channel/ Up-turned Waterfall
HM-D42x46W
Model No.
2000lbs
Loading Capacity
42"x46" inch
Exterior dimension
1688 pcs
Loaded in 1X40'HQ
Flared Channel Decking, also known as flanged wire decking, is a highly versatile storage option compatible with various beam types. Unlike the step-style deck, which rests on the step beam, the flared style wire deck's channel has a flattened end that rests directly on top of the beam surface, offering easier placement. Though it provides slightly less strength than standard step decking, it can still loading capacity of up to 1000kg of evenly distributed weight, making it suitable for a broad range of applications. Its waterfall edge adds extra security, ensuring items remain in place, making it practical for dynamic storage needs.
Advantages
1. Made of high-quality steel wire, which is durable, corrosion-resistant, and has a long service life.
2. The wire mesh structure is convenient for cleaning and has good air permeability.
3. The wire mesh structure is flexible and can be customized according to different needs.
4. Low maintenance because dirt cannot build up on the wire grid
5. Suitable for use in warehouses, factories, and other environments where large quantities of goods need to be stored.
6. It meets both ANSI and ISO 9001 standards, ensuring a longer service life.
Products Application
Flared channel decking provides a secure foundation for items on warehouse shelves, reducing the risk of accidents due to falling items. Its sturdy structure gives workers peace of mind when placing or retrieving goods, supporting safer warehouse operations.
Hot Tags: flared channel decking, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China, Flared channel Wire Decking, Flared Wire Decking, mesh deck, steel mesh decking, warehouse wire decking, wire decking for shelves
Specification
|
Euro Sizes |
|||
|
A.Loading capacity |
B.Loading capacity 800kg |
C.Loading capacity |
|
|
Mesh 50×150 mm |
Mesh 50×100 mm |
Mesh 50×100 mm |
|
|
Dim (D×W) (mm) |
Dim (D×W) (mm) |
Dim (D×W) (mm) |
|
|
600×880 |
1000×880 |
1050×1090 |
1000×1340 |
|
1000×880 |
1050×880 |
800×880 |
1050×1340 |
|
1050×880 |
1100×880 |
1200×880 |
800×1340 |
|
1100×880 |
1000×1090 |
1200×1090 |
1200×1340 |
|
American Sizes |
||
|
Standard U-channel |
Pallet Deck |
|
|
Dim (D×W) (inch) |
Dim (D×W) (inch) |
|
|
24"×46" |
42"×46" |
24"×46" |
|
30"×46" |
42"×52" |
36"×46" |
|
36"×34" |
42"×58" |
36"×52" |
|
36"×46" |
48"×34" |
42"×46" |
|
36"×52" |
48"×46" |
42"×52" |
|
36"×58" |
48"×52" |
44"×46" |
|
42"×34" |
48"×58" |
48"×46" |
The flared channel decking can be customized in width, depth, and load capacity to match specific storage requirements. This adaptability allows for optimal fitting on various rack sizes and customized support based on load expectations.
Products Recommended
The rack accessories typically include sturdy upright posts, adjustable shelves, crossbeams, and locking mechanisms that ensure stability and safety.
Video
Still unsure about anything after the video? Feel free to contact us! Our team is ready to help with any questions you may have about flared channel decking and how it’s tested.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Flared channel decking will choose automatic welding machines during the production process. One of the major advantages of automatic seam welding machine is its ability to produce high quality welding. With precise control over the welding process, it ensures consistent results and eliminates defects commonly associated with manual welding. This leads to improved production efficiency and reduction of downtime.
Quality Control
HM Group QC team will have seriously inspections from the raw material to products final loading.
Packing and shipping
- Prevent scattering in shipping - stretch film wrapped
- Paper shells - edges are bundled up by paper shells
Certificate
We are dedicated to showing that we are a dependable and exceptional partner for all of your requirements.
What Customers Say
“We ordered custom Inverted U-Channel wire decking for our warehouse upgrade. The fit was suitable, and installation was quick. HM GROUP responded fast during the order process and provided clear drawings, which made everything easier.” ---Francisco Moret
FAQ
Q: Could you design&produce according to customers’ request?
A: Sure, we have very rich experience in customizing production.We have an excellent design team to offer you professional OEM design service.
Q: What materials are wire mesh decking made of?
A: Wire mesh decking are commonly made of mild steel Q235.
Q: How long is your delivery time?
A: Generally it is about 14 days if the goods are in stock, or it is 15-21 days if no stock. It is according to the quantity.
