Steel Wire Decking
For a properly managed storage purpose here we have got the classic multi-beam deck that possess great strength and durability. There are different sizes available in this deck so that you can get the one that fits your requirements.
Model No.: Multi-beam Deck
Wire Diameter: Φ4 & Φ5 mm
Dim Mesh: 25x100 mm
Channel Thickness: 2 mm
Products Description
Steel Wire Decking
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Zinc/hot dip galvanized/powder coating
Compatible with step beam pallet racking
Available design:
U-Channel/ Inside Waterfall/ Inverted U-Channel/ Flat Flush/ Flared Channel/ Up-turned Waterfall
HM-D1100x880W
Model No.
300-1000kg
Loading Capacity
1100x880mm
Exterior dimension
2488 pcs
Loaded in 1X40'HQ
Document steel wire decking with uchannel's popularity is due to its many benefits, which include its large size and width, its large grid, and its high cost performance. Steel wire decking is also very easy to install and uninstall, which makes it an ideal choice for those who need to frequently change their storage configuration.
The powder coated u channel wire mesh decking is specially designed for storing papers and documents and it will keep them safe and not let them fall off the deck. For proper management of storage purposes, we have the classic multi-beam deck that has great strength and durability. We have different sizes available so you can get a Steel Wire Decking that meets your requirements, and of course, we can customize it for you if you need it.
Advantages
- F/U/Inverted U channel
- Multiple-beam wire mesh decking
- Inside waterfall, flat flush, Up-turned waterfall
The Steel Wire Decking provided by our company sells well all over the world with its excellent quality and reasonable price. This multi-beam construction is strong and durable and it will hold tightly to the beam giving a perfect arrangement. In addition, its strong grid pressure-welded structure makes it high load-bearing, light structure, easy to install, etc. What's more, it has a beautiful appearance and is durable.
Products Customized
Steel wire decking is a type of storage shelving that uses Wire grids instead of solid shelves. This design provides several benefits over traditional shelving, including improved visibility, better air circulation, and easier cleaning. In addition, it is more durable than wood or laminate shelves, making it an ideal choice for high-traffic areas. It is also significantly lighter than traditional shelving, making it easier to install and relocate. As a result, Storage Wire Decking With U Channel is a versatile storage solution that can be used in a variety of settings.
Hot Tags: steel wire decking, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China, itc wire decks, shelf decking, steel mesh trailer decking, wire deck shelving, Wire Decking For Racks, wire verandah railings
Specification
|
Euro Sizes |
|||
|
A.Loading capacity |
B.Loading capacity 800kg |
C.Loading capacity |
|
|
Mesh 50×150 mm |
Mesh 50×100 mm |
Mesh 50×100 mm |
|
|
Dim (D×W) (mm) |
Dim (D×W) (mm) |
Dim (D×W) (mm) |
|
|
600×880 |
1000×880 |
1050×1090 |
1000×1340 |
|
1000×880 |
1050×880 |
800×880 |
1050×1340 |
|
1050×880 |
1100×880 |
1200×880 |
800×1340 |
|
1100×880 |
1000×1090 |
1200×1090 |
1200×1340 |
|
American Sizes |
||
|
Standard U-channel |
Pallet Deck |
|
|
Dim (D×W) (inch) |
Dim (D×W) (inch) |
|
|
24"×46" |
42"×46" |
24"×46" |
|
30"×46" |
42"×52" |
36"×46" |
|
36"×34" |
42"×58" |
36"×52" |
|
36"×46" |
48"×34" |
42"×46" |
|
36"×52" |
48"×46" |
42"×52" |
|
36"×58" |
48"×52" |
44"×46" |
|
42"×34" |
48"×58" |
48"×46" |
The Steel Wire Decking is made for universal use. It fits box beams, step beams, and structural beams, offering flexibility for changing warehouse layouts.
Video
Document wire decking, also known as file box wire decking, is a type of storage rack system that helps to keep files and documents organized. The steel wire decking consists of horizontal wires that are spaced apart, allowing for the easy placement and removal of file boxes.
This type of storage system is often used in big libraries, as it helps to keep the area looking neat and tidy. By keeping files off the floor and organized on wire decking, document wire decking can help to create a more efficient workspace.
As a result, wire decking is a versatile storage solution that can be used in a variety of settings.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process

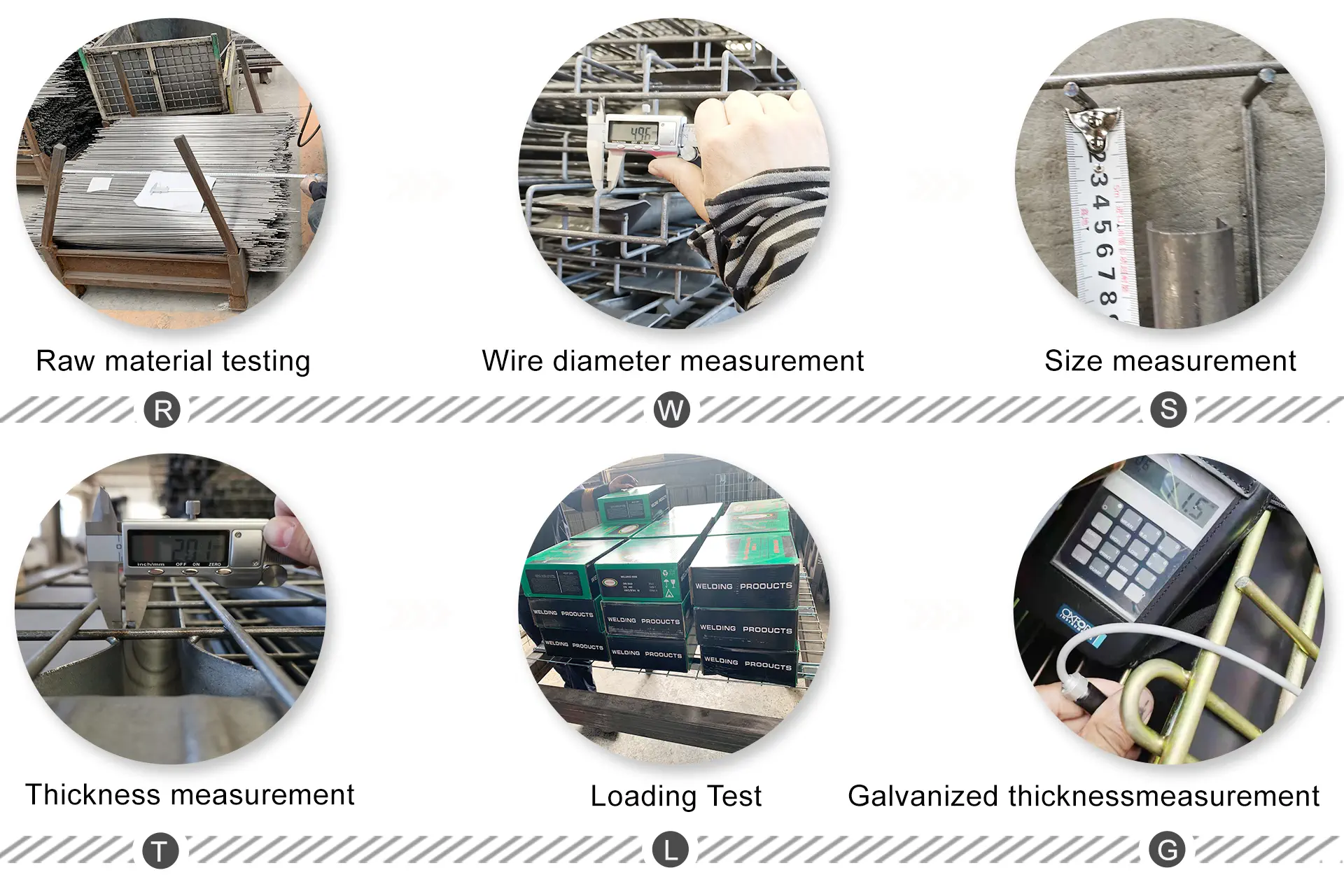

Quality Control
HM Group's QC team will have seriously inspections from the raw material to products final loading.
Packing and shipping
- Prevent scattering in shipping - stretch film wrapped
- Paper shells - edges are bundled up by paper shells
Certificate
We are dedicated to showing that we are a dependable and exceptional partner for all of your requirements.
What Customers Say
“The steel decking for pallet rack quality is consistent across all units. We especially liked the coating finish and solid welding. Delivery was on time, and the support team kept us updated throughout production.” ---Kenji Chee
FAQ
Q1: About surface, can be finished in powder coating？
- Okay, in general, can be finish zinc/hot dip zinc/powder coated.
Q2: Can you make mesh decks 3600MM deep with zinc finish in one piece?
- Yes, we could make decking in one piece.
Q3: Could you make decking 2440MM deep for powder coating?
- Our powder coating line have limitation for the size of decking, our max size for powder coating finish is 2200MM
