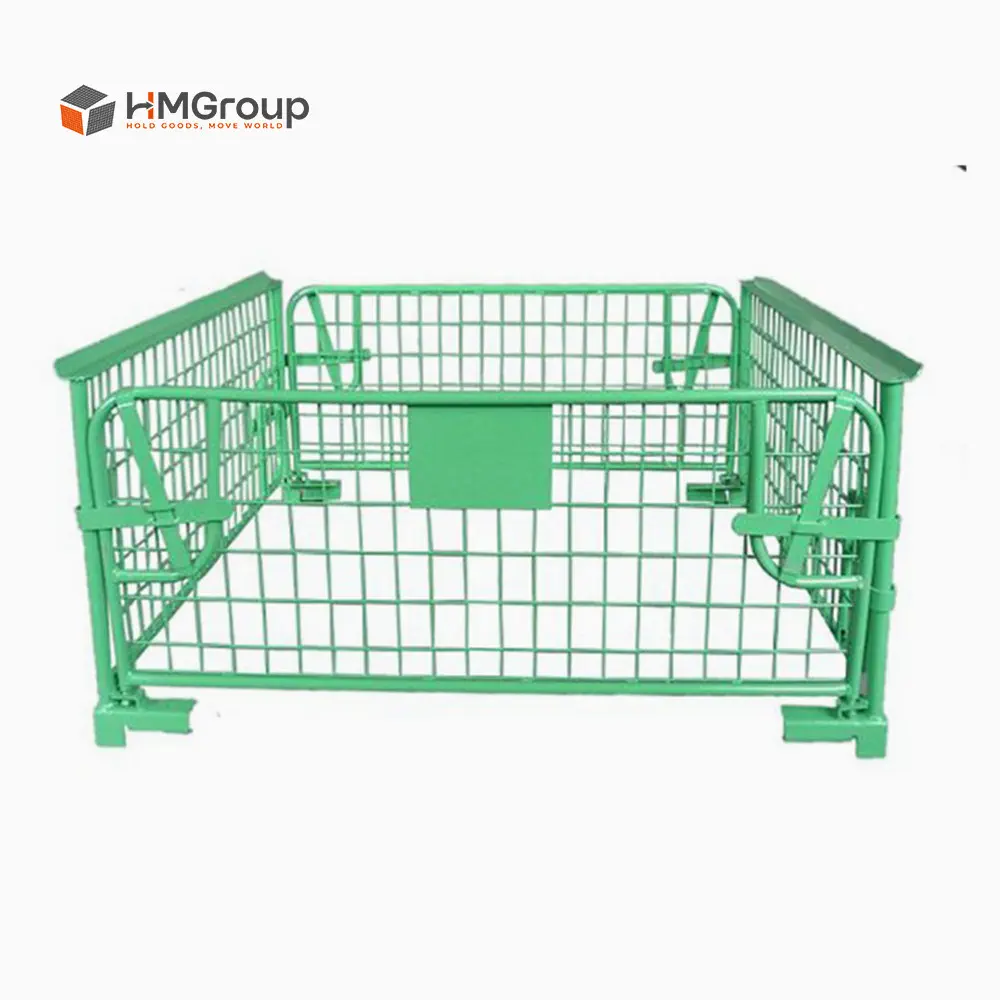

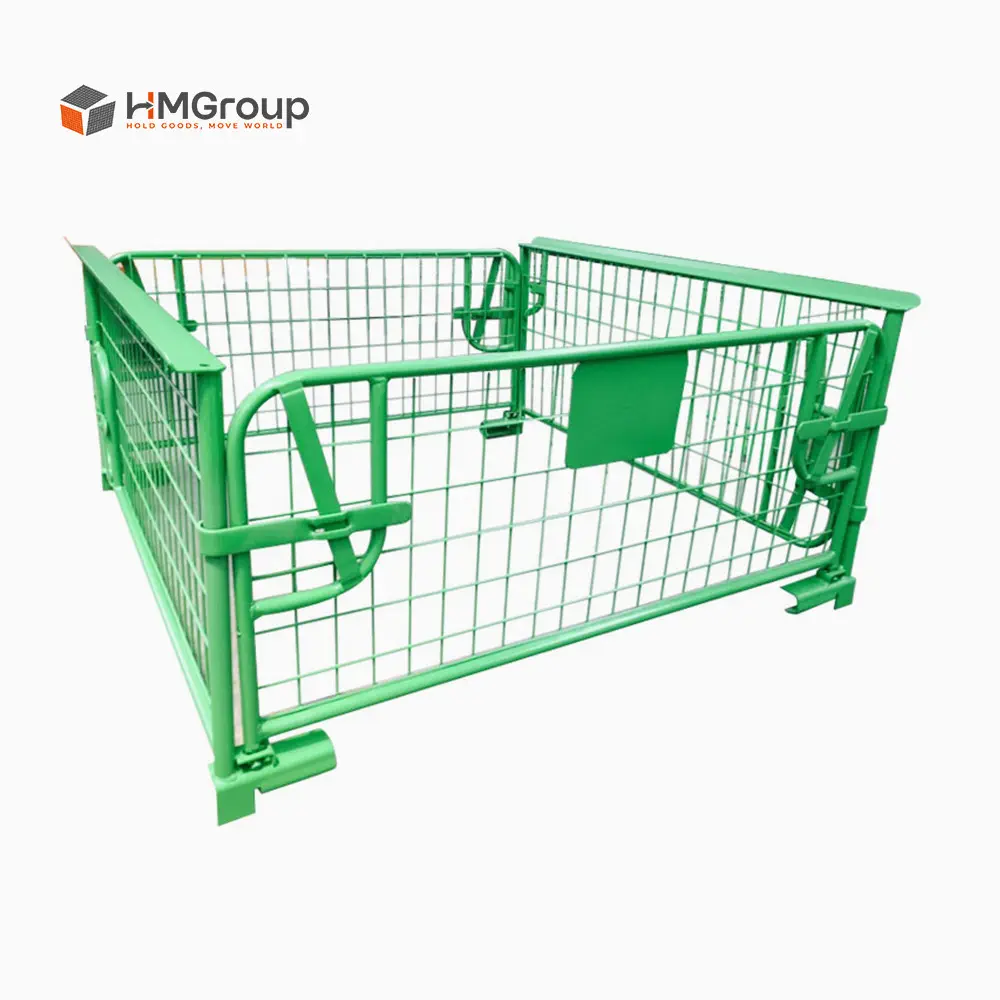

Warehouse Wire Storage Cages Pallet
The warehouse wire storage cages pallet is designed to work with existing 1170×1170mm Australian pallet bases. It adds a rigid wire structure around an open pallet, helping secure loose, irregular, or bulk goods during storage and movement. The cage can be handled with standard warehouse equipment and stacked when loaded, giving warehouses a way to add enclosed storage capacity without changing their existing foldable cage pallet infrastructure.
Model No.:HM-CP-AU007
Wire Gauge:4 mm
Grid Size:50x75 mm
Loading Capacity:500 kg
Loaded in 1x40'HQ:488 sets
Exterior Dim.:1170x1170x500 mm
Products Description
Warehouse Wire Storage Cages Pallet
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Zinc, hot dip galvanized, powder coating
Collapsible to save space
Application: Warehouse, logistic, mass retail, agricultural, electronic equipment, etc.
HM-CP-EU009
Model No.
800 kg
Loading Capacity
1200X800X1200mm
Exterior dimension
261 sets
Loaded in 1X40'HQ
Add containment to flat pallets. The warehouse wire storage cages pallet creates a rigid storage frame on 1170×1170mm pallet bases, helping prevent loose or irregular goods from shifting during handling and storage. Instead of relying solely on stretch wrap, the reusable steel structure provides fixed side containment while keeping the stored goods visible through the wire mesh. The frame is manufactured from Q235 mild steel and uses round-tube posts to support vertical loads when loaded units are stacked. Forklifts and reach trucks can handle the pallet and cage as one unit during storage or internal movement. When the goods have been removed, the collapsible frame can be folded down and stored on the pallet base, reducing the space required for empty units between handling cycles.
Advantages
Australian Pallet Footprint: Sized for 1170×1170mm pallet bases commonly used in Australian and Oceania warehouse operations.

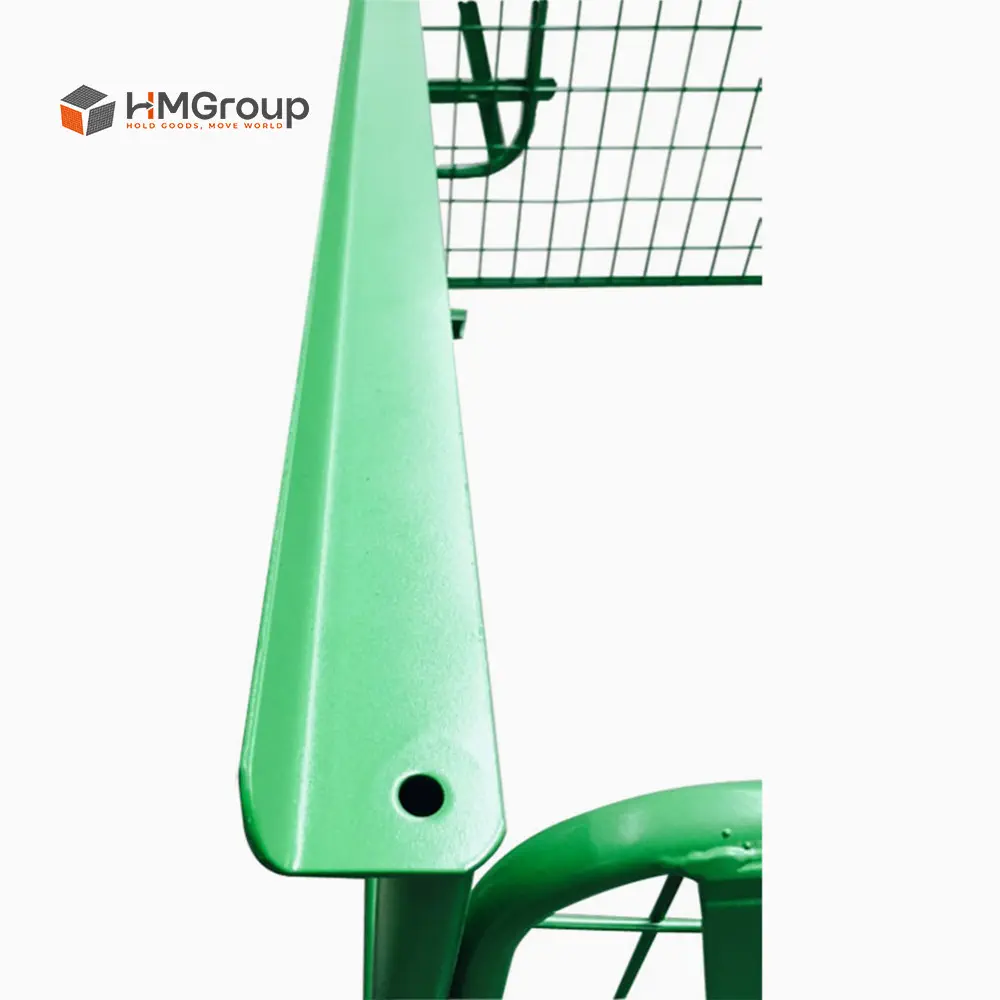

Curved Stacking Feet: Guide the upper cage into position when loaded units are stacked, helping maintain alignment between the frames.
50×75mm Wire Mesh: Provides a balance between cargo containment and visibility for bulk goods, irregular items, and smaller components.
Round Tube Structure: Provides a smooth outer structure with good impact resistance and fewer sharp corners during manual handling.
Corner Clamps: Secure the wire frame to the pallet edges and help prevent the cage from shifting during forklift handling.
Products Customized
Different mesh openings, heights, and surface finishes are available according to the size, weight, and handling conditions of the stored goods. For this warehouse wire storage cages pallet, the overall height can be adjusted for taller cargo, while internal dividers can be added when different product types need to be separated within one pallet footprint. The mesh opening can also be changed when smaller items require closer containment. Zinc galvanized is suitable for many dry warehouse environments, while hot-dip galvanizing can be selected for areas exposed to higher humidity or outdoor conditions. Nameplates, identification markings, and other dimensional changes can also be provided according to the customer's storage and handling requirements.
Application

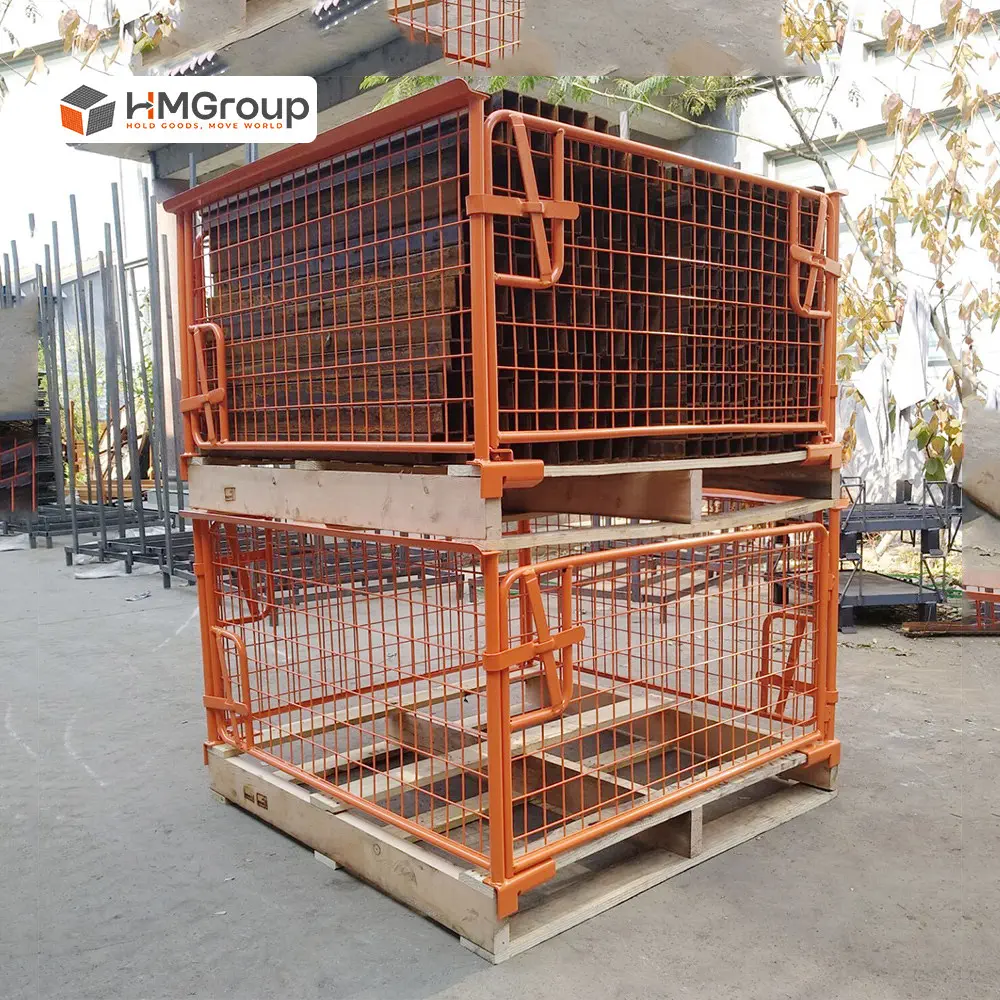

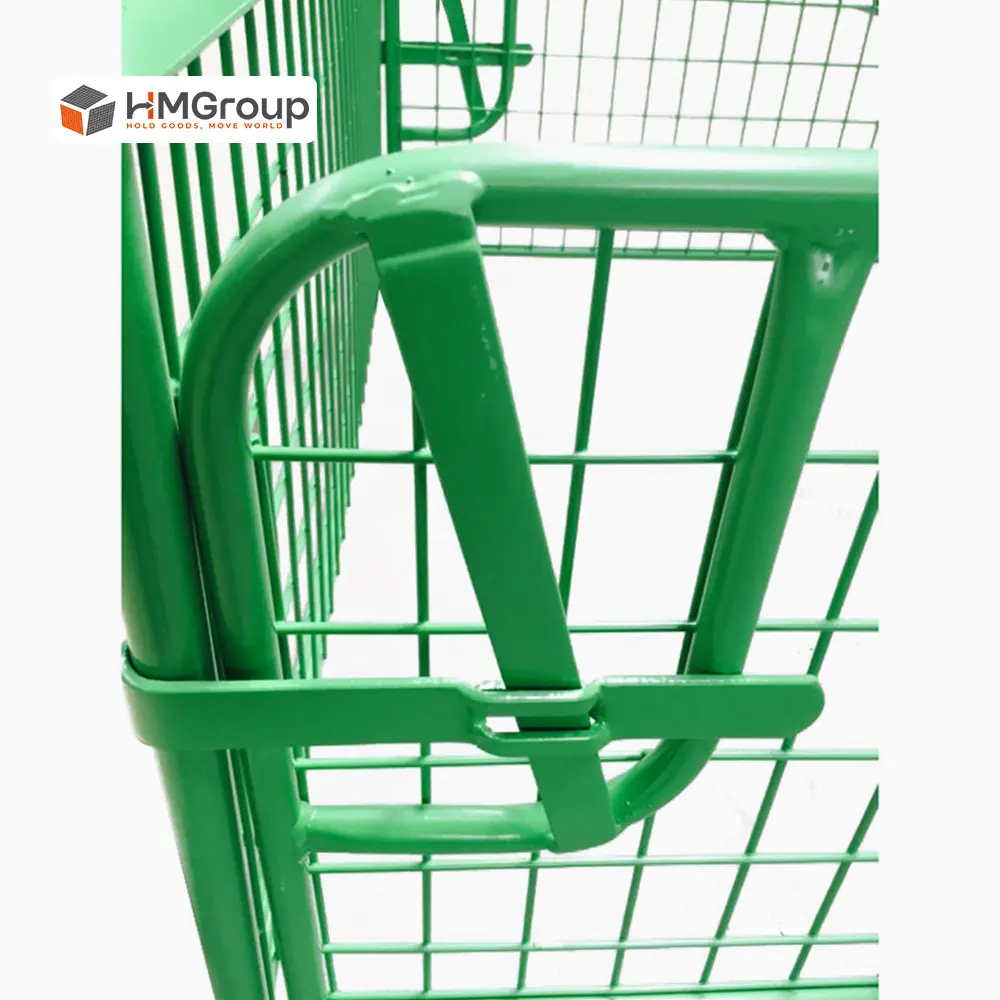

The process begins with the existing pallet base. After goods are loaded onto a 1170×1170mm Australian pallet, the operator positions the warehouse wire storage cages pallet around the cargo and secures the frame to the pallet edges using the corner brackets. The wire structure then keeps the load contained during internal movement and storage. When loaded units are stacked, the upper cage is positioned over the lower unit so that the stacking feet align with the supporting structure below. For goods stored near the lower section of the cage, the half-drop gate can be opened to provide access without removing the entire wire frame. Once the pallet has been emptied, the frame is released from the base, folded down, and placed with other empty units for storage or return transport.
Hot Tags: warehouse wire storage cages pallet, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior Dimension |
Wire Guage |
Grid Size |
Loading Capacity |
Loaded in 1x40'HQ |
|
LxWxH(mm) |
mm |
mm |
kg |
sets |
|
|
HM-CP-AU003 |
1170x1170x780 |
4 |
50x75 |
800 |
365 |
|
HM-CP-AU007 |
1170x1170x500 |
4 |
50x75 |
500 |
488 |
|
HM-CP-AU008 |
1170x1170x300 |
4 |
50x75 |
300 |
612 |
|
HM-CP-EU009 |
1200X800X1200 |
4 |
100x100 |
800 |
261 |
|
HM-CP-AU010 |
1170x1170x1200 |
4 |
50x75 |
800 |
200 |
|
HM-CP-EU011 |
1200X800X800 |
4 |
100X100 |
800 |
440 |
|
HM-CP-AU012 |
1200X800X1000 |
4 |
100X100 |
|
378 |
|
Application area |
Warehouse, logistic, mass retail, agricultural, electronic equipment, etc. |
||||
Similar Specification
For facilities handling smaller quantities or requiring more direct access to stored goods, half-height versions of the warehouse wire storage cages pallet are available. The standard-height model is more suitable for bulk storage and vertical stacking, while shorter frames can be useful for production lines, picking areas, or operations where workers need to see and reach the contents more frequently. The choice between the two depends mainly on cargo height, required storage density, and the way goods are accessed during daily handling.
Video
This video shows how a steel caged pallet is assembled for warehouse storage and material handling. Watch the process and contact us for custom requirements, pricing, or export orders.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
The main wire structure of the warehouse wire storage cages pallet is produced using automated welding equipment to maintain consistent frame dimensions and weld quality across production batches. After welding, the frame is checked for dimensional accuracy before surface treatment. This is important for a pallet-mounted cage because the frame needs to sit correctly on the 1170×1170mm pallet base and maintain proper alignment when loaded units are stacked.
Quality Control
Each batch of the warehouse wire storage cages pallet undergoes structural checks before shipment. The frame is inspected for dimensional accuracy, weld quality, and the fit of the corner brackets with the specified pallet footprint. Loaded stacking tests can also be carried out according to the required stacking height and loading conditions to verify that the structure maintains its shape under vertical load. These checks help ensure that the cage remains suitable for repeated forklift handling and palletized storage.
Packing and shipping
- Prevent scattering in shipping - stretch film wrapped
- paper shells - edges are bundled up by paper shells
Certificate
HM Group maintains strict quality standards, supported by certifications from ISO, SGS, BV, and APT, as well as patented technologies. Through these verified standards, HM Group ensures that its products meet international requirements and deliver dependable performance across global markets.
What Customers Say
"These cages have made better use of our existing Australian pallet base and helped us keep irregular loads more secure during storage and movement." — Logistics Supervisor, Sydney Distribution Center.
FAQ
Q: Is this warehouse wire storage cages pallet compatible with my existing Australian pallets?
A: Yes. The standard model is designed for 1170×1170mm pallet bases. The frame is positioned around the pallet and secured through the corner brackets to help keep the cage in place during handling.
Q: How does it handle small items?
A: The standard 50×75mm mesh provides a relatively close wire structure for many bulk and small-part storage applications. If your goods are smaller than the standard mesh opening, a closer mesh specification can be considered during customization.
Q: Does it work with existing warehouse equipment?
A: Yes. The unit is designed around a standard 1170×1170mm pallet footprint and can be handled as a palletized load with suitable forklifts and reach trucks. Compatibility with specific racking systems should be checked against the rack dimensions and the loaded unit's total height and weight.
