Barrel Black Rack

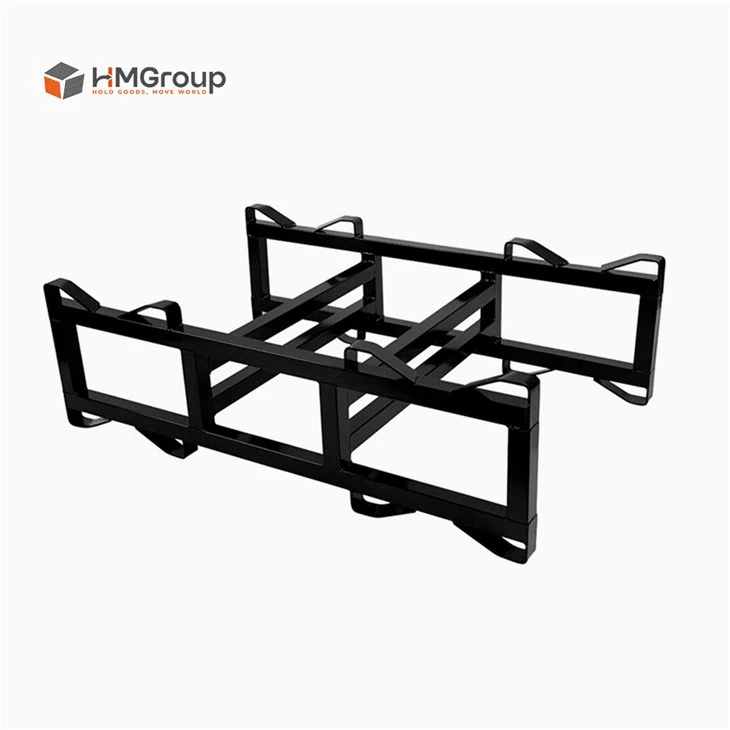

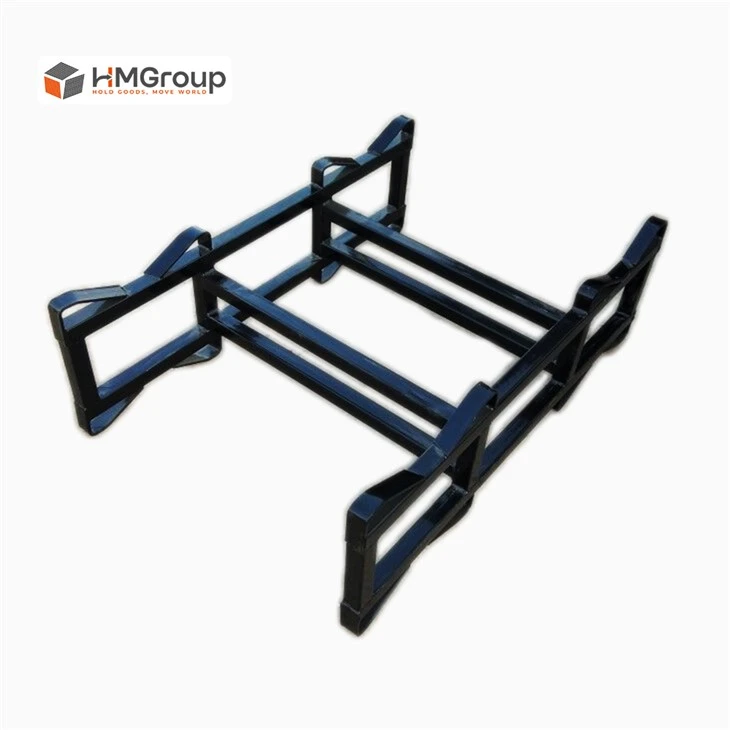

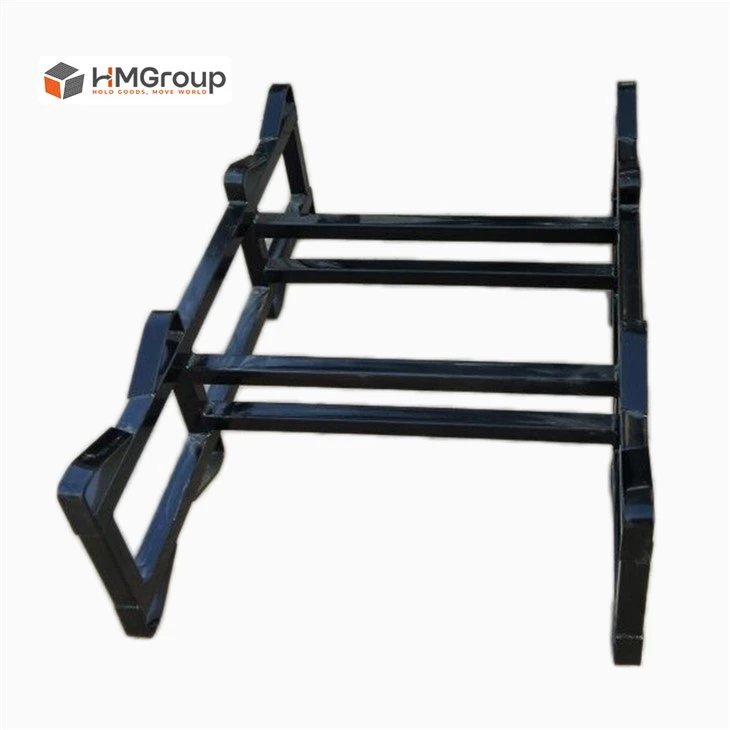

The Barrel Black Rack is a safe, stable way to store wine and beer barrels. It is welded from Q235 mild steel and sized for common cellar layouts. Each rack supports a loading capacity of 500 kg and stacks two high to save space. Coating options—powder coated, galvanized, or hot-dip galvanized—help resist rust in humid cellars. With a 1-year warranty and a service life of 3–5 years under proper use, it delivers simple, dependable storage.
Model No.:HM-BR066
Stacking:2-4 high
Referenced capacity:50L, 200L, 225L, 300L, 500L etc.
Loaded in 1x40'HQ:234 sets
Exterior Dim:44.5x30.5x18 inches
Products Description
Barrel Black Rack
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 2-4 tiers
Zinc/hot dip galvanized/powder coating
Stackable to save space
Available design: Single/ID Plate/Castor/Multiple barrels storage/Color
Application: Brewing Industry/Breweries/Wineries/Logistics & Warehousing/Industrial Storage & Handling
HM-BR066
Model No.
50-500 L
Loading Capacity
1130×775×453 mm
Exterior dimension
234 sets
Loaded in 1X40'HQ

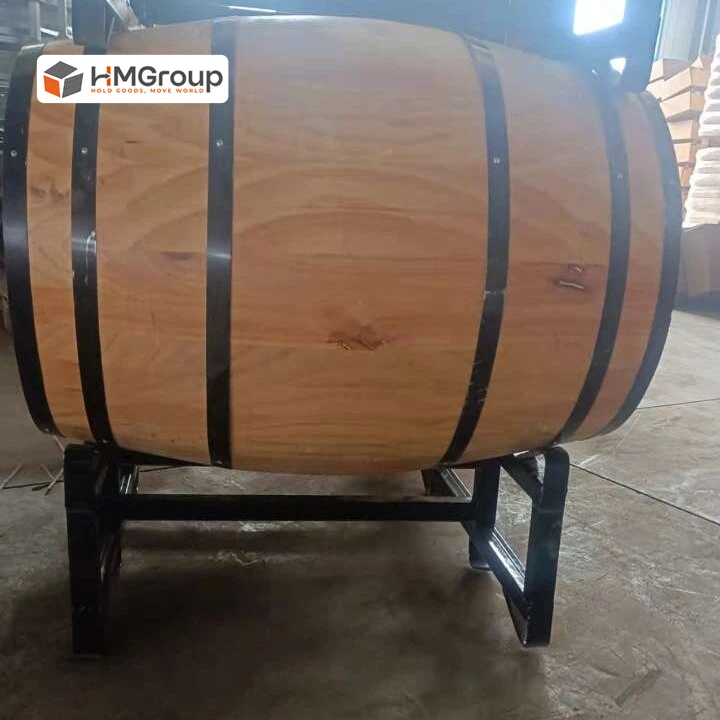

The Barrel Black Rack focuses on strength, stability, and easy handling. The Q235 steel frame loading capacity of 500 kg. The cradle shape seats the barrel firmly and prevents movement during filling, sampling, or cleaning. Two-high stacking turns empty air into useful vertical space without adding complex parts. Finish options match the environment: powder coating for clean indoor rooms, galvanized for general corrosion resistance, and hot-dip galvanizing for wet or coastal sites. For export, up to 234 sets can be loaded in a 40' HQ, lowering freight per rack. In seismic regions, a stable base and low center height reduce tip risk compared with loose floor storage. A simple design means fewer parts to fail, easier cleaning, and faster daily use.
Advantages
Anti-rolling design keeps barrels securely in place.
Custom-fit sizing for different barrel capacities (50L–500L).
Durable Q235 mild steel structure with a loading capacity of 500kg.

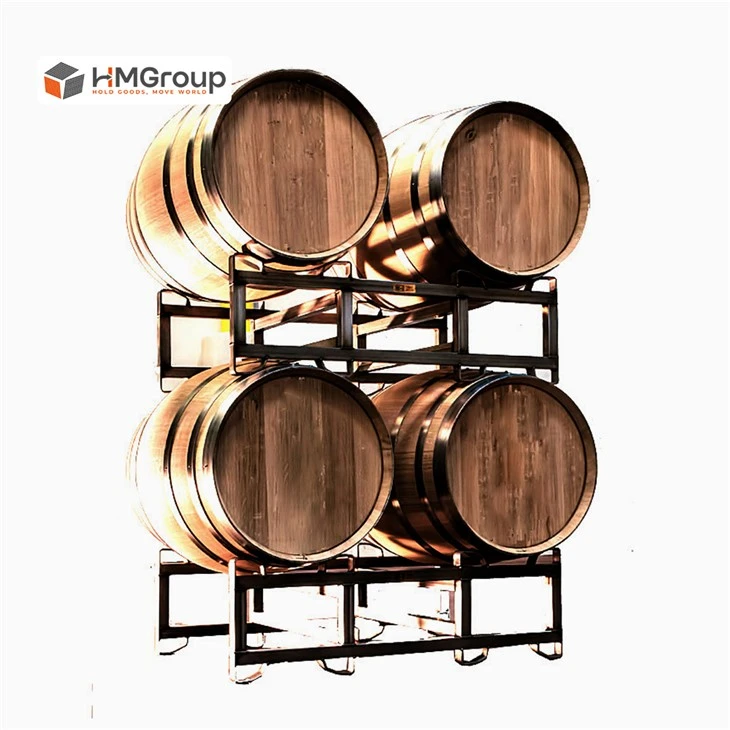

The fixed structure is more stable when stacked.
Products Customized
Use the Barrel Black Rack in vineyards, wineries, breweries, and distributor warehouses where floor space and safety matter. In barrel rooms, it creates clear rows, improves airflow around staves, and gives staff clean access for racking, topping, and SO₂ checks. During harvest peaks, two-high stacks free up lanes for pumps and hoses. In tasting rooms or show cellars, the clean black finish presents a neat, uniform look. For earthquake-prone areas, they lowers fall risk versus loose barrels or improvised blocks.
Application
The stacking steel barrel racks are ideal for facilities where vertical storage is necessary. Wineries can stack barrels in organized rows while maintaining safe access for inspection and cleaning. In larger storage warehouses, they help maximize storage density while keeping barrels stable during movement.
Hot Tags: barrel black rack, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model |
Size (LXWXH ) |
Load 40HQ sets |
Loading |
Forklift opening |
|
HM-BR066 |
1130×775×453 mm |
234 |
66 Gallon |
7 |
|
HM-BR015 |
44.5x20x14 inch |
520 |
15 Gallon |
7 |
|
HM-BR030 |
44.5x24x14 inch |
378 |
30 Gallon |
7 |
|
HM-BR053 |
44.5x30.5x14 inch |
264 |
53 Gallon |
7 |
| HM-BR8382 | 838x820x355.5 mm |
378 |
100 kg |
4 |
|
loading |
2 barrels per rack |
|||
|
Material |
40x40x1.5 tube with 6X40 mm plate. |
|||
|
Finish |
Powder coating, ZINC, and HDG |
|||
|
Features |
1. Simple and effective design. |
|||
Similar Product
We customize the Barrel Black Rack to match your cellar and workflow. Size changes can fit special barrel types or tight aisles. We offer three finishes-powder coat, zinc galvanized, or hot-dip galvanized-plus custom colors for brand matching. Need different spacing for hose clearance? Lead times depend on quantity and finish; Send your drawing or tell us your barrel sizes, aisle width, and stacking plan; our CAD team will return a simple layout for review.
Video
See how easy and safe it is to move the Barrel Black Rack with a forklift. In this short video, you will watch a barrel racking loaded with barrels being lifted, transported, and set down with ease. The smooth handling highlights the strength of they and the convenience of forklift operation. Click to watch how they forklift and work together to save time, reduce risk, and keep operations running smoothly.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Our factory is equipped with 7 semi-automatic welding machines that ensure precision and consistency in every barrel rack. These machines allow us to create strong weld joints that meet the high load-bearing requirements of up to 500 kg per rack. The semi-automated process guarantees both speed and accuracy, reducing human error and ensuring each weld can withstand years of use.
Quality Control
Each Barrel Black Rack undergoes weld integrity inspection, dimensional inspection, and static load testing to ensure it meets the 500kg load capacity. Coating thickness and adhesion are measured; galvanized parts undergo corrosion inspection. Random units undergo stacking load tests to confirm load stability. Each rack undergoes visual testing before packaging. Film wrapping and steel strapping protect the surface during shipping.
Packing and shipping
- Plastic banding+Stretch film wrapper, easy loading and unloading with standard forklift truck or pallet jack.
- Certainly, you can also customize the packaging.
Certificate
We are dedicated to showing that we are a dependable and exceptional partner for all of your requirements.
What Customers Say
We ordered 200 Barrel Black Racks for the new cave. Delivery was on time, and every unit arrived clean with no coating flaws. Setup was easy—one person could place and align racks without tools. The two-high stacks freed a full aisle for our pump cart. --- Sally
FAQ
Q: What materials are wine barrel racks made from?
A: They are made from Q235 mild steel for strength and durability.
Q: Can the racks be used for all barrel sizes?
A: No, each rack is customized for specific barrel capacities (50L, 200L, 225L, 300L, 500L).
Q: How many barrels does one rack hold?
A: Each rack holds two barrels side by side, or a more quantity can be customized.
Q: Can the racks be stacked?
A: Yes, racks can be safely stacked up to two high.
