Wine Barrel Racking
HM Group's wine barrel racking is a perfect way to store your wine barrels. This type of rack uses angle mild steel construction perfect for durable, clean, maintenance-free utility.
Model No.: HM-BR066
Exterior Dimension: 1130Lx775Wx453H (mm)
Loaded in 1x40'HQ: 234 sets
Capacity: 50L, 200L, 225L, 300L, 500L etc.
Products Description
Wine Barrel Racking
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 2-4 tiers
Zinc/hot dip galvanized/powder coating
Stackable to save space
Available design: Single/ID Plate/Castor/Multiple barrels storage/Color
Application: Brewing Industry/Breweries/Wineries/Logistics & Warehousing/Industrial Storage & Handling
HM-BR066
Model No.
2 Barrels
(Standard 225L/228L)
Capacity
1130×775×453 mm
Exterior dimension
234 sets
Loaded in 1X40'HQ

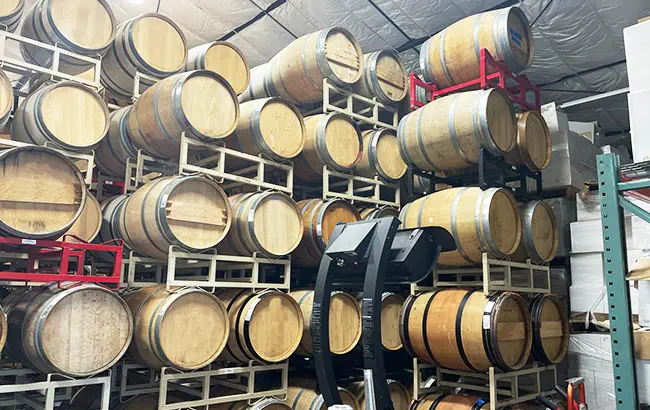

Wine barrel racking is a steel barrel rack for wineries, wine cellars, breweries, and related storage and handling areas. The listed reference size is 1130 × 775 × 453 mm. The rack is designed for organized barrel storage, stacking, and forklift handling when the floor condition, fork access, load arrangement, and approved configuration are suitable.
The page lists barrel volumes from 50 L to 500 L for the product range. This refers to the volume of the stored barrel, not the rack's load capacity. The ordered configuration should confirm the barrel size, number of barrels per rack, stacking arrangement, surface finish, and static load reference before production.

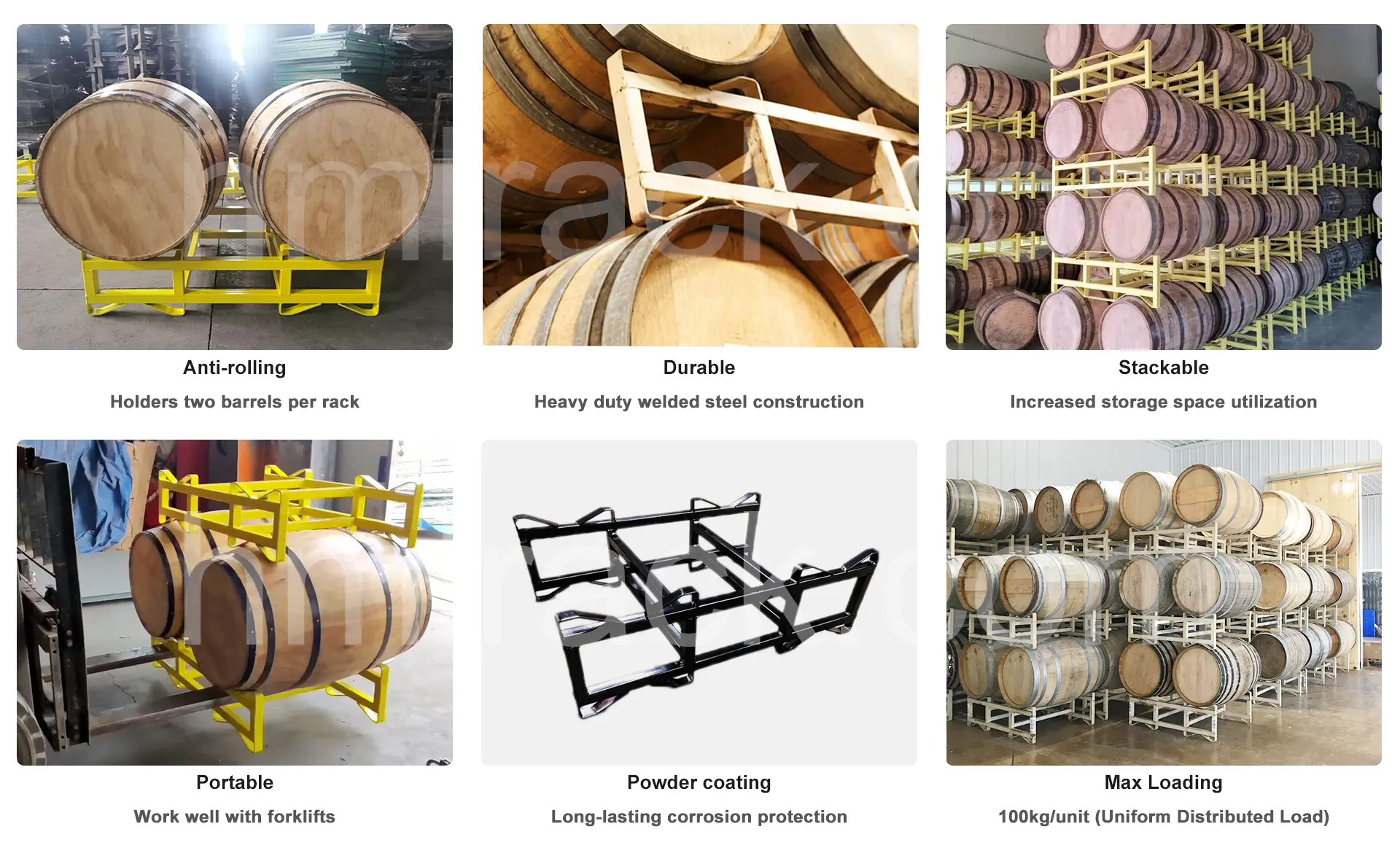

Advantages
Organized barrel support: The steel frame keeps barrels in a defined storage position instead of placing them directly on the floor.
Stacking option: The rack can be specified for the required stacking arrangement. The approved drawing should state the permitted tiers and load condition.
Forklift handling: Forklift access can be included for planned movement inside the winery or warehouse. Check the fork opening and equipment compatibility before use.
Finish selection: Powder coating, zinc, and hot-dip galvanizing are available options listed for this product range. The finish should match the indoor or outdoor exposure and maintenance requirements.
Products Customized
For specific storage requirements, we provide customized stacking steel barrel racks. Rack height, stacking capacity, and structural reinforcement can be adjusted according to warehouse conditions. Color options and coating types are also available to match customer preferences or brand identity.

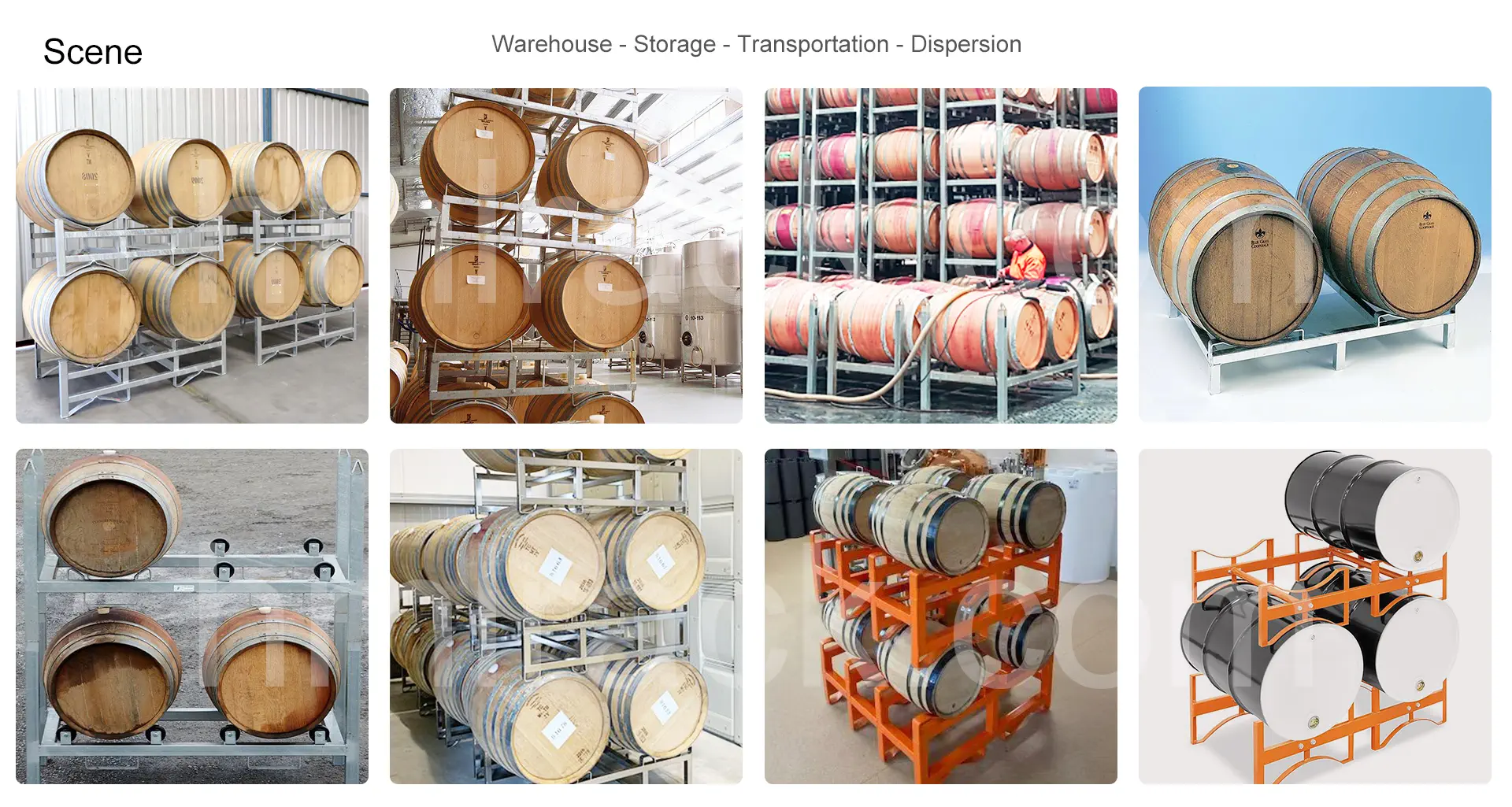

Application
Store wine barrels are intended for wine barrel storage and internal handling in wineries, cellars, breweries, logistics areas, and industrial storage facilities where the selected barrel type and rack configuration are suitable. Other barrel applications should be confirmed separately because barrel weight, size, chemical exposure, and surface-finish requirements may differ.
Hot Tags: wine barrel racking, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model |
Size (LXWXH ) |
Load 40HQ sets |
Loading |
Forklift opening |
|
HM-BR066 |
1130×775×453 mm |
234 |
66 Gallon |
7 |
|
HM-BR015 |
44.5x20x14 inch |
520 |
15 Gallon |
7 |
|
HM-BR030 |
44.5x24x14 inch |
378 |
30 Gallon |
7 |
|
HM-BR053 |
44.5x30.5x14 inch |
264 |
53 Gallon |
7 |
| HM-BR8382 | 838x820x355.5 mm |
378 |
100 kg |
4 |
|
loading |
2 barrels per rack |
|||
|
Material |
40x40x1.5 tube with 6X40 mm plate. |
|||
|
Finish |
Powder coating, ZINC, and HDG |
|||
|
Features |
1. Simple and effective design. |
|||
Similar Product
HM Group accepts customized, custom orders are also welcome. Our goal is to make your racks your way.
Video
The video shows a forklift handling demonstration. The actual safe load, stacking height, floor condition, and operating limits must follow the approved product configuration and site procedures.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support

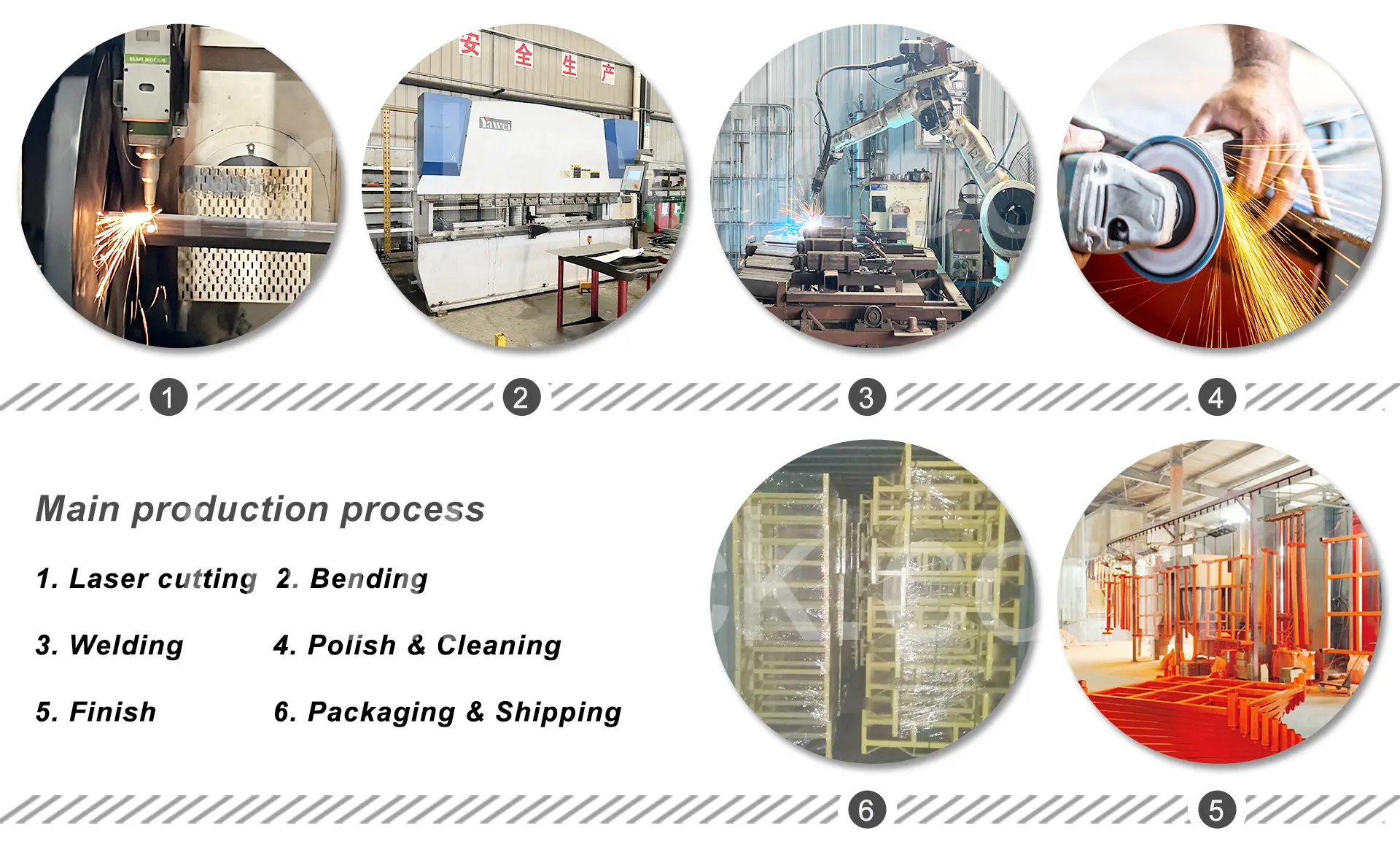

Production Process
Inside our workshop, automated machines and skilled workers produce warehouse barrel racks with high-quality welding and consistent quality control at every step. We operate multiple surface treatment production lines—covering both powder coating and galvanizing—to ensure timely processing and safeguard the fulfillment of your orders.
Quality Control
Huamao's QC team will have serious inspections from the raw material to product final loading.
Packing and shipping
Prevent scattering in shipping - plastic banding + stretch film wrapped
Certificate
We are dedicated to showing that we are a dependable and exceptional partner for all of your requirements.
What Customers Say
FAQ
Q: Does 50–500 L describe the rack's load capacity?
A: No. It describes the listed barrel volume range. The rack's static load reference must be shown as a separate verified value for the ordered configuration.
Q: How many barrels can one rack hold?
A: The number depends on the selected model and arrangement. The product specification and approved drawing should state the barrel quantity, dimensions, stacking tiers, and static load reference.
