Stackable Wine Barrel Racks
Stackable wine barrel racks help use cellar height when floor space is tight. They make fixed barrel rows for long ageing and keep the focus on safe storage instead.
Model No.: HM-BR066
Exterior Dimension: 1130Lx775Wx453H (mm)
Loaded in 1x40'HQ: 234 sets
Stackability: 2 - 4tiers
Load in 1x40HQ: 234pcs
Capacity: 50L, 200L, 225L, 300L, 500L etc.
Products Description
Stackable Wine Barrel Rack
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 2-4 tiers
Zinc/hot dip galvanized/powder coating
Stackable to save space
Available design: Single/ID Plate/Castor/Multiple barrels storage/Color
Application: Brewing Industry/Breweries/Wineries/Logistics & Warehousing/Industrial Storage & Handling
HM-BR066
Model No.
2 Barrels
(Standard 225L/228L)
Capacity
1130x775x453 mm
Exterior dimension
234 sets
Loaded in 1X40'HQ

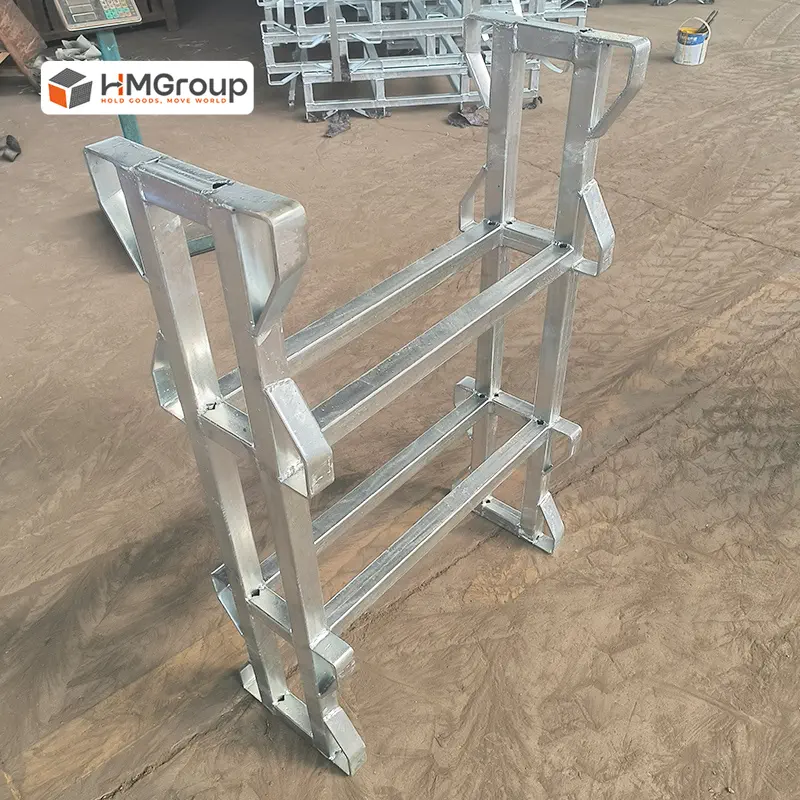

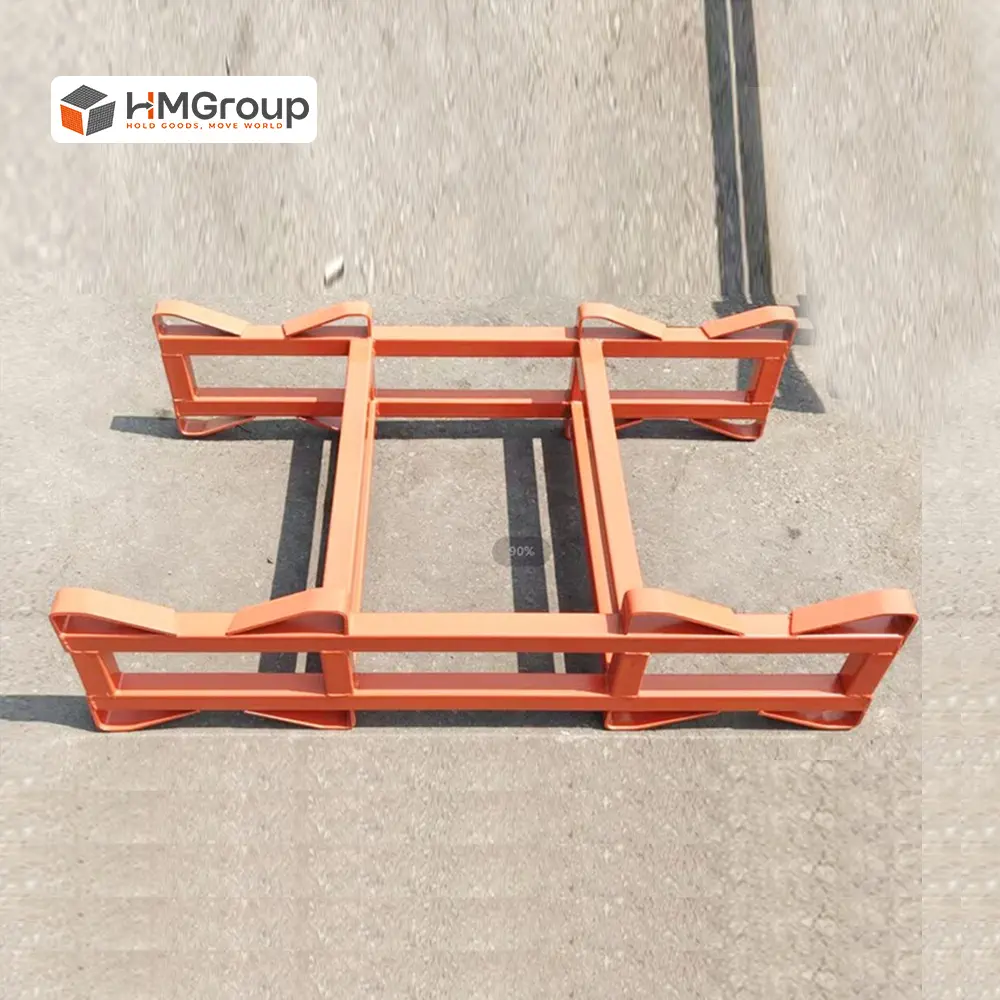

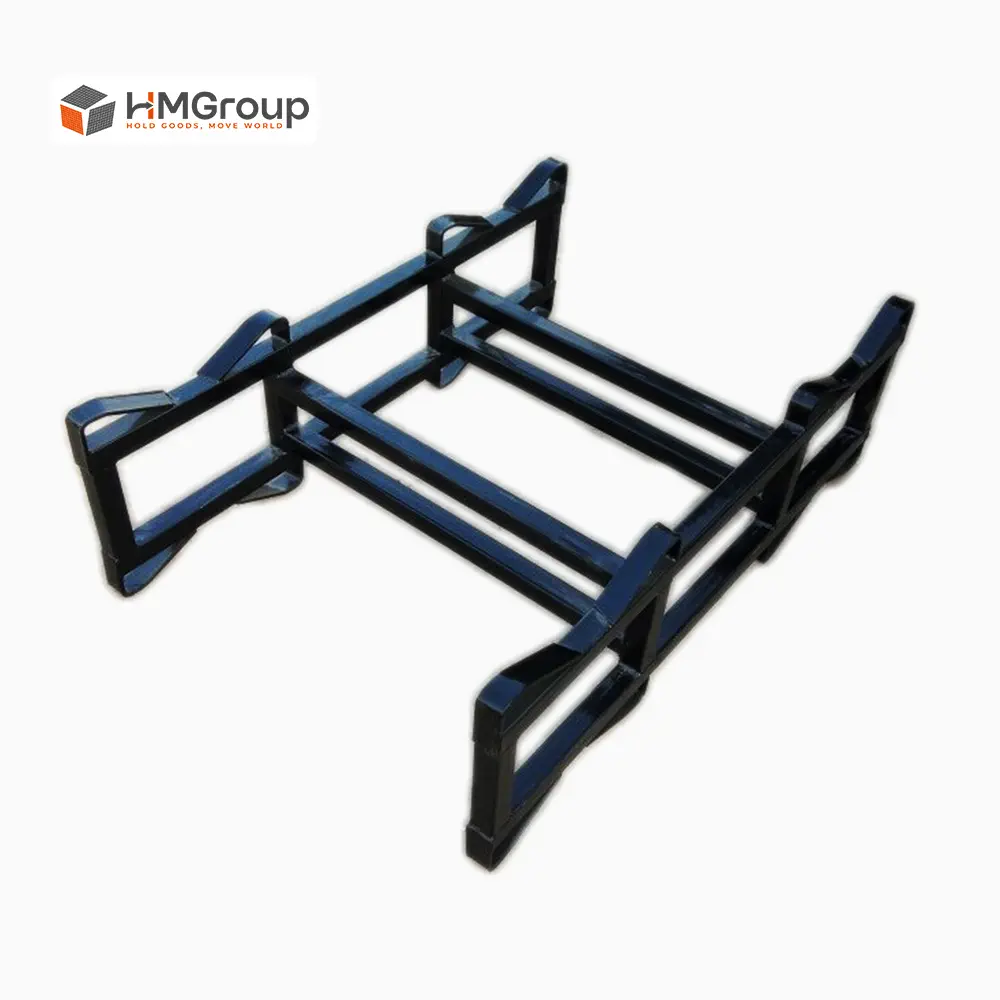

These stackable wine barrel racks help you use your cellar height. They create stable rows for long-term aging. A shaped steel frame supports each barrel on two sides. This design spreads the weight and protects the wood. Use these racks to organize your cellar and keep your barrels safe from ground moisture. Their purpose is simple: build upward for storage when the site allows it.
A four- or five-high plan may fit some cellars. It is not a set rule. Whisky oak wine barrel racks type, full barrel weight, floor, room height, and local rules all matter. The forklift works with one rack layer.
Advantages
- Built for storage: Not for multi-level forklift travel.
- Spread local pressure: Helps support the barrel body more evenly.
- One-layer handling: Keeps pickup work clear.
- Cellar Space Saving: Build rows upward to use all your room height.
- Wood Protection: Large contact points stop local pressure on the barrel body.
- Clean Floor Access: Lifts barrels off the floor for better airflow and cleaning.
Products Customized
Start with barrel count. Single-, double-, four-, and six-barrel units fit different row widths and storage blocks. The right choice depends on barrel size, aisle room, and the way the cellar divides its ageing area.
Wheels may fit a defined ground-level need. They do not turn a high stack into a mobile unit. This stackable wine barrel rack is mainly for static ageing, so the planned work method should guide the choice.
Application

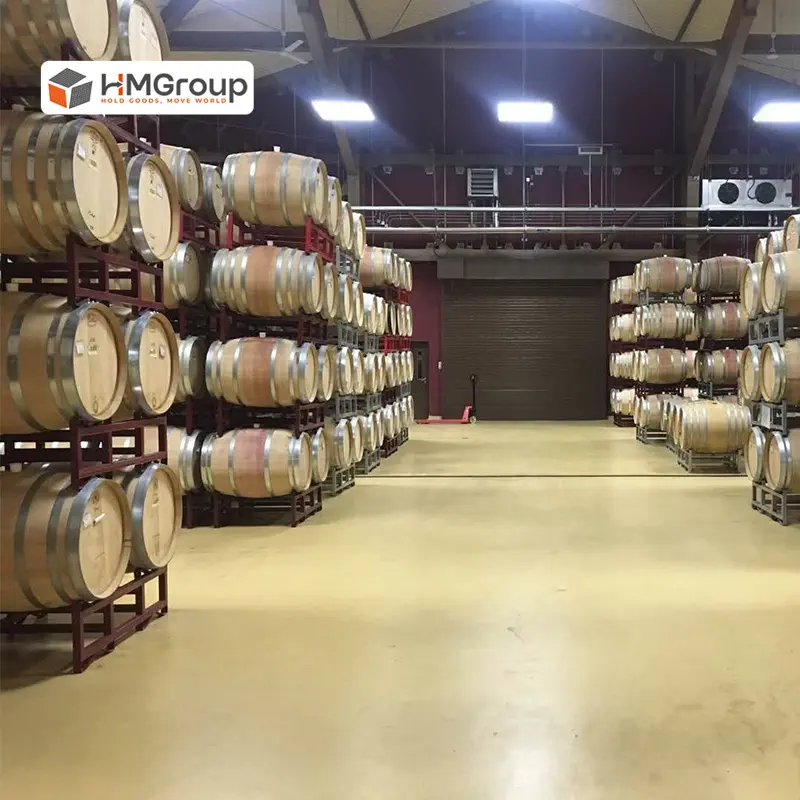

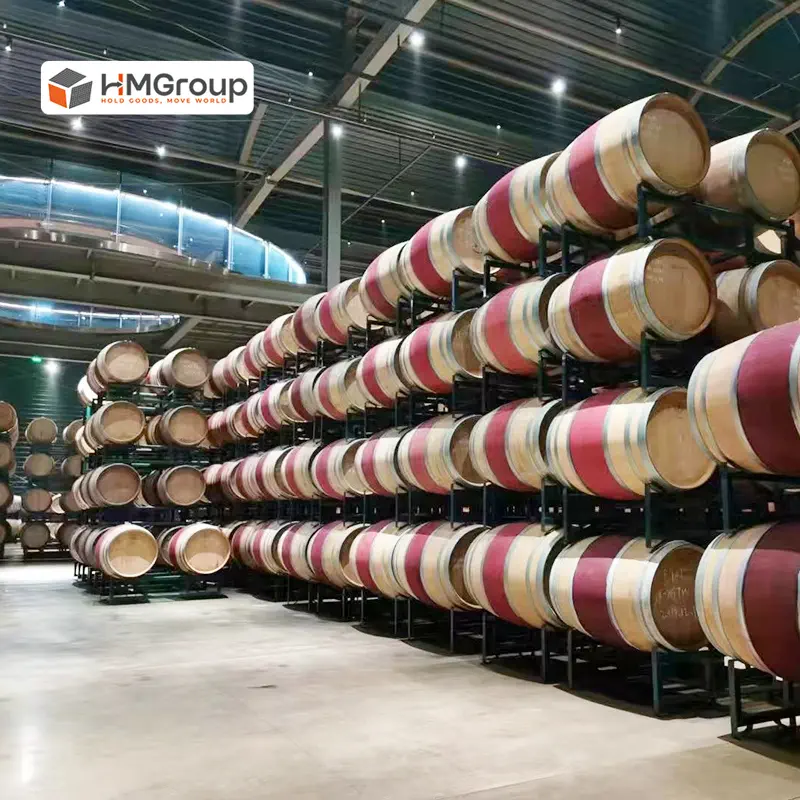

An indoor barrel room with limited floor space is a good setting for stackable wine barrel racks. The racks create vertical rows for barrels that stay at rest throughout ageing.
The lower rack carries the added load from above. Check the floor, barrel size, stack height, and rack type as one plan. A neat row is not enough on its own. Once the layout is set, the rack stays fixed and the forklift uses the set entry area for one layer.
Hot Tags: stackable wine barrel racks, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior Dimension LxWxH(mm) |
Loaded in 1x40'HQ |
| HM-BR066 |
1130x775x453 |
234 sets |
|
Capacity |
2 Barrel 66 Gallon or 50L, 200L, 225L, 300L, 500L etc. |
|
|
Material |
Mild steel Q235 |
|
|
Finish |
Powder coating/ Zinc/ Hot-dip galvanized |
|
The product series also includes models with wheeled frames and low-profile bases. A wide base can suit one row plan, while a compact frame works in a tighter area. Use your room size and barrel count to compare them with these stackable wine barrel racks.
Video
Stackable wine barrel racks help you save floor space. Watch how a forklift lifts one rack in this video. These mild steel racks are strong and safe.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Jig-based welding holds the frame parts in the right place during welding. This gives the team a fixed guide instead of visual adjustment. For stackable wine barrel racks, this helps keep the frame shape consistent across a batch.
Quality Control
Our team checks the support point for surface smoothness. We make sure there are no sharp edges that could scratch your wine barrels. We also verify the dimensions to ensure that the racks nest perfectly when empty to save your cellar space.
Packing and shipping
- Plastic banding+Stretch film wrapper, easy loading, and unloading with standard forklift truck or pallet jack.
- Certainly, you can also customize the way of packaging.
Certificate
We are dedicated to showing that we are a dependable and exceptional partner for all of your requirements.
What Customers Say
We looked at our ceiling height before expanding the room. Stackable wine barrel racks helped us plan rows and ensure that forklifts can operate effectively within the space.
FAQ
Q: Can every cellar use a four- or five-high plan?
A: Set the height based on the rack model, full barrel load, floor, room height, forklift setup, and local safety rules.
Q: Do the racks connect mechanically?
A: No. Stability comes from the correct rack, matched barrels, proper stacking, and site review.
Q: Can a forklift pick up the full stacked group?
A: Keep the stack in storage. The forklift should pick up one rack layer only.
Q: How should we plan stackable wine barrel racks?
A: Start with barrel size, full weight, floor capacity, room height, aisle width, and forklift details. These facts help define a safe layout.
