Stacking Quakeproof Nestainer
Rolled fabric pallets can be stacked in multiple levels while keeping weight off the bottom layer. The steel frame separates each pallet level during storage. Forklift entry remains accessible from four directions. This layout is often used in textile warehouses storing large fabric rolls before cutting, packing, or shipment.
Model No.: HM-N1302
Exterior Dimension: 1300L×1200W×1200H mm
Loading Capacity: 1000 kg
Stackability: 4 high
Finish: Power Coating
Loading 1x40'HQ: 160 sets
Products Description
Stacking Quakeproof Nestainer
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 4 open
Powder coating (customized)
Nestable to save space
Safe and quakeproof
HM-N1302
Model No.
1000 kg
Loading Capacity
1300x1200x1200mm
Exterior dimension
160sets
Loaded in 1X40'HQ
Long fabric rolls are often stored in stacked pallet rows before outbound handling. The square tube frame helps keep upper roll pallets off lower loads during stacked storage. Mild steel Q235 is used for the main structure. In earthquake-prone storage areas, the stacking quakeproof nestainer keeps upper pallet loads separated during stacking. Steel corner posts help keep stacked pallets aligned during storage. Some textile warehouses use higher side frames for oversized rolls. Empty racks can be nested together after unloading.

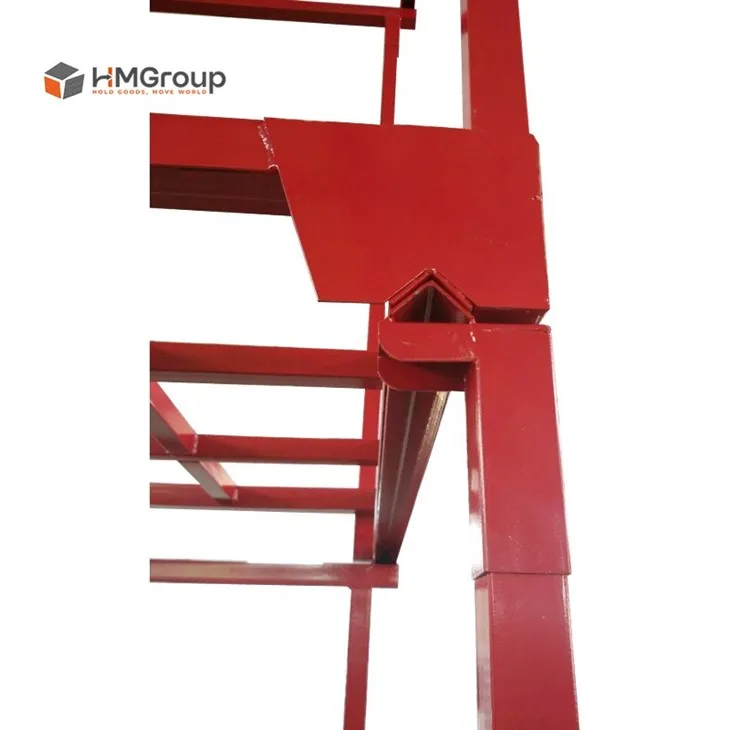

Advantages
- keeps fabric rolls off lower pallet levels
- fits multi-level fabric roll storage
- leaves forklift entry open from all sides
- empty units nest together after unloading
- suitable for stacked storage in seismic warehouse areas
Products Customized
This stacking quakeproof nestainer can be produced with different inner widths for oversized fabric rolls and longer pallet dimensions. Some textile warehouses use higher side frames for large roll storage and stacked pallet handling. Base spacing can also be adjusted for different forklift sizes and roll diameters. Detachable side structures are available for customers managing empty rack returns between factory locations.
Application

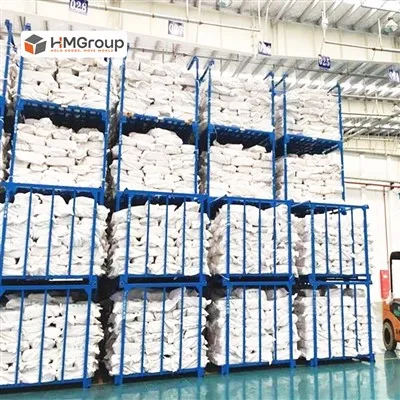

This stacking quakeproof nestainer is often placed in textile warehouses storing woven fabric, nonwoven rolls, carpet material, and industrial cloth. Large rolls are loaded directly onto pallets and stacked several levels high. The steel frame separates each pallet layer during storage and outbound loading. This type of rack is also used in export warehouses where loaded pallets remain in storage before container loading.
Hot Tags: stacking quakeproof nestainer, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior Dimension |
Interior Dimension |
Loading capacity |
Stackability |
Finish |
|
LxWxH(mm) |
LxWxH(mm) |
kg |
|||
|
HM-N1302 |
1300x1200x1200 |
1200x1150x1000 |
1000 |
4 |
Powder coating |
|
HM-N1304 |
1300x1200x1400 |
1200x1150x1200 |
1000 |
4 |
Powder coating |
|
HM-N1402 |
1400x1200x1200 |
1300x1150x1000 |
1000 |
4 |
Powder coating |
|
HM-N1404 |
1400x1200x1400 |
1300x1150x1200 |
1000 |
4 |
Powder coating |
|
HM-N1502 |
1500x1200x1200 |
1400x1150x1000 |
1000 |
4 |
Powder coating |
|
HM-N1504 |
1500x1200x1400 |
1400x1150x1200 |
1000 |
4 |
Powder coating |
|
HM-N1602 |
1600x1200x1200 |
1500x1150x1000 |
1000 |
4 |
Powder coating |
|
HM-N1604 |
1600x1200x1400 |
1500x1150x1200 |
1000 |
4 |
Powder coating |
|
Material |
Mild steel Q235 |
||||
|
Finish |
Powder coating |
||||
|
Available design |
Detachable/undetachable |
||||
|
Application area |
Textile industry, warehouse, logistics, tyre, auto industry, recycling, etc. |
||||
|
Remark |
Customized or OEM support |
||||
Similar Specification
This stacking quakeproof nestainer uses a fixed square tube frame for stacked roll storage. Some textile warehouses choose detachable versions when empty rack storage becomes a larger concern after unloading. Fixed-frame units are often used in fabric warehouses where loaded pallets remain stacked for extended storage periods.
----Other Types For Storage Tire -------------------------------------------------------------------------------------------------------------
Video
Frame stability and stacking strength are tested before shipment for each stacking quakeproof nestainer. Designed for more secure loaded stacking, this steel rack is used in warehouse storage, transport preparation, and industrial handling environments. Inquiry available for technical drawings or bulk purchasing.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
This stacking quakeproof nestainer is produced using tube positioning fixtures to keep frame dimensions consistent during batch welding. Mild steel Q235 square tubes are sorted by size before assembly.
Quality Control
Each stacking quakeproof nestainer completes a frame spacing inspection before packing. Corner post distance, inner width, and nesting clearance are checked after welding.
Packing and shipping
- Fully Protection - edges are bundled up by paper shells
- Prevent scattering in shipping - plastic banding + Stretch film wrapped.
Certificate
HM Group maintains strict quality standards, supported by certifications from ISO, SGS, BV, and APT, along with patented technologies. These recognitions reflect the company’s commitment to reliable manufacturing processes, product quality, and continuous innovation. Through these verified standards, HM Group ensures that its products meet international requirements and deliver dependable performance across global markets.
What Customers Say
"We use this stacking quakeproof nestainer for fabric rolls stored near our cutting area. The racks remain stable during stacked storage, and empty units can be nested together after shipment preparation."------Yordan Marev
FAQ
Q: Can this rack be used for large fabric rolls?
A: Yes. Inner width and frame height can be adjusted for oversized textile rolls and pallet dimensions.
Q: Can empty units be nested together?
A: Yes. Empty racks can be stacked together to reduce floor space after unloading.
Q: Can stacking quakeproof nestainer be used in seismic warehouse areas?
A: Yes. The steel frame keeps upper roll pallets off lower fabric loads during stacking.
