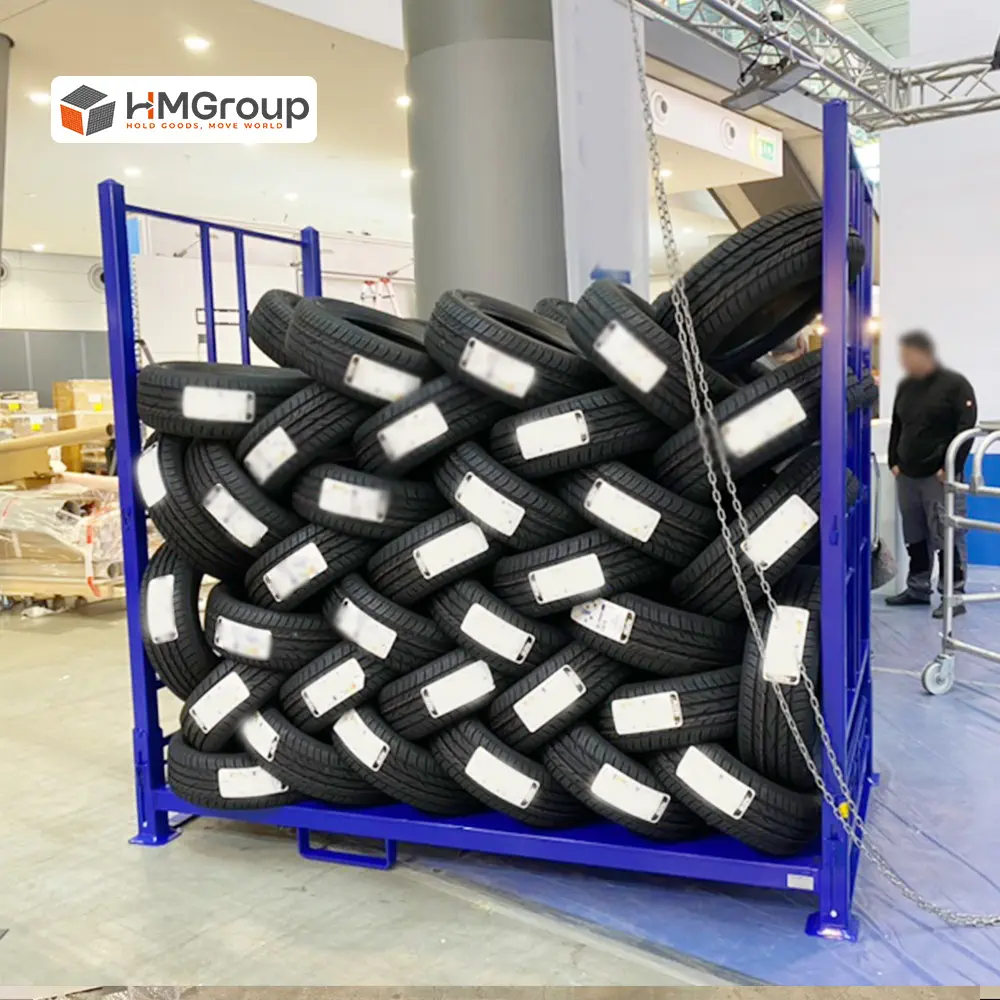

Car Tire Pallet Rack
A car tire pallet rack helps seasonal tire programs keep batches ready for the right branch, brand, or SKU. HM-TR4 supports planned storage before release.
Model No.:HM-TR4
Exterior Dimension:2310x1266x2200mm
Load capacity: 2400 lb / 1100 kg
Max. Stacked:4 open
Max. Stacked:20 closed
Tire capacity: 50 to 72 truck tires
Products Description
Car Tire Pallet Rack
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Max. Stacked: 4 open
Max. Stacked: 20 closed
Tire Capacity: 50 to 72pcs
Powder Coating (customized)
Tire type: Passenger car tires
Fully foldable to save space
HM-TR4
Model No.
2400 lb. / 1100 kg
Loading Capacity
2310x1266x2200
Exterior dimension
72sets
Loaded in 1* 40'HQ
A car tire pallet rack can help distributors prepare seasonal passenger tire batches before branch replenishment or dispatch. HM-TR4 uses upright side frames and a steel plate bottom structure to create a defined storage unit for the approved tire arrangement. The bottom can be made as an added steel plate surface or with openings, depending on the tire loading method and the approved project design. This design provides a stable base for the bulk storage of car tires.
Advantages
- Steel plate bottom structure so it won't fall off during tire loading.
- Foldable side frames for empty-rack planning.
- Stackable design for approved storage layouts.
- Color and rack ID options for seasonal batches.
- Project review for tire size and storage method.
Products Customized
For a car tire pallet rack program, color can separate tire batches by season, brand, or branch. Rack numbers, barcode label areas, or load plates can match the customer's stock system. The steel bottom design can be discussed around the approved tire arrangement and loading method.
Application
A car tire pallet rack can suit passenger tire distributors, retail supply networks, and seasonal changeover programs that need stock ready before demand increases. A warehouse may build tire batches for different branches, then hold them until each dispatch date.
Hot Tags: car tire pallet rack, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
HM-TR4 |
|
Exterior Dim. LxWxH |
2310x1266x2200 mm |
|
Load capacity |
2400LB./1100 kg |
|
Materials |
Steel |
|
Max. Stacked(open) |
4 |
|
Max. Stacked(closed) |
20 |
|
Tire capacity |
50 to 72 |
|
Loading 1*40'HQ |
72 sets |
|
Features |
Mobile, stackable, foldable sides |
|
Finish |
Powder coated |
Similar Recommended
|
Model No. |
Exterior Dimension LxWxH |
Tire capacity pcs |
Loading Capacity |
Max. Stacked open |
Max. Stacked closed |
1*40'HQ sets |
|
HM-TR6060 |
60"x60"x60" |
24 to 32 |
2400LB./1100 kg |
4 |
20 |
280 |
|
HM-TR-LR |
85"x 48.5"x 50" |
34 to 50 |
2400 lb. / 1100 kg |
6 |
20 |
140 |
|
HM-TR-FD |
72''x50''x80'' |
28 to 50 |
2400lb./1100 kg |
4 |
20 |
101 |
|
HM-TR1 |
2290x1100x1250mm |
36 to 55 |
600 kg |
4 |
20 |
110 |
|
HM-TR10 |
96"x46"x51" |
35 to 65 |
2400 lb. / 1100 kg |
4 |
20 |
70 |
|
HM-FR002 |
1521x1000x1360mm |
- |
500 kg |
4 |
20 |
126 |
|
Remark |
Customized or OEM support |
|||||
A car tire pallet rack should match the passenger tire program and storage method. HM-TR6060 may suit passenger and light truck tire reserve stock where detachable posts support the empty-rack plan. If you are concerned about the bottom tires being pushed out of the rack, opting for the Model TR7272 rack-which features wire mesh-offers a safer storage solution. Each option should be reviewed against the actual tire range.
Video

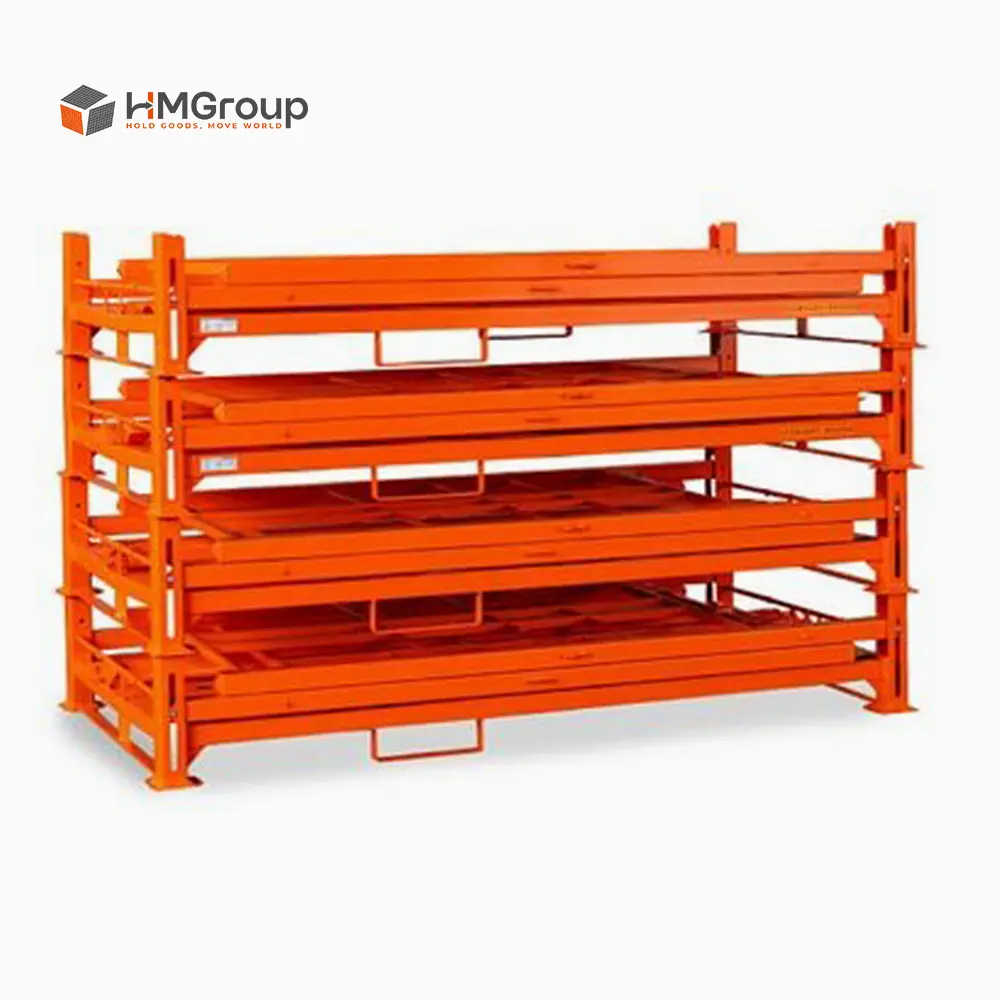

Built for heavy-duty use, this car tire pallet rack is made from strong mild steel Q235 and designed for a loading capacity of 2,400 lbs per unit. In this video, you can see how to fold, helping with storage in small spaces.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
For a car tire pallet rack, the pressed cup feet are welded to the prepared square tube frame. Fixture placement follows the order drawing so the parts remain aligned before later assembly. The welding step joins the base components and establishes the rack’s main steel structure.
Quality Control
For the rack, QC reviews the welded joint between the cup feet and square tube frame. The check covers part position, visible weld condition, and frame alignment against the approved drawing. Any visible issue is identified before the rack moves to the next production stage.
Packing and shipping
- Plastic banding+Stretch film wrapper, easy loading, and unloading with standard forklift truck or pallet jack.
- Certainly, you can also customize the way of packaging.
Certificate
Our commitment to compliance with certifications, including ISO, SGS inspection, BV test, APT test, and a patent certificate, ensures the high standards for HM Group
What Customers Say
The customer described the rack quality as good and the structure as sturdy after receipt.
FAQ
Q: Why use tire racks for seasonal inventory?
A: Seasonal inventory needs clear batch control before demand rises. A rack-based storage plan can keep tire groups assigned by branch, SKU, brand, or release date instead of mixing them across open floor locations.
Q: Can tire racks help reduce manual handling during peak season?
A: They can help by keeping approved tire batches in defined rack units. The actual handling method must match the tire arrangement, forklift equipment, and site procedure.
Q: How should seasonal tire batches be identified?
A: Use rack numbers, label areas, barcode locations, or color coding where the project requires them. The final marking method should match the warehouse stock system and branch allocation process.
