Folding Storage Stacking Rack
During seasonal production peaks, fabric rolls often remain on the warehouse floor while waiting for shipment or the next processing step. A folding storage stacking rack allows these loads to be stacked vertically without installing permanent racking, helping warehouses make better use of available floor space. The fabric rolls stackable racks provides a modular solution for fabric storage when fixed racking is unavailable or impractical. By allowing stacked storage of fabric rolls without floor contact, it maintains warehouse organization during volume fluctuations.
Model No.:HM-FR002
Exterior Dimension: 1521x1000x1360 mm
Load capacity: 500kg
Stackability: 2 - 4tiers
Load in 1x40HQ: 126pcs
Color: Powder coating color as per request
Products Description
Folding Storage Stacking Rack
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 2-4 high
Surface treatment: Colorful powder coating
Foldable to save space
HM-FR002
Model No.
500 kg
Loading Capacity
1521×1000×1360mm
Exterior Dimension
126 sets
Loaded in 1X40'HQ

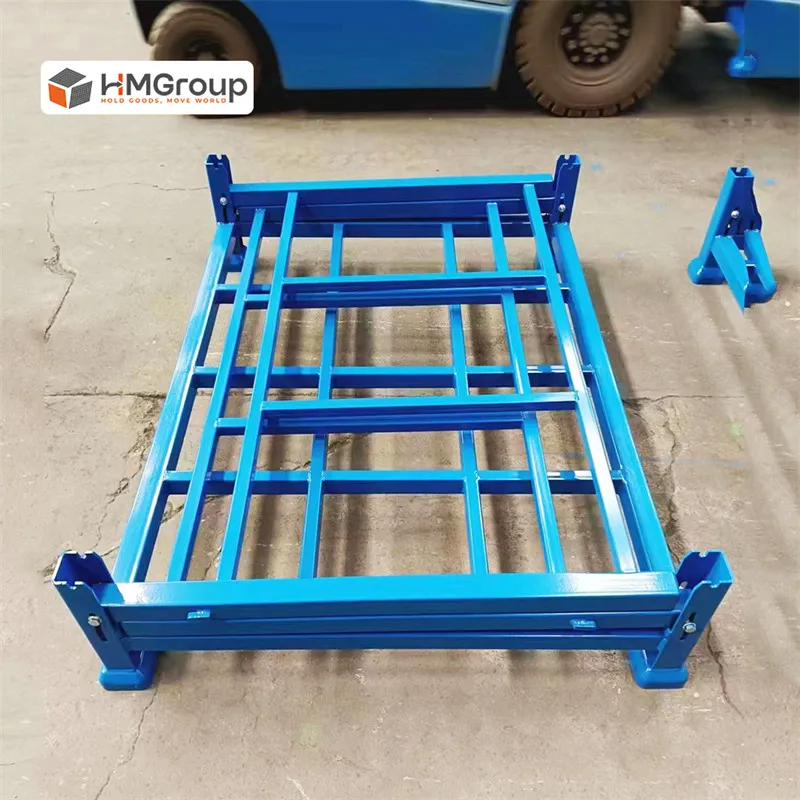

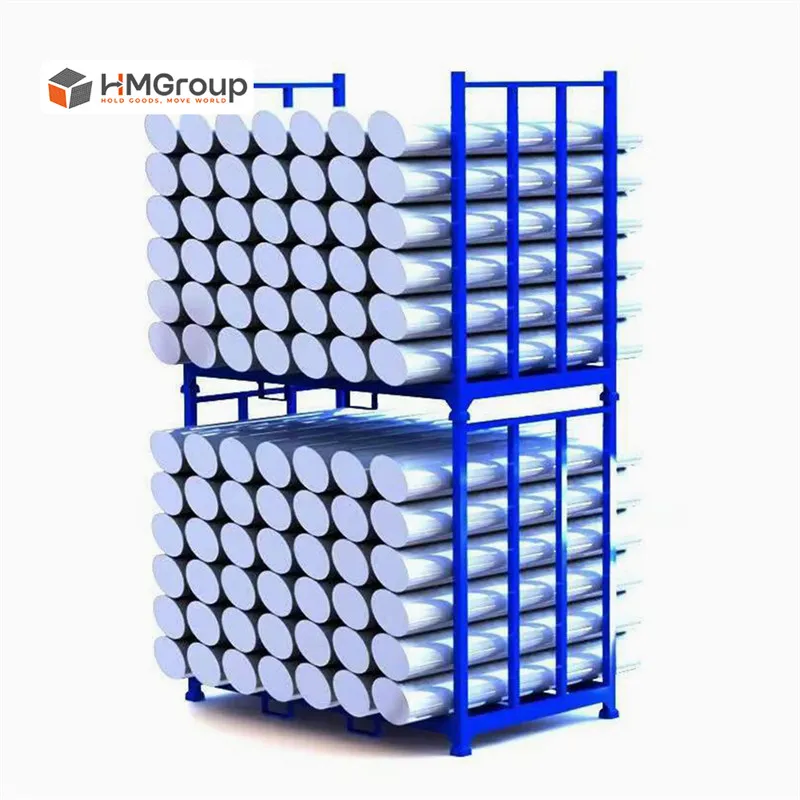

The folding storage stacking rack is manufactured from Q235 mild steel to support heavy fabric rolls in vertical stacks. Four vertical posts transfer the stacking loads directly to the base frame rather than onto the materials stored below. This prevents the compression of lower fabric layers, which is a common cause of permanent pressure marks in textile warehouses. The unit features four stacking cups at the top of the posts, ensuring stable alignment when multiple loaded racks are placed on top of each other. The base frame is designed with open forklift entry points, allowing for safe movement by standard warehouse equipment. Since the structure is made of metal, it remains stable in humid production environments. When not in use, the side can be folded, reducing the footprint for empty rack storage.
Advantages
✔ Higher floor storage capacity via vertical stacking
✔ Protects lower fabric rolls from compression damage

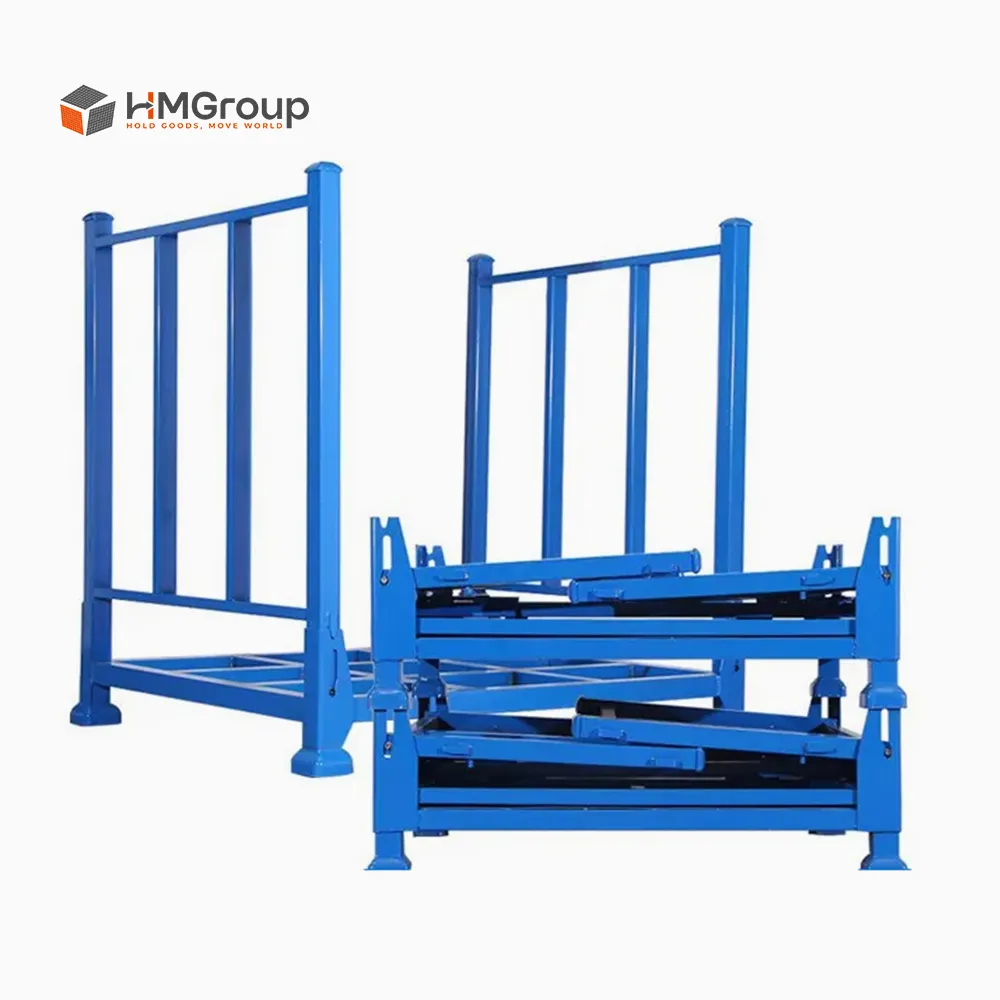

✔ Folds after unloading to reduce occupied storage area
✔ Forklift access from all standard entry sides
Products Customized
We modify the folding storage stacking rack based on the specific physical dimensions of your fabric inventory. The post height can be extended to accommodate larger roll diameters, while the base frame size is adjustable to fit within your existing warehouse aisle widths. For high-moisture environments like dyeing facilities, we provide hot-dip galvanized coating to prevent metal oxidation. You can also specify the load capacity requirements, typically 1000 kg per unit, by choosing different tube thicknesses for the frame. These modifications ensure that the equipment matches your forklift lift height limits and floor loading specifications, preventing unstable stacking or equipment overload during peak operation.
Application

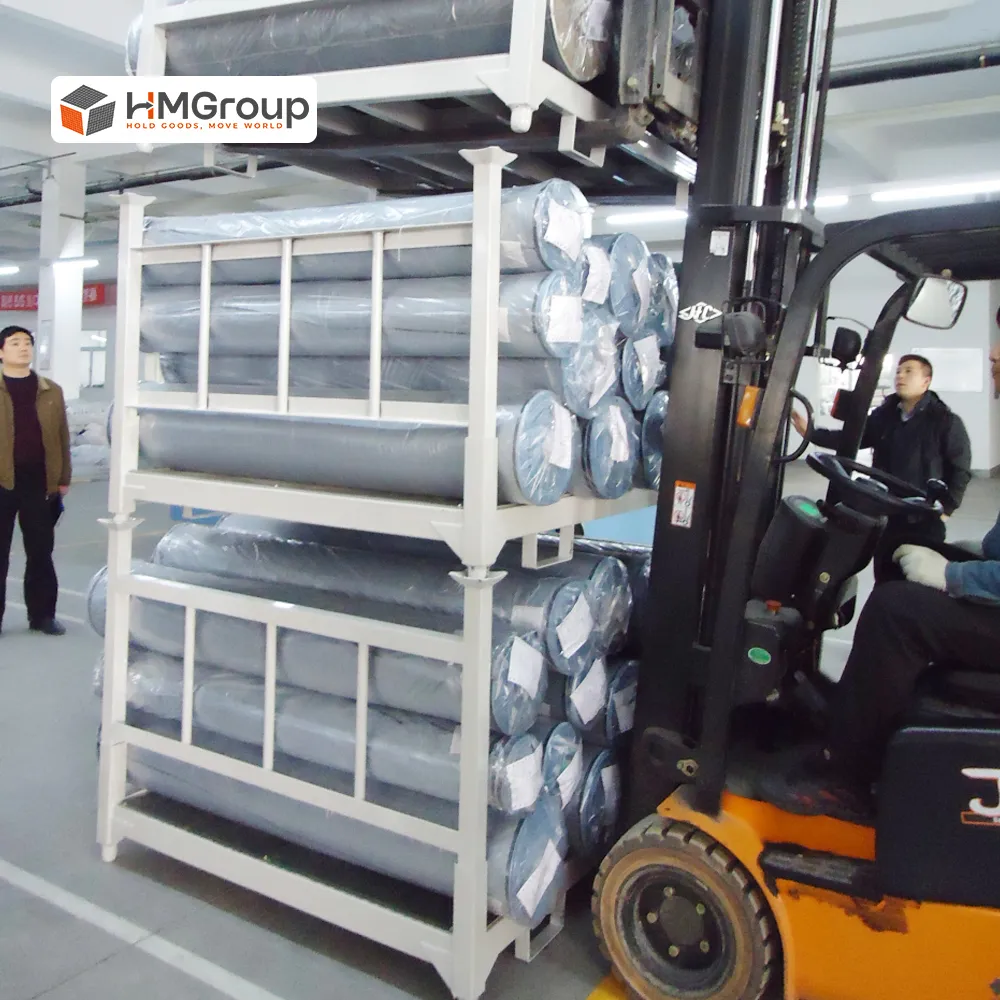

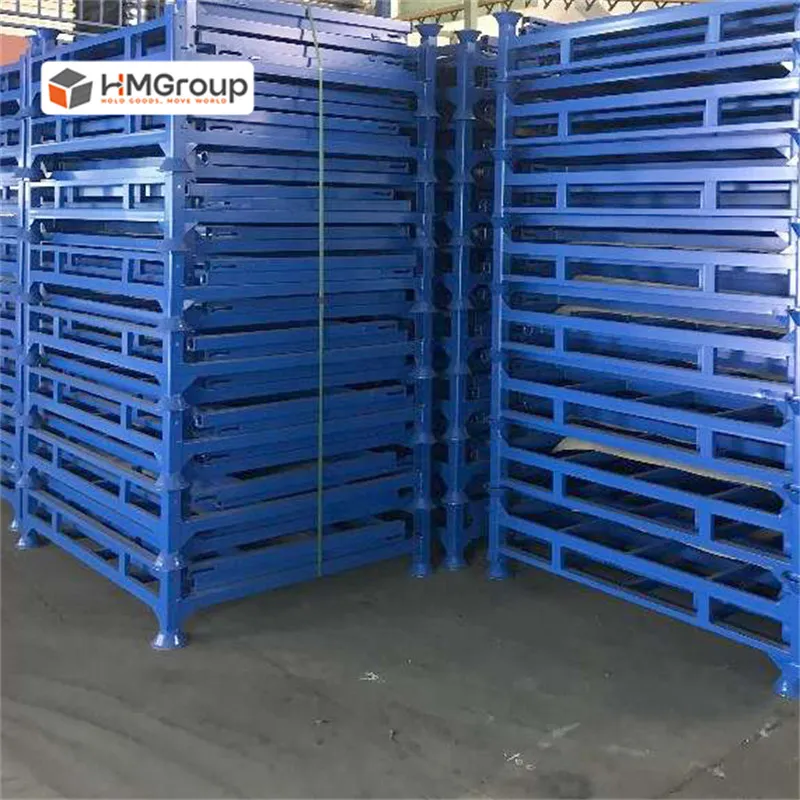

Forklift operators place fabric rolls horizontally onto the base frame of the folding storage stacking rack as they arrive from the finishing line. Once a rack is filled, the operator picks it up and aligns its bottom feet with the stacking cups of a rack already on the floor. This creates a stable vertical column of three to four units. During order picking, the forklift removes the top rack first to access specific fabric types without unstacking individual rolls. After the fabric is shipped, the warehouse staff removes the vertical posts and folds the frame. These empty units are then stacked in a designated corner, occupying minimal floor space until the next production peak.
Hot Tags: folding storage stacking rack, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior Dimension |
Loading Capacity |
Loaded in 1x40'HQ |
|
LxWxH |
kg |
pcs |
|
|
HM-FR001 |
1520x1380x1251 mm |
1500 |
82 |
|
HM-FR002 |
1521x1000x1360 mm |
500 |
126 |
|
HM-FR003 |
1540x1200x984 mm |
1000 |
90 |
|
HM-FR004 |
1100x1100x900 mm |
1000 |
80 |
|
HM-FR005 |
1500x1100x900 mm |
1100 |
320 |
|
HM-FR006 |
1500x1100x1600 mm |
1100 |
288 |
|
HM-FR007 |
48x48x36 inch |
1100 |
380 |
|
Application area |
Warehouse, logistics, and the textile industry |
||
|
Stacking |
2-4 tiers |
||
|
Finish |
Powder coating color as per your request |
||
Similar Specification
Different storage conditions often require different rack structures. Along with the standard folding storage stacking rack, we also manufacture reinforced models for heavier fabric rolls, nesting racks for warehouses that frequently return empty units, and side-post designs that help keep rolls in position during transport. Different frame sizes, post heights, and loading capacities are available to match various fabric dimensions and warehouse layouts. Many customers purchase several rack types together so that the same supplier can cover raw material storage, work-in-progress handling, and finished goods storage with compatible equipment.
Video
This video shows how a folding storage stacking rack is folded after the fabric rolls have been removed. The posts are folded down and the empty racks are stacked together, reducing the floor space required between production cycles or before the next shipment. Custom sizes and loading capacities are available.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Robotic welding is used for the main structural joints of the folding storage stacking rack; the frame dimensions, stacking cups, and fork entry openings are checked before surface treatment. This ensures that each post aligns correctly during high-density stacking.
Quality Control
Static loading tests are carried out to verify structure strength and stacking stability before shipment. We measure the base structure for any signs of permanent deflection to confirm it meets the safety requirements for multi-layer stacking.
Packing and shipping
1. Plastic banding+Stretch film wrapper, easy loading and unloading with standard forklift truck or pallet jack.
2. Certainly, you can also choose the packaging as you request.
Certificate
HM Group maintains strict quality standards, supported by certifications from ISO, SGS, BV, and APT, along with patented technologies.
What Customers Say
“It is much easier to separate different fabric types now. The lower rolls stay in good condition even after several weeks of stacked storage.” — Warehouse Manager, Dalian Textile Hub.
FAQ
Q: What is the load capacity of the base frame?
A: Standard loading capacity is 1000 kg. Higher capacities can be customized according to your specific fabric storage requirements.
Q: Can I use the folding storage stacking rack with my current forklift?
A: Yes, the base entry is designed for standard forklift tines, but we can adjust the dimensions if you use specialized narrow-aisle equipment.
Q: Does the metal rust in damp environments?
A: We offer powder coating or hot-dip galvanizing to protect the steel frame from oxidation in high-humidity production areas.
Q: How many layers can I stack?
A: Depending on your floor loading limits and forklift reach, these units are typically stacked 3 to 5 layers high. We can recommend a suitable stacking height according to your warehouse conditions.
