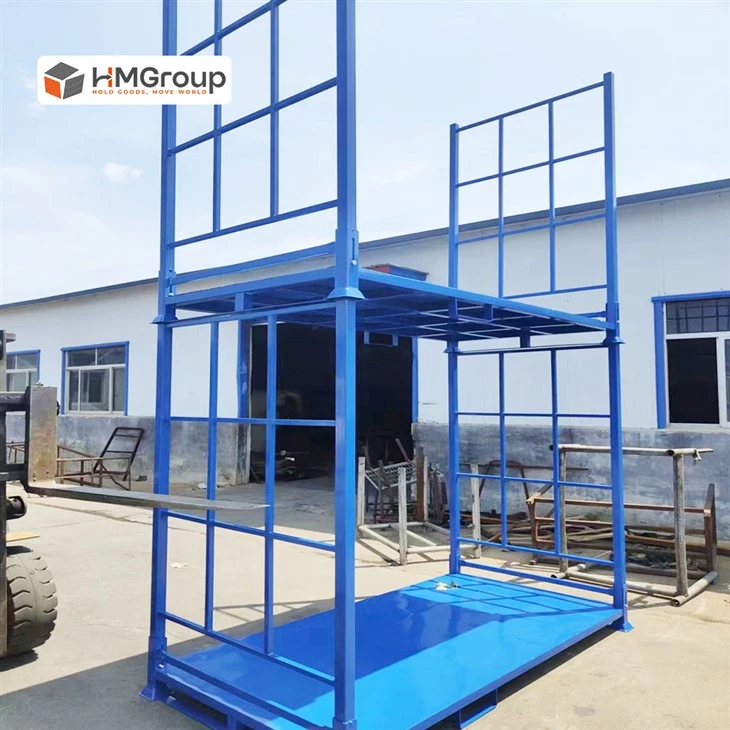

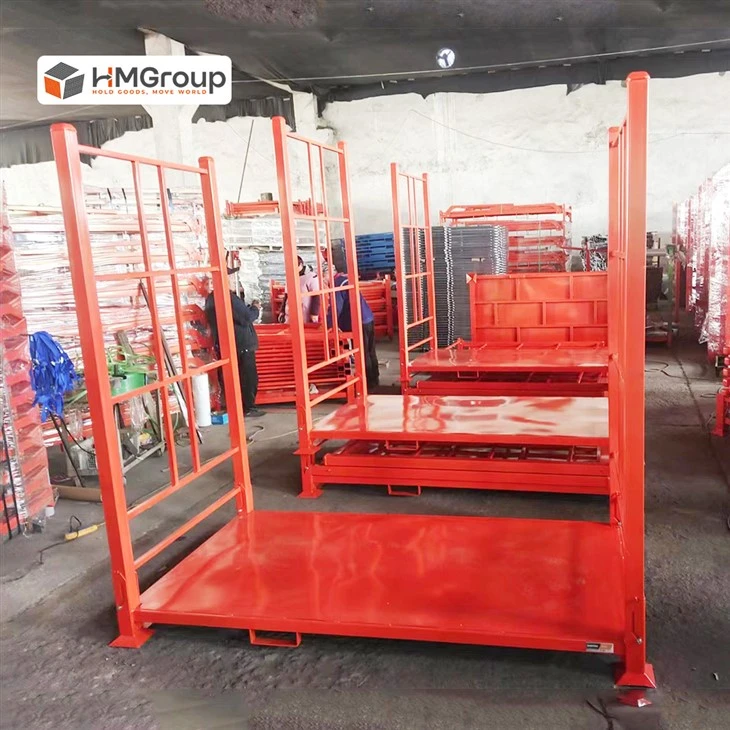

Tyre Storage Stacking Rack

Stackable and collapsible tyre storage stacking rack for small warehouse spaces. Powder coating to prevent rust, easy to load/unload, and holds tires safe. Forklift-friendly and space-saving.

Model No.:HM-TR4
Exterior Dimension:2310x1266x2200mm
Load capacity: 2400 lb / 1100 kg
Max. Stacked:4 open
Max. Stacked:20 closed
Application area: Warehouse, logistics, tyre, auto industry

Send Inquiry

Download

Products Description

Tyre Storage Stacking Rack

Manufacturing Excellence

Expertise Supplier

Warehouse Solutions

Reliability Partner

Benefits

Max. Stacked: 4/20 (open/closed)

Tire Capacity: 50 to 72pcs

Tire Type: Truck tires

Powder coating (customized)

Fully collapsible to save space

HM-TR4

Model No.

2400 lb. / 1100 kg

Loading Capacity

2310x1266x2200

Exterior dimension

72 sets

Loaded in 1* 40'HQ

Tire warehouses often need to store large volumes of inventory without occupying excessive floor space. This tyre storage stacking rack allows tires to be stacked vertically, allowing for up to 4 high, ideal for warehouses with limited floor space. When not in use, detachable posts allow the racks to be stored flat and stacked together to save floor space. The powder-coated surface helps improve corrosion resistance during daily warehouse use. Whether you store passenger car tires or truck tires, the steel structure keeps tire loads stable during stacking and forklift handling. It's simple to load, unload, and move by forklift.

Advantages

High-Capacity Tire Blocks: The listed tire capacity supports larger truck-tire inventory blocks for distribution planning.

Seasonal Layout Changes: Use more units during tire-change peaks, then prepare empty units for compact storage when stock falls.

Large Footprint Control: The rack creates a defined storage area for high-volume inventory instead of loose tire piles.

Warehouse Batch Planning: Separate units can be assigned by tire brand, delivery wave, or distributor order.

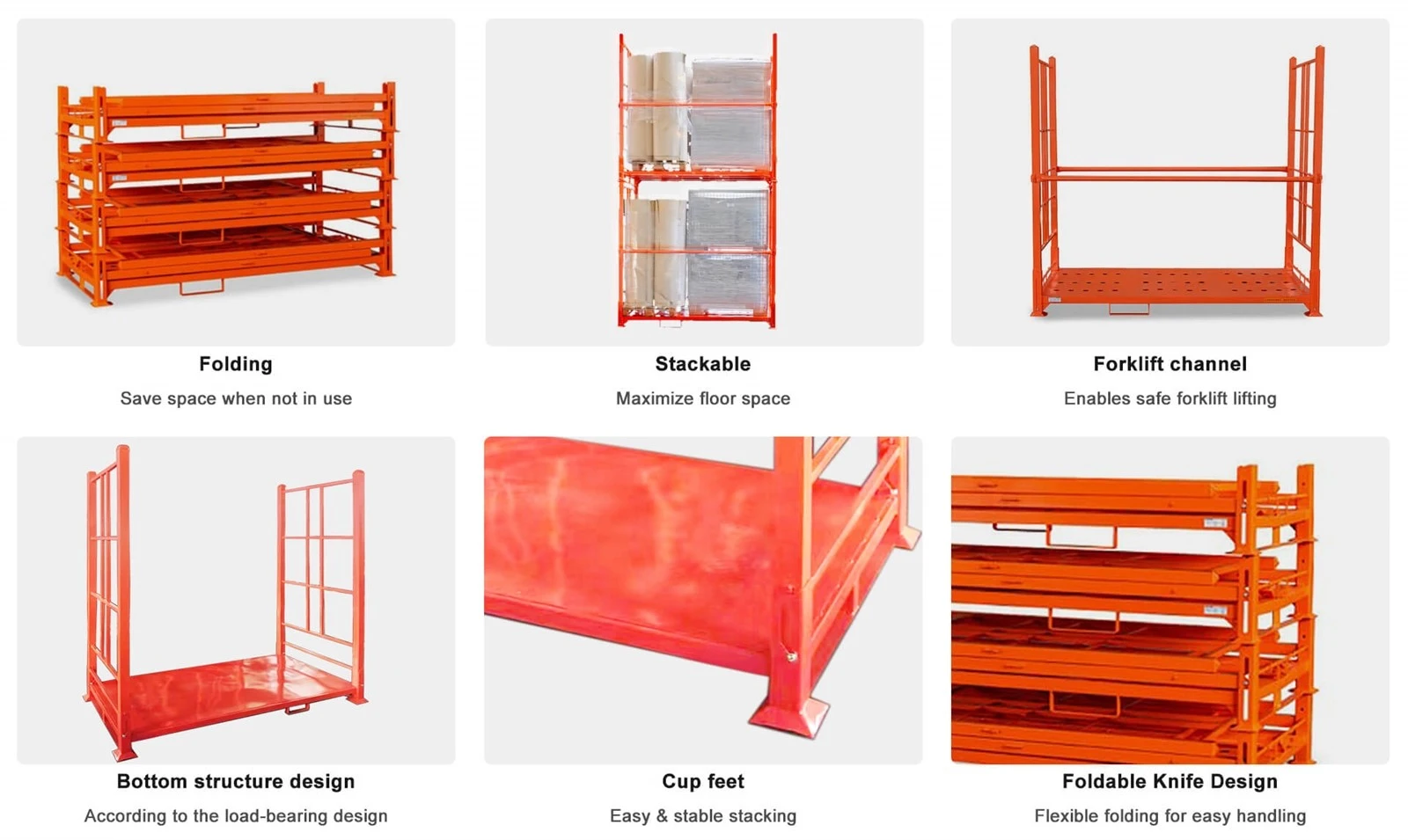

Tire Rack Details

Products Customized

HM Group offers custom sizes and designs for heavy truck tire racks.

Tire Rack Customization Options-FD

Application

This tyre storage stacking rack is used in supermarket warehouses and large service centers to store tires by brand or size. It improves stock rotation and keeps tires off the floor, preventing moisture damage. During peak seasons, racks can be arranged more densely to increase tire storage capacity. When the warehouse slows, the racks can be collapsed and stacked when not in use or stacked to free up space. Ideal for tire distributors and service centers with seasonal inventory fluctuations.

steel adjustable tire rack

Hot Tags: tyre storage stacking rack, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China

Specification

Model No.	HM-TR4
Exterior Dim.	2310x1266x2200 mm LxWxH
Load capacity	2400LB./1100 kg
Materials	Mild Steel Q235
Max.Stacked(open)	4
Max. Stacked(closed)	20
Tire capacity	50 to 72 Truck tires
Loading 1*40'HQ	72 sets
Features	Mobile, stackable, foldable/removable sides
Color	Blue/ orange
Finish	Powder coated
Warranty	1 year

Similar Product

Model No.	Exterior Dimension LxWxH	Tire capacity pcs	Loading Capacity	Max. Stacked open	Max. Stacked closed	1*40'HQ sets
HM-TR6060	60''x60''x60''	24 to 32	2400LB./1100 kg	4	20	280
HM-TR7272WM	72"x72"x72"	42 to 63	2400LB./1100 kg	4	20	130
HM-TR-LR	85"X 48 1/2" X 50"	34 to 50 PCR-SUV - 7 TBR	2400 lb. / 1100 kg	6	20	140
HM-TR-FD	72''x50''x80''	28 to 50	2400lb./1100 kg	4	20	101
HM-TR-UTR	71 1/2''x49 1/2''x68 1/2''	42 to 63 PCR-SUV - 7 TBR	2400lb./1100 kg	4	20	90
HM-TR-SR	96"x46"x51"	35 to 65	2400 lb. / 1100 kg	4	20	70
HM-TR1	2290x1100x1250mm	36 to 55	600 kg	4	20	110
Remark	Customized or OEM support

The tyre storage stacking rack has a corrosion-resistant surface and is suitable for wet or outdoor locations. Powder coating gives long-term durability and color coding. Reinforced steel base plates help stock heavier tires long-term. Add forklift access chains for mobile handling.

Similar Tire Rack Models

Video

Join us in this video where we assemble tyre storage stacking rack! With easy-to-follow instructions and close-up views, you’ll be ready to tackle this project and get your tires stored neatly.

HM Group

——

Hold Goods, Move World

- Experienced manufacturer and exporter since 2003.

- Export Quantity: Around max 300 containers per month in 2023

- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou

- Offer custom-designed to suit your every need

- OEM, ODM support

Production Process

We keep things simple and smooth. Once you confirm your order, the Project leader follows up from start to finish. team will update you during production, keep track of delivery, and respond fast to any questions. We aim to reduce back-and-forth and keep your work stress-free.

tire racks for trucks

Quality Control

The HM-TR4 review is based on the approved high-volume storage layout. Staff check the ordered base size, post height, frame condition, and selected finish. Where the order includes marking or handling changes for distributor stock, those details are checked against the approved order record before shipment preparation.

Tire Rack Quality Inspection

Packing and shipping

For distribution inventory orders, units are grouped according to the approved configuration. Strapping and protective wrap are used as agreed for transport. If the order requires brand, size, or delivery-wave identification, the outer packing mark can follow that reference to support receiving and storage allocation.

Tire Rack Packaging

Certificate

HM Group maintains strict quality standards, supported by certifications from ISO, SGS, BV, and APT, along with patented technologies.
