Fabric Warehouse Rack
When finished fabric rolls exceed the available storage area, production aisles and handling routes can quickly become crowded. Fabric warehouse rack provide a flexible way to create additional storage rows without installing permanent racking systems. These free-standing racks allow textile facilities to adjust their warehouse layout according to seasonal production changes, temporary stock increases, or changing material requirements.
Model No.:HM-FR002
Exterior Dimension: 1521x1000x1360 mm
Load capacity: 500 kg
Stackability: 2 - 4tiers
Load in 1x40HQ: 126pcs
Color: Powder coating color as per request
Products Description
Fabric Warehouse Racks
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 2-4 high
Surface treatment: Colorful powder coating
Foldable to save space
HM-FR002
Model No.
500 kg
Loading Capacity
1521×1000×1360 mm
Exterior Dimension
126 sets
Loaded in 1X40'HQ

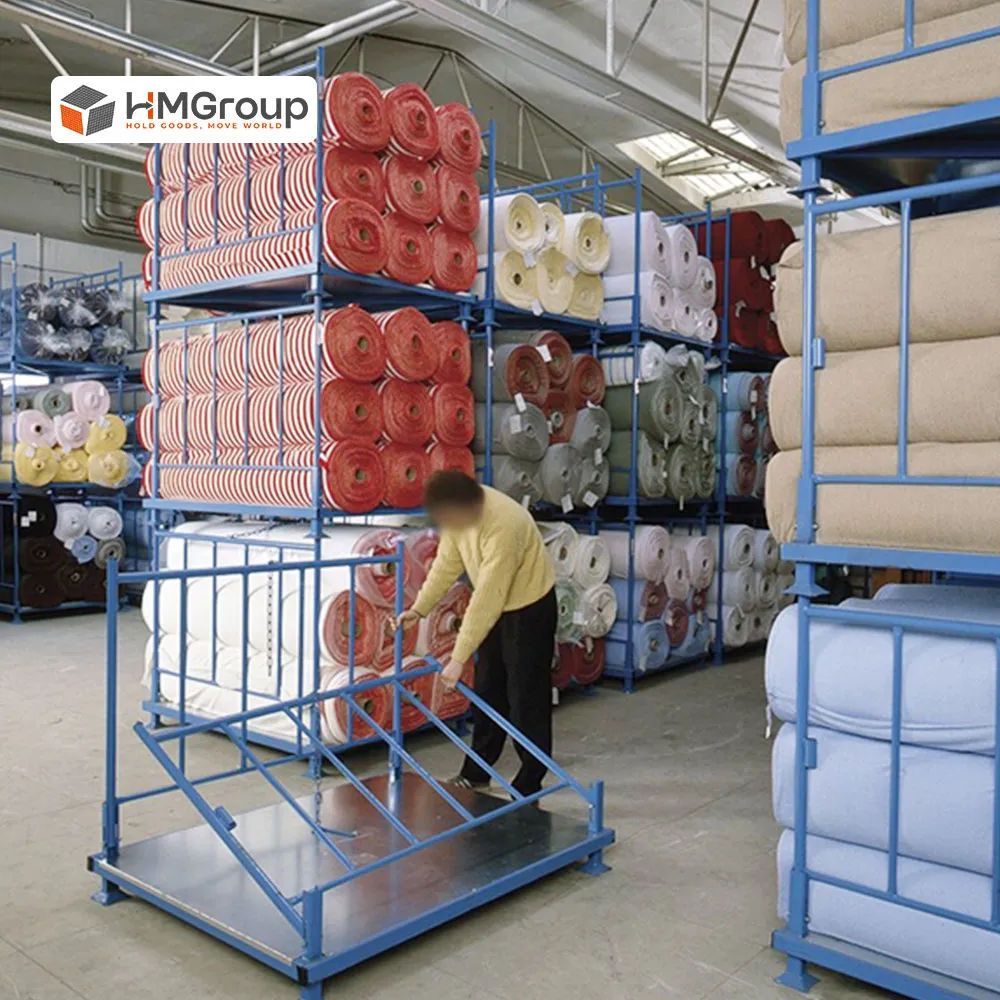

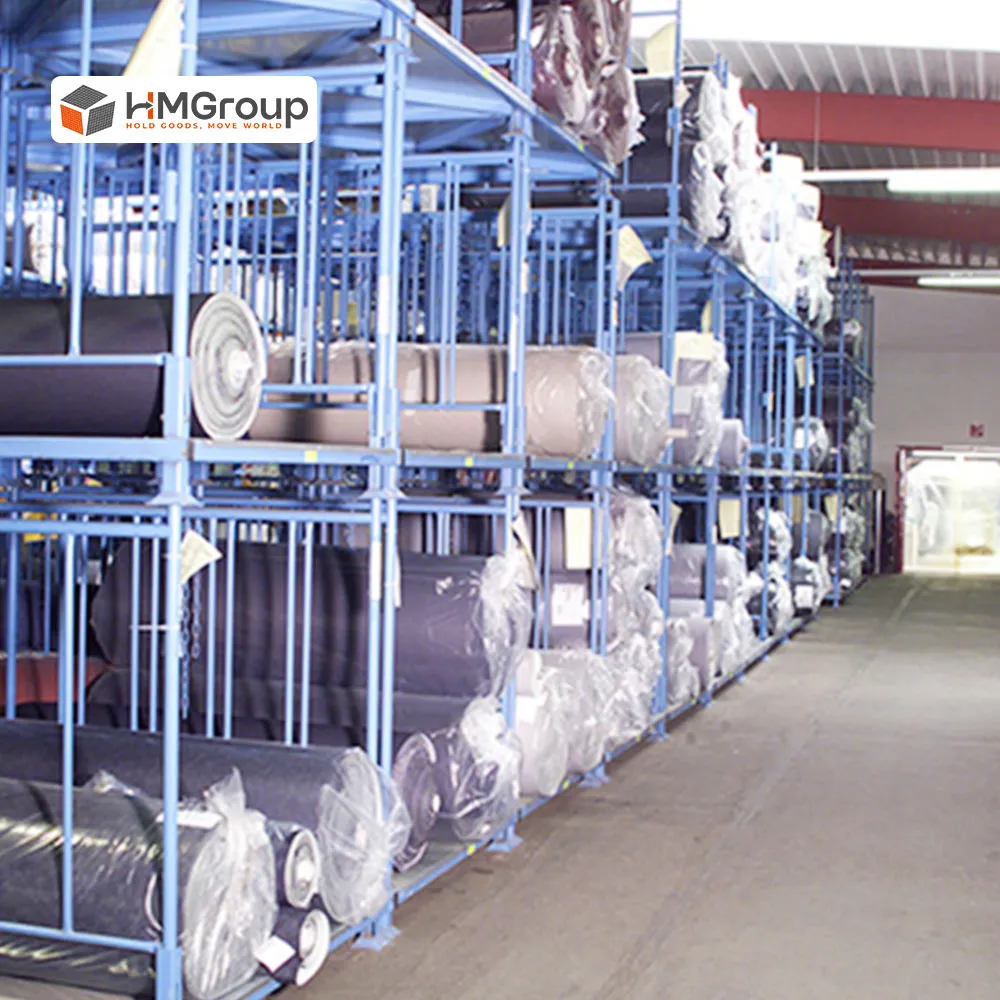

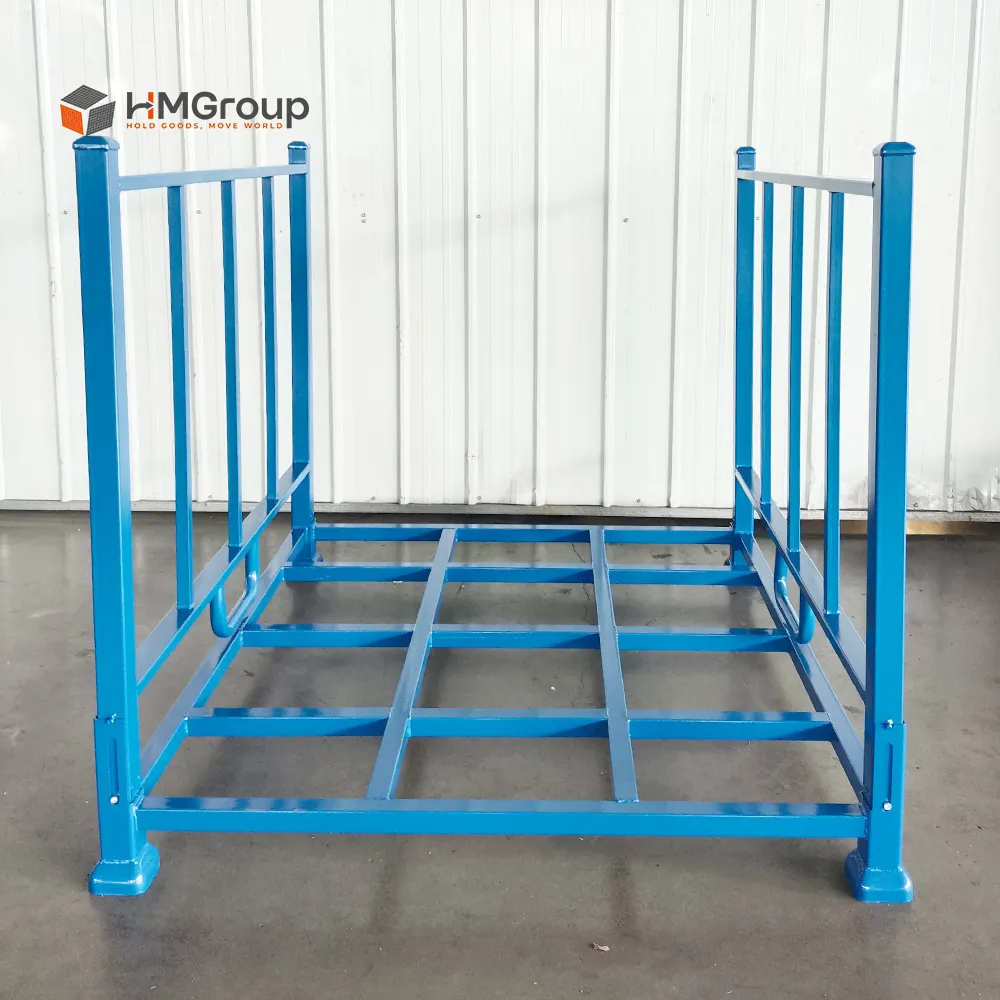

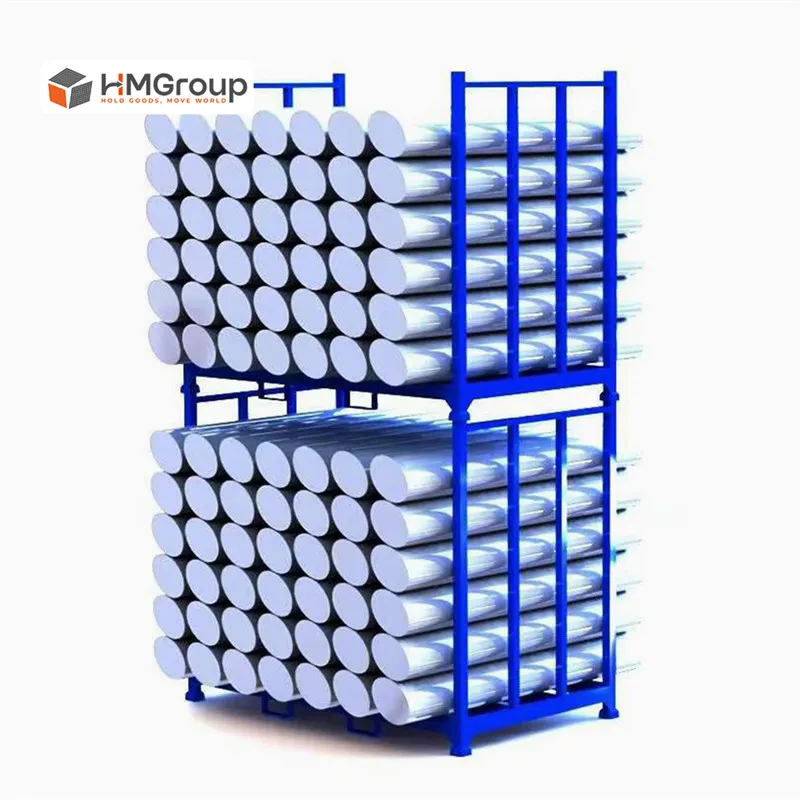

Fabric warehouse racks are free-standing steel rack for fabric rolls that need to be held in temporary warehouse positions rather than placed directly on the floor. Teams can relocate the system by forklift as a complete loaded unit, helping them create or remove overflow rows as inventory changes.
The rack keeps rolls assigned to a defined storage position while warehouse teams reorganize floor space around production peaks. This approach can be useful when a cutting room, inspection area, or dispatch zone needs clear access without committing the floor to permanent racking.
For empty-rack storage and return handling, use the folding or compact-storage procedure supplied for the ordered configuration. Confirm the required operating sequence, clearance, and handling method before deployment.
Advantages
- Creates temporary fabric-roll storage rows without permanent floor installation.
- Supports location-based organization for overflow stock and short-term staging.
- Allows forklift relocation of a loaded rack unit.
- Keep fabric rolls separated from direct floor contact.
- Helps release temporary storage positions after the related stock has been dispatched or moved.
- Can be specified for the roll size, available aisle space, and handling equipment used at the site.
Products Customized
The configurations shown below represent only a portion of the available options. Additional customization is available for structure, base design, side protection, forklift access, mobility, and surface finish to meet your specific storage and material handling requirements.
Application
The standard fabric warehouse racks reference is rated at 500 kg per rack unit and is shown for 2-4 tiers. The actual permitted stacking level depends on the approved rack configuration, evenly distributed load, fabric-roll geometry, load center, floor condition, warehouse clearance, and forklift capability.
Use the rack only on a flat, industrial floor. Before stacking or moving loaded units, confirm the current operating instructions for the supplied configuration. Do not use a generic stacking number as a substitute for a site-specific safety review.
Hot Tags: fabric warehouse rack, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior Dimension |
Loading Capacity |
Loaded in 1x40'HQ |
|
LxWxH |
kg |
pcs |
|
|
HM-FR001 |
1520x1380x1251 mm |
1500 |
82 |
|
HM-FR002 |
1521x1000x1360 mm |
500 |
126 |
|
HM-FR003 |
1540x1200x984 mm |
1000 |
90 |
|
HM-FR004 |
1100x1100x900 mm |
1000 |
80 |
|
HM-FR005 |
1500x1100x900 mm |
1100 |
320 |
|
HM-FR006 |
1500x1100x1600 mm |
1100 |
288 |
|
HM-FR007 |
48x48x36 inch |
1100 |
380 |
|
Application area |
Warehouse, logistics, and the textile industry |
||
|
Stacking |
2-4 tiers |
||
|
Finish |
Powder coating color as per your request |
||
Similar Specification
Reinforced stacking racks are used for heavy yarn packages that exceed standard weight limits, while nesting racks are preferred in high-speed areas where empty units must be cleared daily. For lightweight rolls that vary in length, side-post racks provide additional lateral stability to keep the load centered during movement. Different rack structures are often used together to manage raw greige, production staging, and finished goods across different warehouse passage areas.
Video

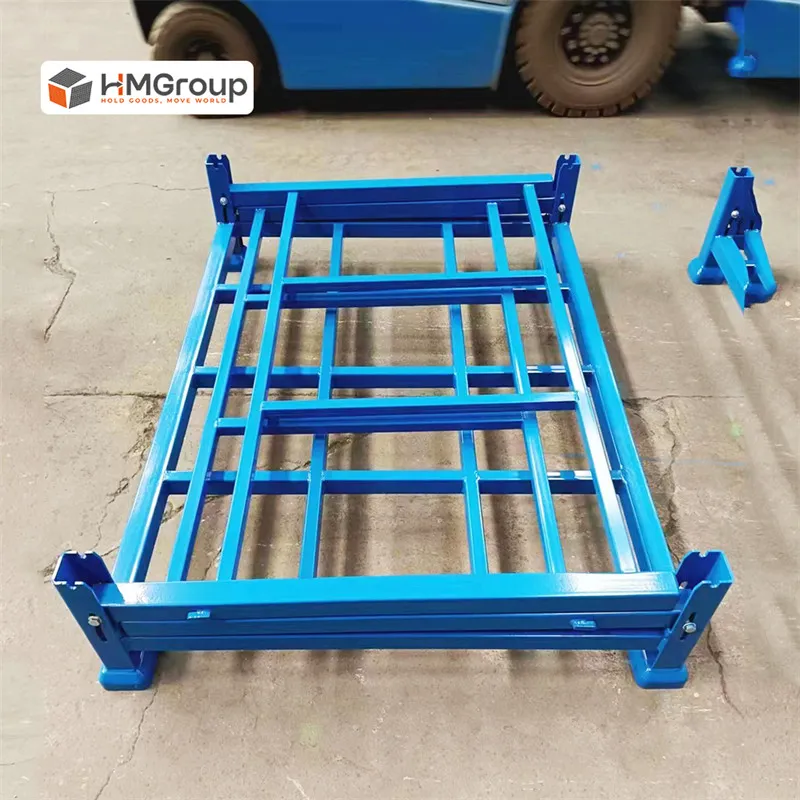

Loaded racks save floor space through vertical stacking, while empty fabric warehouse rack save space by folding. This video demonstrates the folding process used before empty racks are stored or returned, helping reduce unnecessary warehouse occupancy between production batches.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
The main structural joints of the storage stackable fabric roll racks are welded using robotic welding equipment to maintain consistent joint strength. After welding, the steel surface goes through shot blasting to remove welding residue and prepare the frame for surface treatment.
Quality Control
Each batch of fabric warehouse rack units is inspected before shipment. Static loading checks are carried out to verify that the frame maintains its shape under the specified loading conditions.
Packing and shipping
- Plastic banding+Stretch film wrapper, easy loading, and unloading with standard forklift truck or pallet jack.
- Certainly, you can also customize the way of packaging.
Certificate
Our commitment to compliance with certifications, including
ISO9001 Certificate No. CN24/00004786, This certificate is valid until 29 July 2027;
SGS Certificate No. CANWT00478167 inspection, Date of Inspection:23-Jan-2026;
BV test Report NO.: MIC-ASI2491658, Audit Date:2024-10-29;
APT test, and a patent certificate, ensures the high standards for HM Group
What Customers Say
"We can store more fabric rolls in the same area now, and the bottom rolls stay in good condition even during long storage periods." — Logistics Manager, Textile Hub.
FAQ
Q: Does the fabric warehouse rack require floor installation?
A: No. The rack is free-standing and can be moved according to warehouse requirements.
Q: Can the rack size be customized for different fabric rolls?
A: Yes. Base dimensions and post height can be adjusted according to roll size and storage conditions.
Q: Can the rack be moved by forklift?
A: Yes. The base structure is designed for standard forklift handling between warehouse areas.
Q: How many layers can I safely stack?
A: These units are typically stacked 2 to 4 layers high, depending on your building's ceiling height and the load capacity of your forklift.
