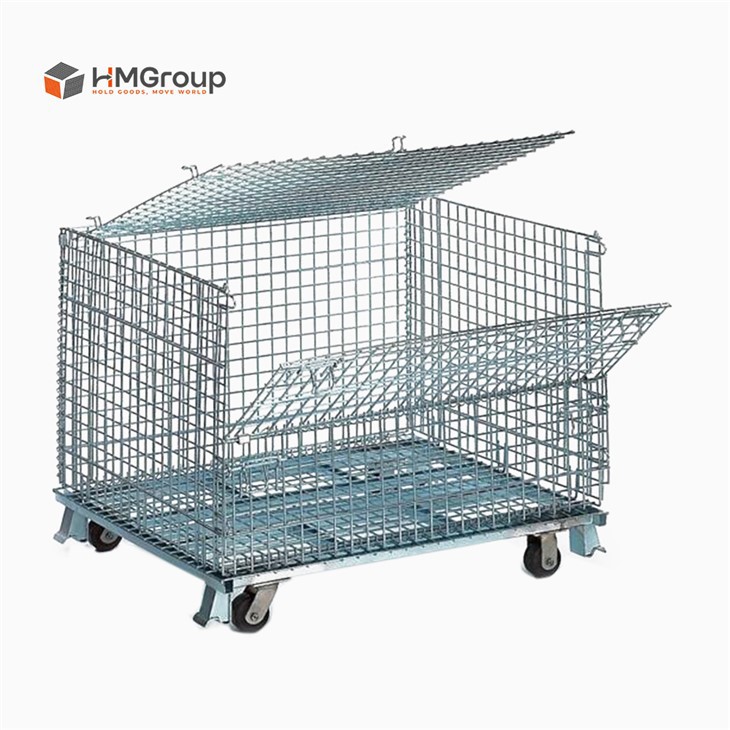

Mesh Container With Lid
The mesh container with lid is designed for warehouse storage requiring covered containment while maintaining airflow and product visibility. The wire mesh lid keeps stored items contained during handling while maintaining an open structure for inspection and ventilation.
Model No.: HM-HD001
Exterior Dim.: 1030L×840W×850H mm
Wire Gauge: 6 mm
Grid Size: 50×50 mm
Loading Capacity: 1300 kg
Loaded in 1x40'HQ: 500 sets
Products Description
Mesh Container With Lid
Benefits

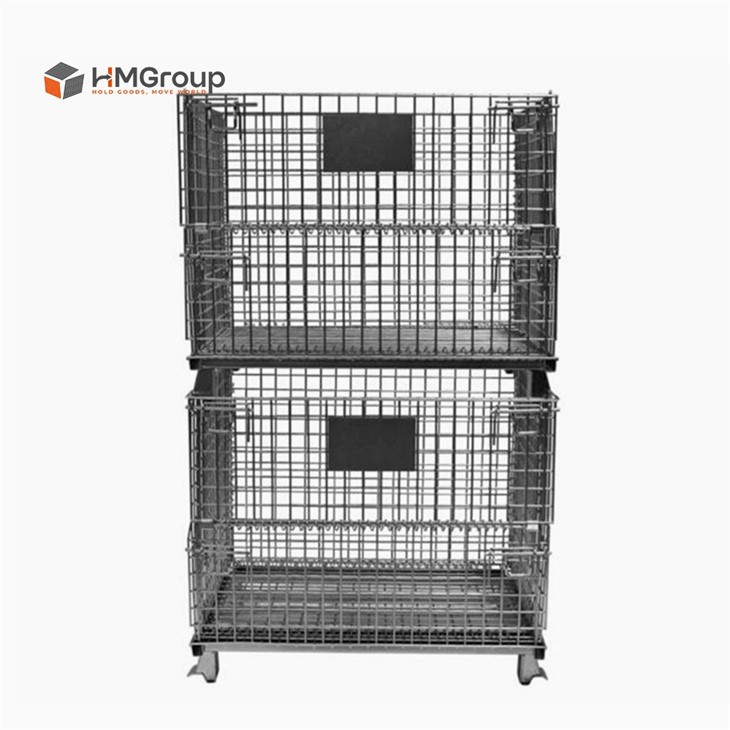

Stacked: 4 open
Zinc/hot dip galvanized/powder coating
Collapsible to save space
Accessories: Wheels/inner PP sheet or PP hollow sheet/bag
Available design: Top lid/bar runner/forklift guide/with inner divider
HM-HD001
Model No.
1300 kg
Loading Capacity
1030x840x850 mm
Exterior dimension
500sets
Loaded in 1X40'HQ
This mesh container with lid is manufactured from mild steel Q235 with a welded mesh structure for warehouse storage and material handling. Standard size is 1030 × 840 × 850 mm with 6 mm wire diameter and 50 × 50 mm mesh spacing. Standard loading capacity is 1300 kg. The top cover uses the same wire mesh structure as the side panels, allowing visibility from multiple angles while helping contain loose products. Foldable side panels reduce occupied storage area after unloading, and the base supports routine forklift entry for warehouse handling.
Advantages
- Prevents stored items from shifting or falling during movement
- Maintains airflow through open wire construction
- Allows visual stock checks without removing cover

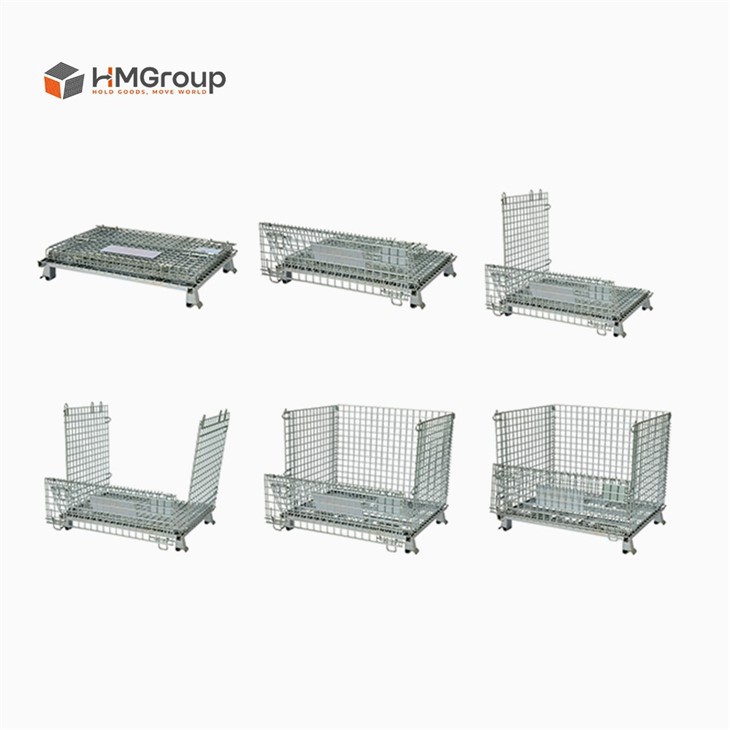

- Folds after unloading for compact empty storage
Products Customized
This mesh container with lid can be customized with different wire lid structures depending on access frequency and handling requirements. Common options include half-opening lids, double-opening top panels, and reinforced hinge structures for repeated daily use. Additional locking points can also be added when stored materials require controlled access during warehouse operations.
Application
The mesh container with lid is commonly used for packaged instruments, sterilization accessories, medical supplies, and warehouse inventory requiring cleaner storage. In medical storage operations, the wire top helps keep products contained during internal movement without blocking visibility. Operators can move loaded units between receiving areas, storage locations, and packing sections while allowing easier visual inspection.
Hot Tags: mesh container with lid, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior dimension |
Wire Gauge |
Dimension of Grid |
Loading capacity |
Loaded in 1x40'HQ |
|
LxWxH(mm) |
mm |
mm |
kg |
sets |
|
|
HM-HD001 |
1030x840x850 |
6 |
50x50 |
1300 |
500 |
|
HM-HD005 |
1230x1040x900 |
6.2 |
50x100 |
1000 |
350 |
|
HM-HD010 |
1200x1000x1250 |
6 |
25x50 |
800 |
216 |
|
HM-HD028 |
1200x1000x1140 |
5 |
50x100 |
500 |
270 |
|
Material |
Mild steel Q235 |
||||
|
Other design |
Top lid/bar runner/forklift guide/with inner divider |
||||
|
Available accessories |
Wheels/ iron sheets/ PP hollow sheets |
||||
|
Remark |
Customized or OEM support |
||||
Similar Specification
This mesh container with lid is also available in open-top versions and alternative door layouts depending on storage workflow and product type. Other configurations include different heights, wire spacing, and surface treatment for projects with specific handling or storage requirements. The same foldable mesh structure is available across standard warehouse configurations.
Video
Products requiring better top protection during storage often use enclosed wire mesh structures for cleaner containment and easier handling. HM Group manufactures mesh containers with lid for warehouse storage, internal movement, and repeated daily handling. Watch the video to view our production process or contact us for specifications and pricing.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
This wire mesh pallet cage with wheels is produced through scheduled welding lines with stable steel inventory and regular production planning. Standard specifications remain in active manufacturing cycles, helping maintain consistent lead times for export orders. Packaging uses plastic banding and stretch film for forklift or pallet jack loading.
Quality Control
Before shipment, this wire mesh pallet cage with wheels completes a caster movement test. This inspection verifies wheel movement, braking performance, and caster installation stability under loaded conditions. This inspection verifies whether movement remains stable during normal storage and transport conditions.
Packing and shipping
1. Plastic banding with steel pallet
2. Stretch film wrapping
Certificate
We are dedicated to showing that we are a dependable and exceptional partner for all of your requirements.
What Customers Say
"We use these mobile cages for bottled drink packaging and finished cartons. Moving products between filling and storage areas became much easier, especially in sections where forklift access is limited."------Speck Maquinas
FAQ
Q: Can this wire mesh pallet cage with wheels carry heavy beverage products?
A: Yes. Standard loading capacity is 1300 kg, suitable for packaged beverage materials and finished goods.
Q: Are wheel brakes available?
A: Yes. Brake casters can be added based on handling requirements.
Q: Does the unit still fold after casters are installed?
A: Yes. The folding structure remains functional after caster installation.
