Wire Mesh Container For PET Preform Storage
A wire mesh container for PET preform storage is used to store large volumes of lightweight PET preforms between production and shipment. The open steel structure allows batch labels to remain visible during storage and handling.
Model No.: HM-PPC28
Wire Guage: 5 mm
Grid Size: 62x125 mm
Loading Capacity: 800 kg
Loaded in 1x40'HQ: 170 sets
Exterior Dimension: 1200Lx1010Wx1200H mm
Products Description
Wire Mesh Container for PET Preform Storage
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stackability: 5+1 high
Zinc/hot dip galvanized/powder coating(customized)
Fully collapsible to save space
Warehouse, logistic, recycling, etc.
HM-PPC28
Model No.
800 kg
Loading Capacity
1200×1010×1200
Exterior dimension
170 sets
Loaded in 1X40'HQ
This wire mesh container for PET preform storage is designed for high-volume storage of molded PET preforms. The welded steel structure provides stable support while the wire mesh design allows operators to verify batch labels and observe material color without opening the container. A front drop gate improves access during picking operations, and the collapsible design allows units to be folded when not in use. Different production batches can be stored in separate containers before shipment or bottle production.
Advantages
* The wire mesh design allows quick verification of labels and production batches.
* Collapsible structure saves warehouse space when not in use.
* Forklift-compatible base allows loaded containers to be moved between production, storage, and shipping areas.
* Front drop gate allows easier access for inspection and partial picking.
* Reinforced steel structure supports stable stacking and daily warehouse movement.
* Suitable for batch separation and inventory traceability.
* Reusable steel structure supports repeated warehouse use.
* Multiple surface finish options support different operating environments.
Products Customized
Available options include top lids, internal dividers, forklift guides, and reinforced structures. PP sheets, hollow boards, and inner bags can be added for additional product protection. Customers may select different dimensions, loading capacities, surface finishes, and identification plate locations. Dimensions, accessories, and identification plate locations can be adjusted to match existing storage and handling practices.
Application

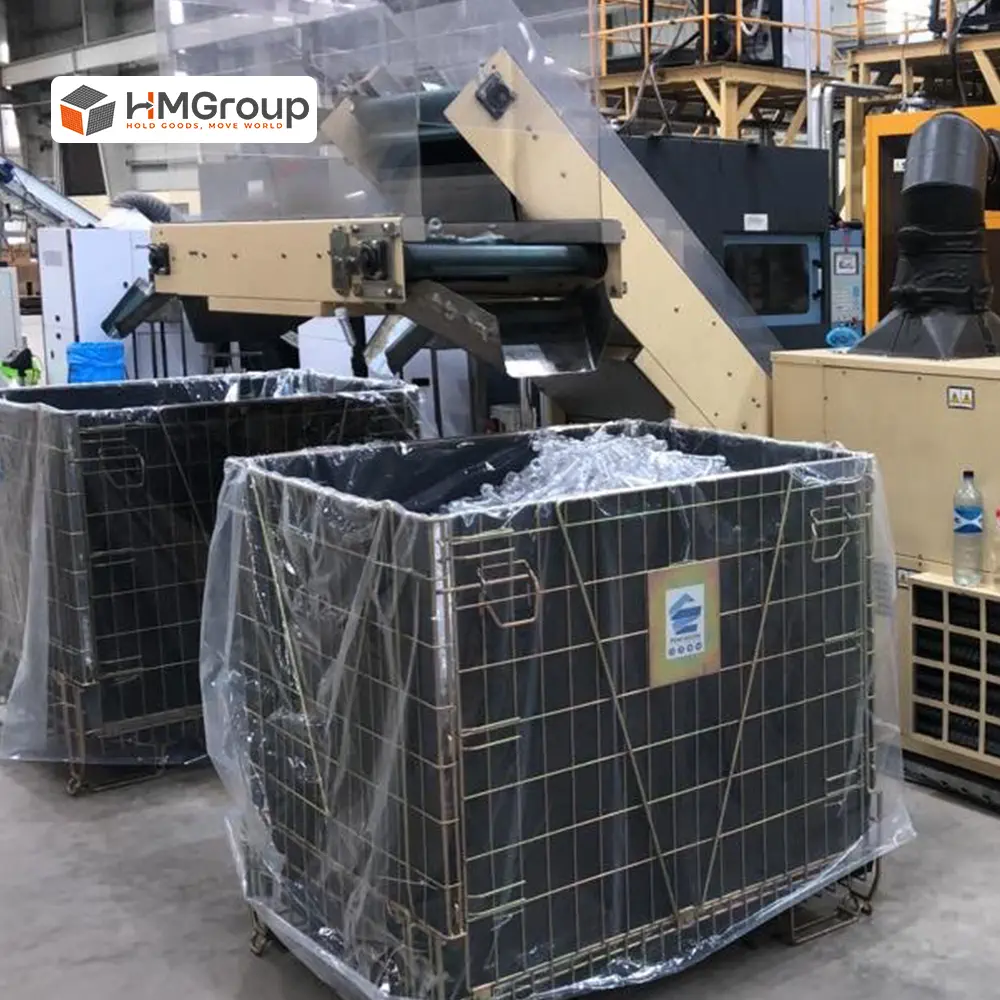

In PET preform manufacturing facilities, the wire mesh container for PET preform storage is commonly positioned between molding production and shipping areas. After molding, cooling, and inspection, preforms are stored in production batches awaiting shipment or downstream bottle manufacturing. Warehouse teams use separate containers to maintain batch separation and traceability. During shipping preparation, containers can be staged for truck loading or export container loading with labels remaining visible during storage and shipment preparation.
Hot Tags: wire mesh container for pet preform storage, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Ext.Dim. |
Wire Guage |
Dimension of Grid |
Loading capacity |
Loaded in 1*40 HQ |
|
LxWxH(mm) |
mm |
mm |
kg |
sets |
|
|
HM-PPC22 |
1196X1008X1174 |
4.8-12 |
62X125 |
600 |
170 |
|
HM-PPC11 |
1245x1020x1120 |
5-12 |
55x113 |
400 |
189 |
|
HM-PPC14 |
1120x971x1050 |
6-12 |
54x160 |
800 |
240 |
|
HM-PPC28 |
1200x1010x1200 |
5-12 |
62x125 |
800 |
170 |
|
HM-PPC34 |
1200x1010x1094 |
4.5-12 |
51x95 |
450 |
170 |
|
HM-PPC01 |
1200x1000x1241 |
3.4 |
25x63 |
800 |
144 |
|
HM-HD010 |
1200x1000x1250 |
6 |
25x50 |
800 |
216 |
|
HM-HD028 |
1200x1000x1140 |
5 |
50x100 |
500 |
270 |
|
Material |
Mild steel Q235 |
||||
|
Stackability |
5+1 high |
||||
|
Finish |
Zinc/hot dip galvanized/powder coating |
||||
|
Accessories |
Wheels/inner PP sheet or PP hollow sheet/bag |
||||
|
Application area |
Warehouse, logistic, recycling industry, PET preform or plastic cap storage |
||||
|
Features |
1. Collapsible: saves space when not in use, ideal for return journeys |
||||
Similar Recommended
For different loading capacities and storage requirements, several related models are available alongside the wire mesh container for PET preform storage.
* HM-PPC22: Standard model with 1196X1008X1174 mm for routine warehouse storage and batch management.
* HM-PPC28: Reinforced version with 1200x1010x1200 mm, additional corner supports, and an extra X-shaped bottom reinforcement for higher stacking loads.
* Models with PP liners: Suitable for operations requiring additional product protection.
* Models with internal dividers: Designed for separating multiple production lots within the same storage area.
* Models with top lids: Provide additional protection during transportation and warehouse storage.
Video
Does the PET preform industry need storage/transport solutions? Watch the video “What is the PET preform cages for the pet preform industry?” to know its design. Contact Ellen Che (sales@hmlrack.com/+86-150 4060 8276) to inquire!
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
The production of the wire mesh container for PET preform storage follows a structured manufacturing process.
Raw steel wire and steel tubes are cut according to production drawings before entering the welding stage. Mesh decking is welded using dedicated fixtures to maintain dimensional consistency. The structure is then assembled, inspected, and prepared for surface treatment. Depending on customer requirements, zinc plating, powder coating, or hot-dip galvanizing is applied. Final assembly includes gate installation, structure inspection, and packaging before shipment.
Quality Control
During production of the wire mesh container for PET preform storage, each welded mesh panel is inspected for dimensional accuracy, welding consistency, and structural integrity. The structure is checked for alignment, gate operation, and stacking stability. Surface treatment quality is inspected before final packing.
Packing and shipping
Paper shell - avoid friction between wire container with wheels & steel straps
Metal or plastic strip - fix & protect
Certificate
Compliance with ISO, SGS, BV, APT, and patent certifications underpins the high standards upheld by HM Group.
What Customers Say
"We can identify production batches without opening the containers. Labels remain visible through the mesh sides, and empty units fold down neatly when not in use."
FAQ
Q: Can it be folded when not in use?
A: Yes, it features a collapsible structure that allows efficient storage when not in use.
Q: What surface finishes are available?
A: Zinc galvanizing, powder coating, and hot-dip are available.
Q: Can it be customized?
A: Yes, dimensions, loading capacity, accessories, and surface treatments can be customized according to project requirements.
