Magnum Bottle Riddling Cage
Designed for premium sparkling wine lines, the Magnum Bottle Riddling Cage provides a customizable layout for 1.5L and special-format bottles, supporting secure automated riddling, handling, and cellar aging.
Model No.:HM-RC1210
Exterior Dimension:1236x1030x1177 mm
Load capacity: 800 kg
Stacked:6 open
Loaded: 209 sets/ 40HQ
Material: Mild steel Q235
Bottle Capacity: 504 Bottles (750ml Standard)
Application: Gyropalette Automatic Riddling
Structure Feature: Foldable & 360° Rotation Lock
Surface Treatment: Zinc Galvanized, Hot-Dip Galvanized
Products Description
Magnum Bottle Riddling Cage
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Zinc Galvanized, Hot-Dip Galvanized
Foldable & 360° Rotation Lock
Application: Gyropalette Automatic Riddling and Storage
HM-RC1210
Model No.
800 kg
Loading Capacity
1236x1030x1177
Exterior dimension
209 sets
Loaded in 1X40'HQ

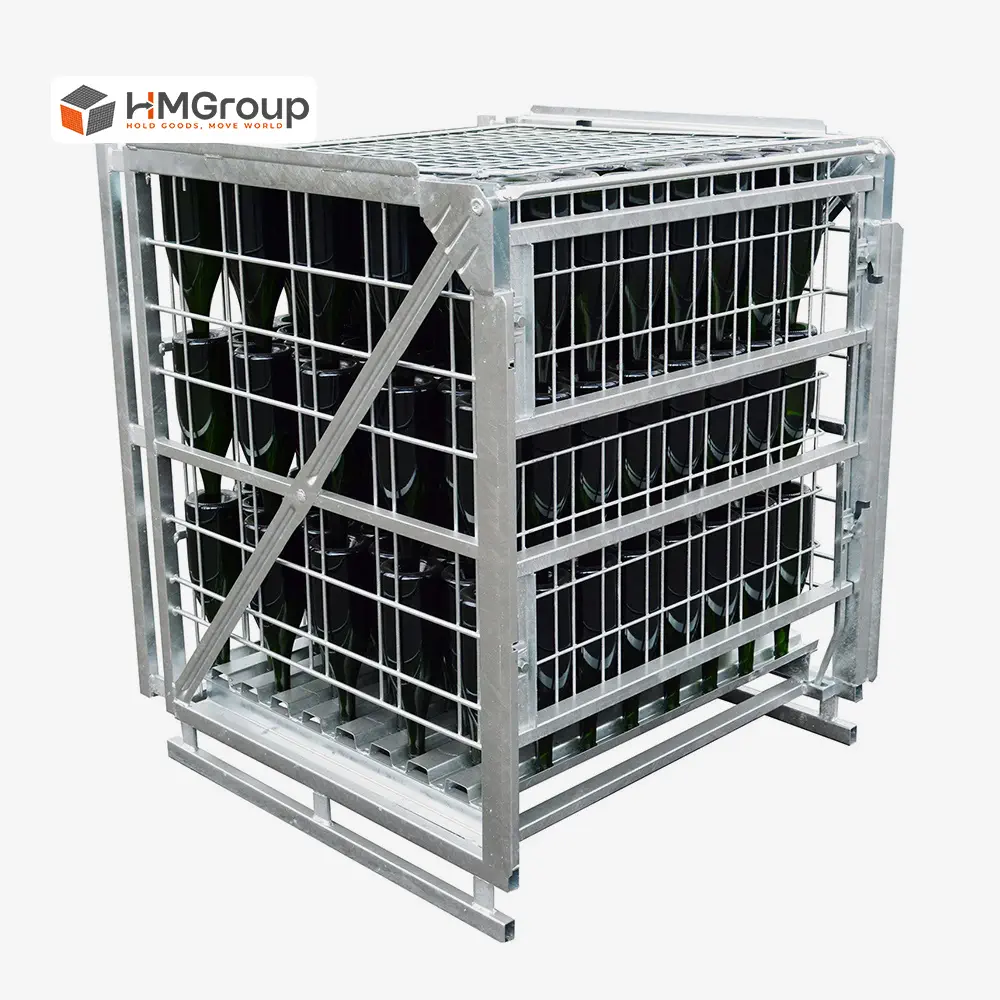

Custom spacing keeps 1.5L Magnum bottles stable through automated riddling. The Magnum Bottle Riddling Cage is custom-designed based on your bottle layout, so each slot matches the bottle diameter and support points. Bottom contoured steel slats structured to harmonize with and secure bottle necks, while the bottle body is supported in the grid. Adjustable upper half-covers hold larger bottles in position during turning. A detachable front door gives operators open access for loading and unloading. Its heavy-duty layout supports up to 800 kg, helping wineries handle large-format bottles with more control.
Advantages
- Custom slot spacing and bottom contours fit larger or special bottle profiles.
- Two upper half-doors adjustable in the closing.
- Bottom shaped slats align and support bottle necks during handling.
- Compatible outer-frame design can work with existing gyropalette equipment.

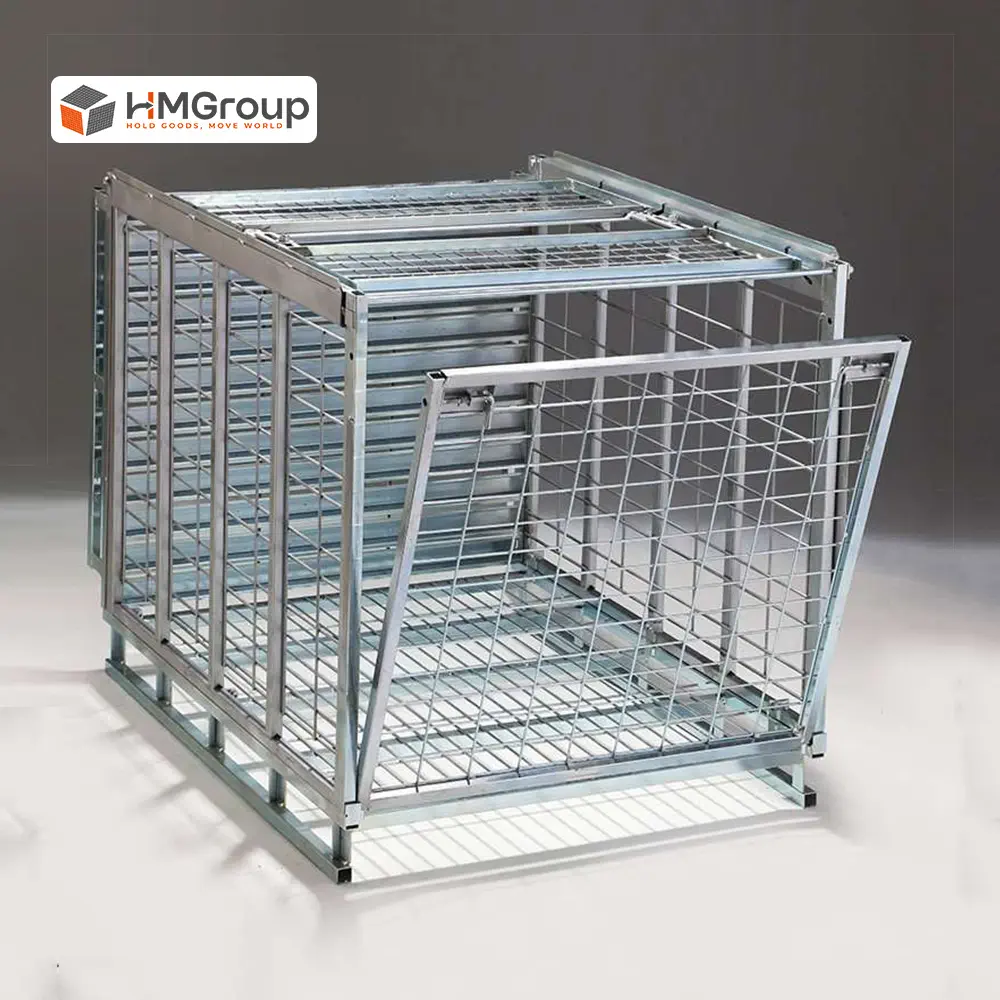

- Detachable front door gives operators easier access during loading.
Products Customized
Magnum Bottle Riddling Cage can be developed around your actual bottle drawing. Our Bottle Layout CAD service reviews bottle diameter, height, neck position, and contact points before the internal grid is made. The upper cover adjustment range can also be extended for taller bottles or different closure heights. For movement between filling, storage, and riddling areas, a forklift channel can be added.
Application

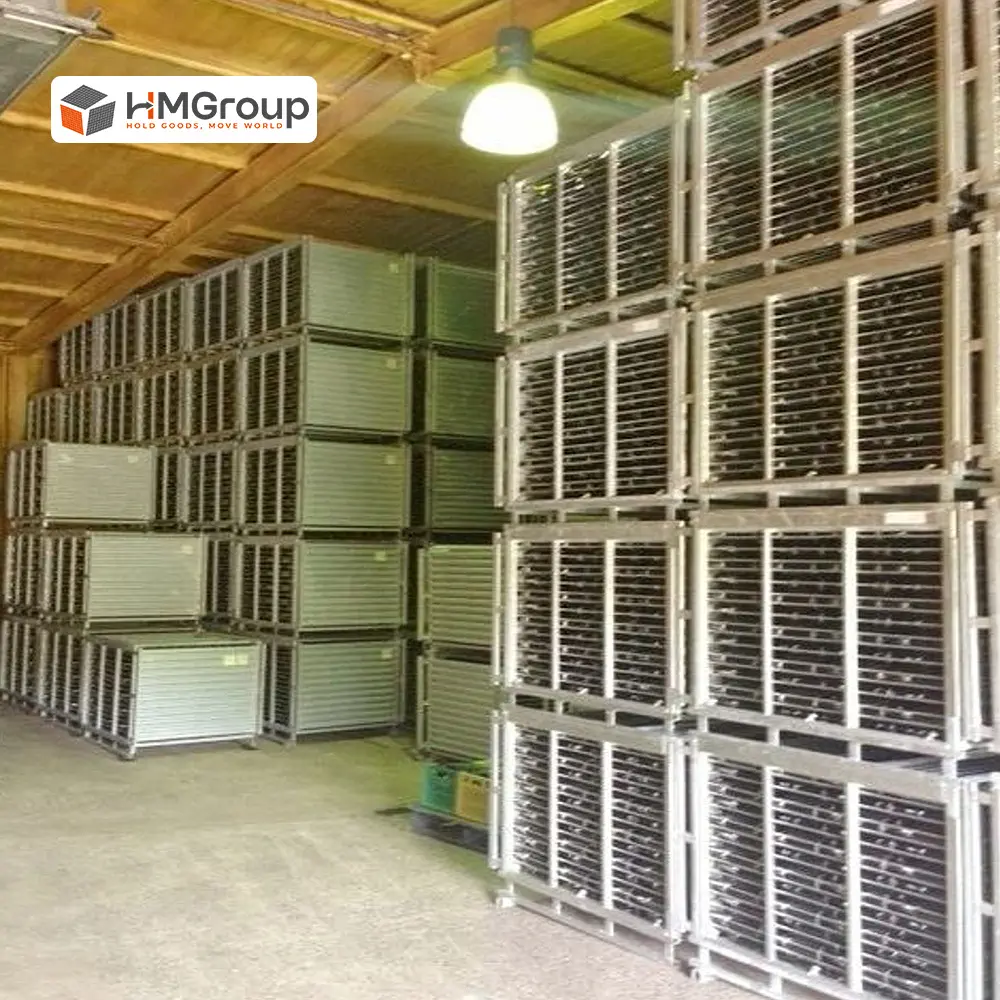

The Magnum Bottle Riddling Cage is suited to 1.5L sparkling wines, prestige cuvée programs, half bottles, and special bottle formats. Bottles can remain in the custom internal layout during aging on lees, then move to automated riddling for sediment collection. The custom bottle positions help control larger bottle weight during turning. After riddling, the same unit can be moved to a dedicated cellar area for organized storage and handling, reducing unnecessary transfers between production steps.
Hot Tags: magnum bottle riddling cage, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Similar Recommended
|
Model No. |
Exterior dimension |
Wire Gauge |
Dimension of Grid |
Loading capacity |
Loaded in 1x 40'HQ |
|
LxWxH (mm) |
mm |
mm |
kg |
sets |
|
|
HM-WEU001 |
1140x830x980 |
12-5.0 |
55x113 |
800 |
332 |
|
HM-WEU005 |
1200x920x1018 |
12-5.0 |
51x118 |
800 |
228 |
|
HM-WEU010 |
1183x948x991 |
11-5.0 |
62x115/60x120 |
800 |
253 |
|
HM-WEU016 |
1244x802x1054 |
12-5.0 |
54x118 |
800 |
168 |
|
HM-RC1210 |
1236x1030x1177 |
CSUTOM |
CSUTOM |
800 |
209 |
|
Material |
Mild steel Q235 |
||||
|
Available design |
Top lid/forklift guide/side reinforce support bar |
||||
|
Finish |
Zinc Galvanized, Hot-Dip Galvanized |
||||
|
Features |

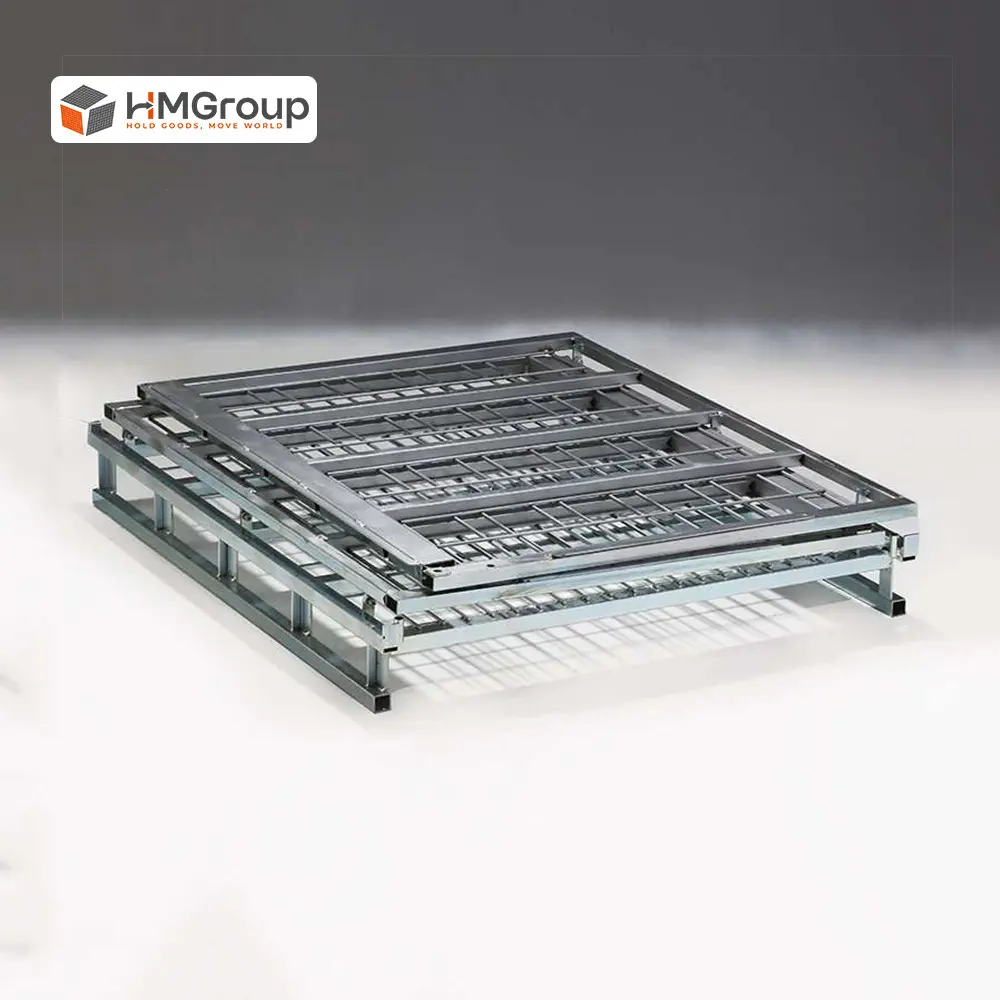

1. 360° reversible design improves wine clarity and enhances taste. 2. Detachable front door allows easy bottle loading and unloading. 3. Fully collapsible structure saves space and reduces return costs. 4. Stackable up to six units high for better space utilization. |
||||
Bottle programs often include more than one format. Alongside the Magnum Bottle Riddling Cage, we can design different internal layouts for 375ml half bottles, standard 750ml bottles, and larger sparkling wine bottles. Various grid patterns, support points, and frame structures help match different cellar processes.
Video
This video shows the real production scene of HM Group factory.
With standardized workshops, complete production equipment and professional quality inspection system, we own strong manufacturing capability.
Our newly launched Bottle Riddling Cage benefits from our mature production system. We can provide stable quality, flexible customization and delivery to meet your bulk order demands.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Engineers adjust jigs from bottle drawings before production begins.
Quality Control
Quality technicians use calibrated digital vernier calipers to inspect wire diameter and tube wall thickness. They check the key loading mesh and structural tubes against the drawing.
Packing and shipping
- Plastic banding+Stretch film wrapper, easy loading, and unloading with standard forklift truck or pallet jack.
- Certainly, you can also customize the way of packaging.
Certificate
Our commitment compliance with certifications including ISO, SGS inspection, BV test, APT test, and a patent certificate, ensuring the high standards for HM Group
What Customers Say
“The cages, which have undergone a hot-dip galvanized coating process, have now been in use for over six months and show absolutely no signs of corrosion.” — Matharoo, Cellar Operations Manager, France
FAQ
Q: Can you design internal mesh for non-standard bottle shapes?
A: Yes. We can develop the grid from your bottle drawing or sample dimensions. This allows the support points and spacing to match the actual bottle profile.
Q: How many 1.5L Magnum bottles can one cage hold?
A: Capacity depends on the bottle diameter, height, and internal layout. We confirm the final quantity after reviewing your bottle drawing and required support structure.
Q: Is the front door removable for loading heavy large bottles?
A: Yes, the front door can be designed as detachable. This creates wider access for manual loading or assisted handling.
Previous: No Information

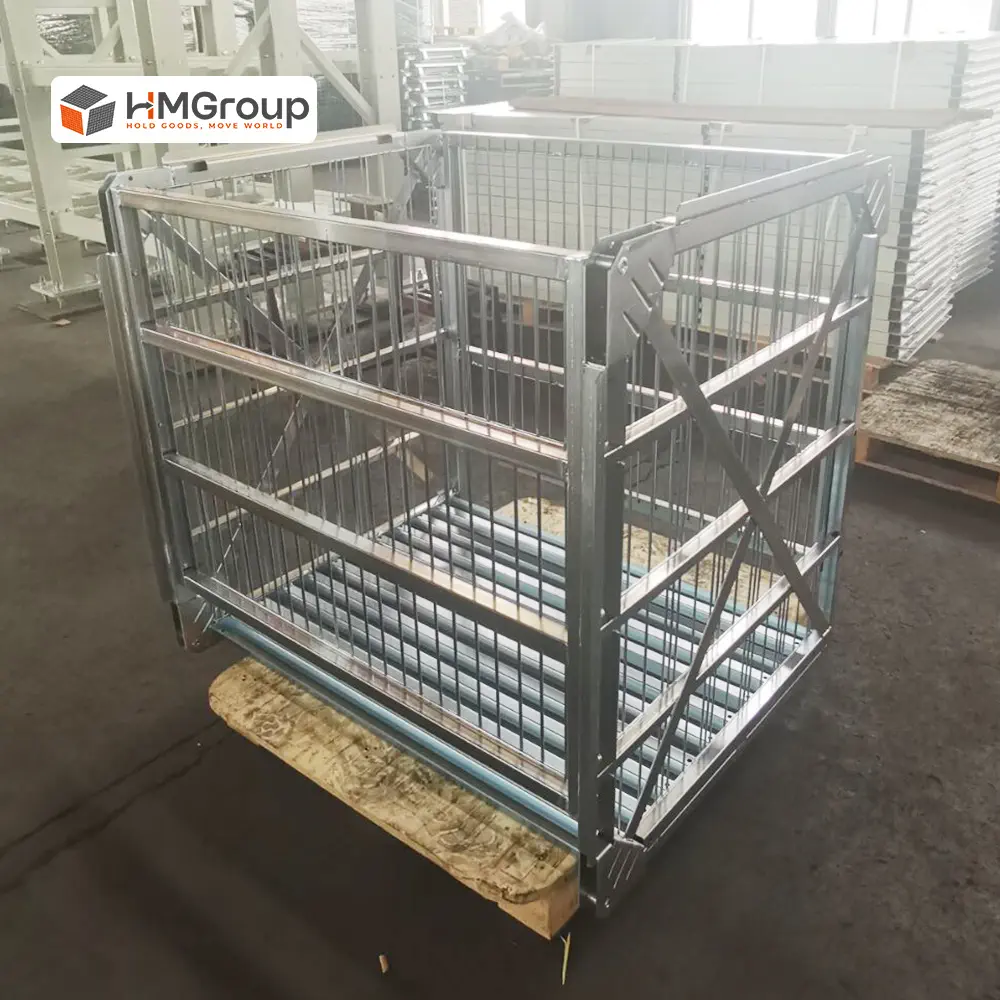

Next: Galvanized Riddling Cage
