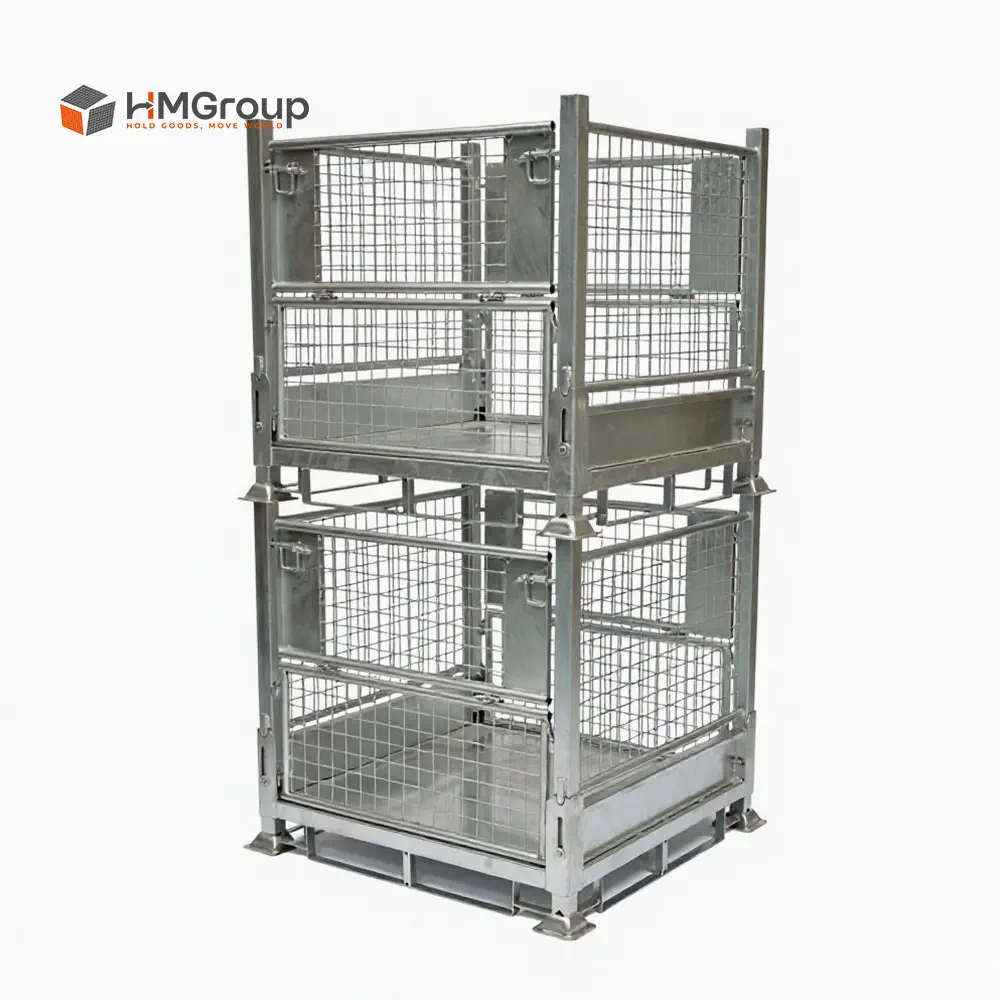

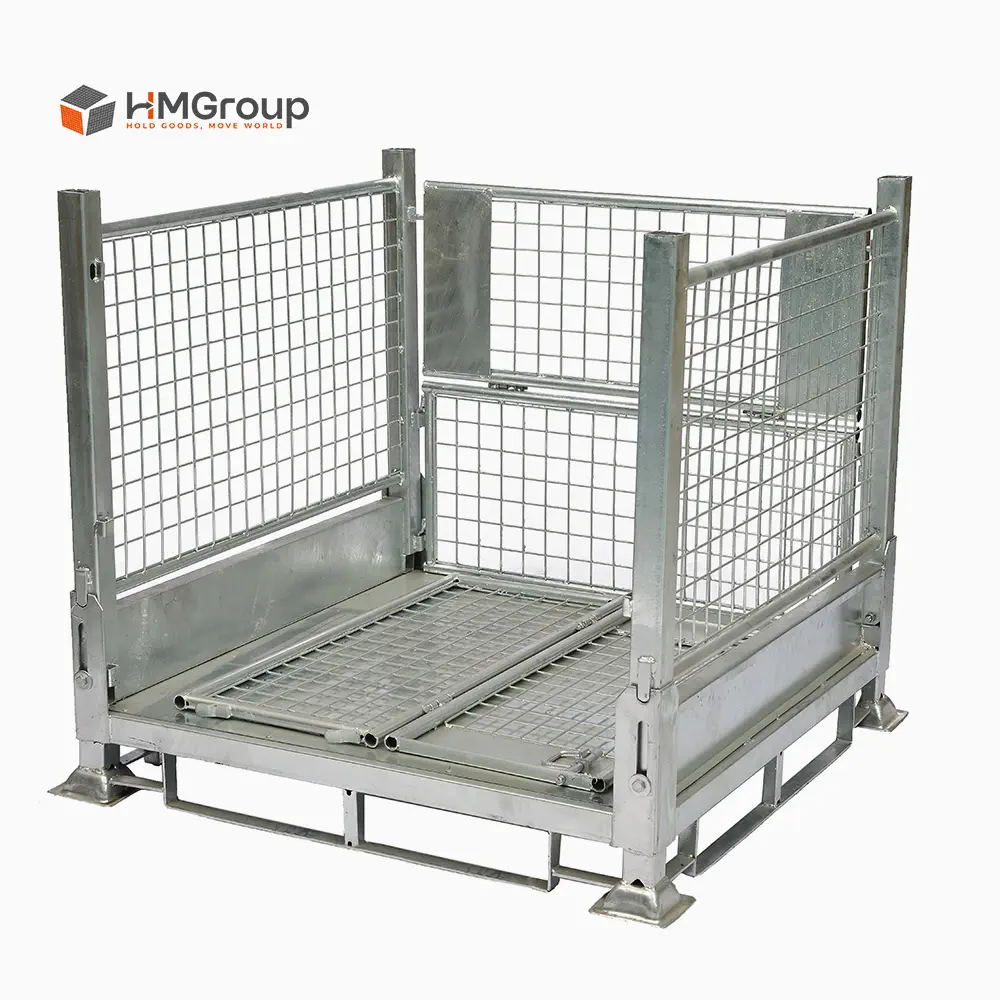

Foldable Collapsible Stillage Cage
HM Group's foldable collapsible stillage cage is a turnover asset for returnable logistics. It helps sites manage space when containers are empty, making warehouse transitions and empty-return trips more efficient.
Model No.: HM-ST-AU001
Stacking: 4 high
Grid Size: 50×50 mm
Loading Capacity: 500 kg
Loaded in 1x40'HQ: 160 sets
Exterior Dimension: 1125L×1125W×1000H mm
Products Description
Foldable Collapsible Stillage Cage
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 4 open
Hot-dip galvanized (customized)
Collapsible to save space
Warehouse, logistic, recycling, etc.
HM-ST-AU001
Model No.
500 kg
Loading Capacity
1125×1125×1000 mm
Exterior dimension
160 sets
Loaded in 1X40'HQ

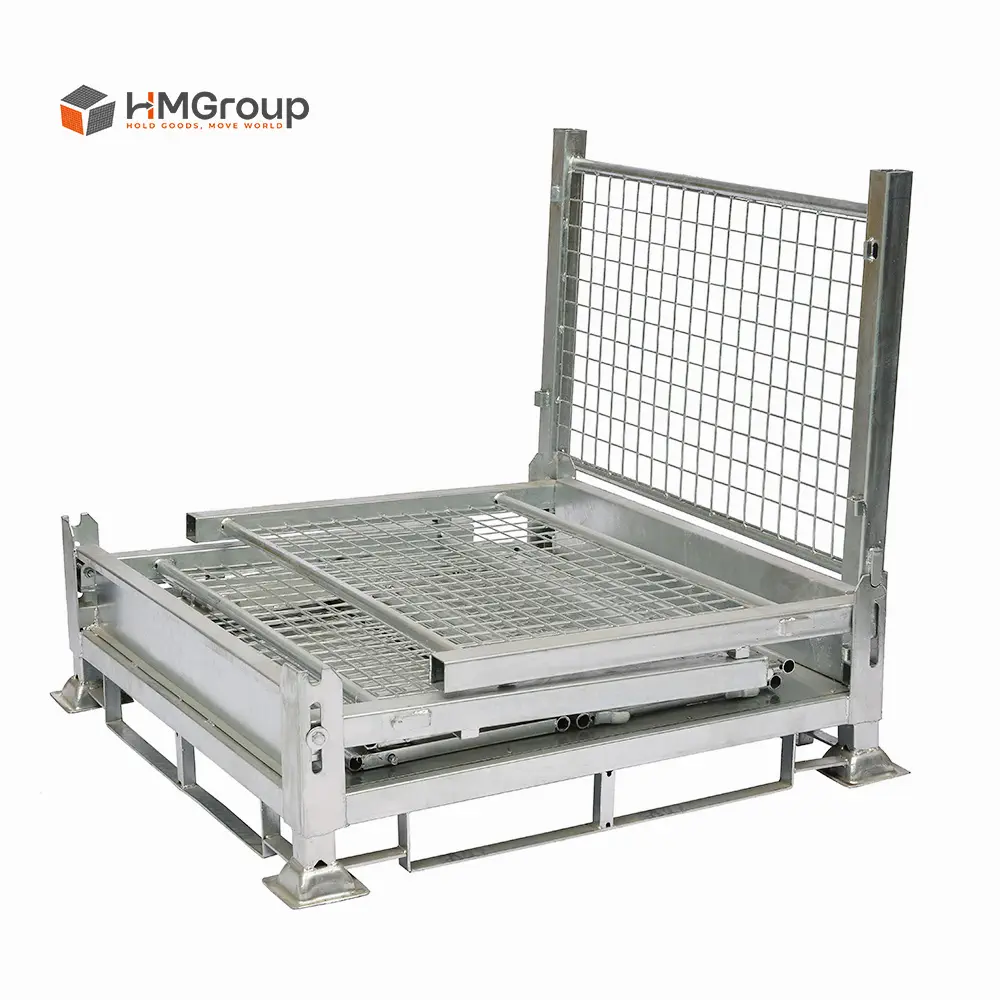

Made from industrial-grade Q235 steel, this foldable collapsible stillage cage uses a hinged folding system to reduce its footprint when empty. The sides align with the square tube base to stay secure during storage and transport. When collapsed, the unit occupies much less room, helping teams manage large fleets of returnable assets. The square tube foundation supports forklift movement, while the mesh sides keep goods visible. This structure is built for repeated warehouse circulation and helps keep inventory organized before the units are folded for return.
Advantages
Space Management: Folding sides reduce the room needed for empty storage.
Freight Savings: More folded units fit in return loads to lower transportation costs.
Operational Safety: Hinged joints ensure stable assembly and setup.
Clear Visibility: Mesh sides allow quick stock checks during turnover.
Forklift Compatibility: Supports lifting from any side.
Products Customized
HM Group can adjust the height, width, and depth of the foldable collapsible stillage cage to match your goods. Custom sizing ensures that the units fit your return vehicles and warehouse zones with fewer space gaps.
Application
A worker loads components into the cage before a forklift moves it to the production area. Once parts are used at the line side, the empty unit is collected and folded flat. These foldable collapsible stillage cages are then stacked in the return area or loaded for transport back to the supplier.
Hot Tags: foldable collapsible stillage cage, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior Dimension |
Grid Size |
Loading |
Stacking |
Loaded in 1x40'HQ |
|
LxWxH |
mm |
kg |
high |
sets |
|
| HM-ST-AU001 |
1125x1125x1000 mm |
50x50 |
500 |
4 |
160 |
|
HM-ST-AU002
|
1125x1125x700/500 mm
|
50x50
|
800 | 4 | 160 |
|
HM-ST-AU003
|
2250x1125x1000/800 mm
|
50x50
|
1200 | 4 | 80 |
|
HM-ST-AU004
|
2250x1125x700/500 mm
|
50x50
|
1200 | 4 | 80 |
| HM-ST-AU-P001 |
1165x1165x1157/900 mm
|
50x50 | 1000 | 4 | 80 |
| HM-ST-AU-P002 |
2330x1165x1157/900 mm
|
50x50 | 2000 | 4 | 30 |
|
HM-ST-S001
|
30''x32''x28''
|
50x50 | 800 | 4 | 183 |
|
HM-ST-S002
|
30''x32''x28''
|
50x50 | 800 | 4 | 183 |
|
HM-ST-S003
|
66''x40''x34
|
50x50 | 1500 | 4 | 98 |
| HM-ST001 | 1760x1200x1068 mm | 50x50 | 1000 | 6 | 124 |
| HM-ST002 | 1125x1125x1040 mm | 50x50 | 1000 | 4 | 160 |
| HM-ST007 |
1230x835x970 mm |
50x50 |
800 |
4 |
160 |
|
Material |
Mild steel Q235 |
||||
|
Application area |
Warehouse, logistic, recycling, auto industry, etc. |
||||
|
Finish |
Powder coating |
||||
|
Remark |
Customized or OEM support |
||||
Similar Specification
Foldable collapsible stillage cage types for space-sensitive logistics. Options include mesh-sided storage units, models with protective PP sheets, galvanized finishes, and powder-coated versions. These products help warehouses manage both loaded storage and empty-return cycles across different supply chain routes.
Video
Watch this demonstration to see the fast setup and folding of the foldable collapsible stillage cage. The video features helpful tips on handling the folding hinges to maximize efficiency in your facility. Contact us now for a direct quote and more information.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Our factory brings different steel processing machines together in one production base. Wire drawing, punching, bending, cutting, and welding equipment each handle a specific part of the work. This layout enables our production team to break down processes according to different orders and carry out simultaneous processing, ensuring reliable delivery schedules.
Quality Control
QC for this model focuses on folding smoothness and hinge operation. Inspectors open and fold the sides to check that they move correctly and sit properly when collapsed. This ensures the unit stays stable in both states and remains ready for daily use.
Packing and shipping
- Fully Protection - edges are bundled up by paper shells
- Prevent scattering in shipping - plastic banding + Stretch film wrapped.
Certificate
HM Group maintains strict quality standards, supported by certifications from ISO, SGS, BV, and APT, along with patented technologies.
What Customers Say
Our empty-cage area stays much more organized since we switched to these cages. The team folds them down in seconds, which saves us floor space during the off-season.
FAQ
Q: Is the mesh strong enough for heavy parts?
A: Yes, the mesh is welded to round tube frames and can safely contain 500kg loads.
Q: What is the lead time?
A: Production typically takes 3-4 weeks, depending on the volume and customization requirements.
