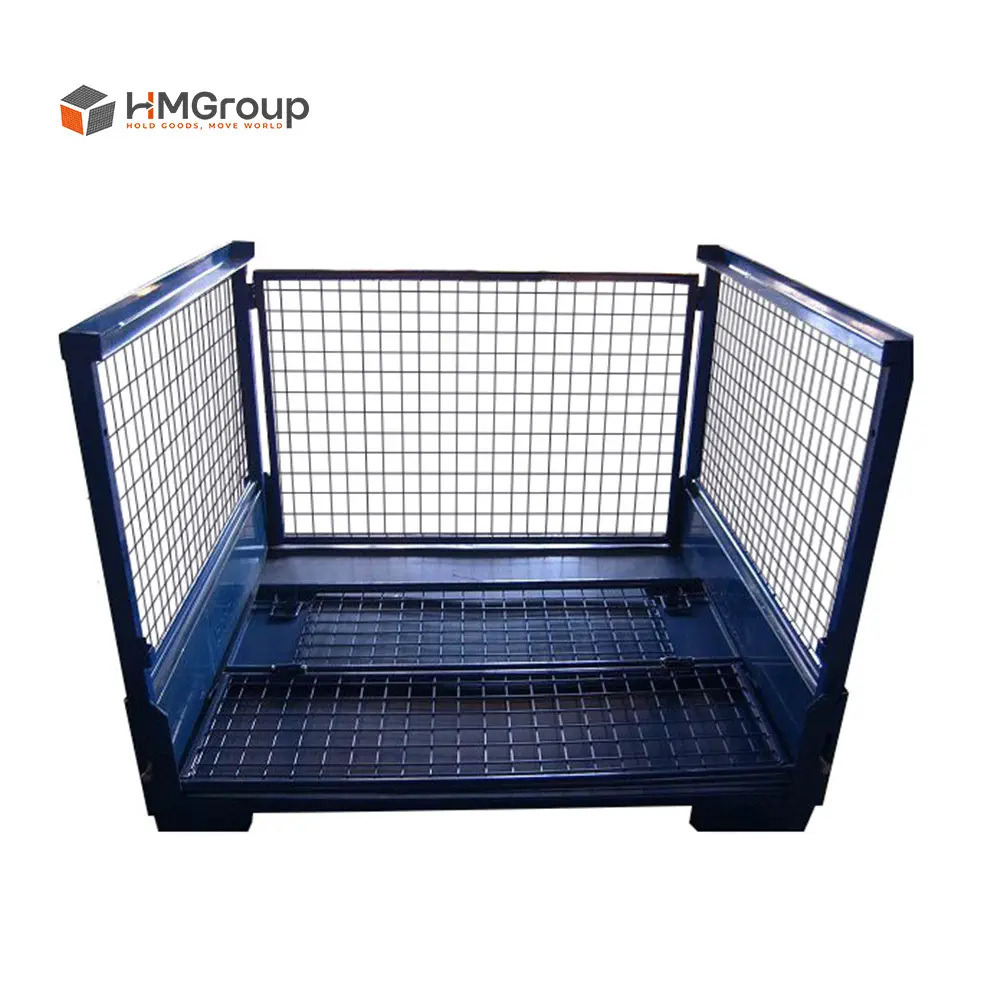

Folded Mesh Stillage Cage
Folded mesh stillage cage is made for export programs that ship empty returnable cages in 40HQ containers. After arrival, the same units can be opened for warehouse storage and local forklift handling.
Model No.: HM-ST007
Exterior Dim: 1230L×835W×970H
Loading Capacity: 1000 kg
Loaded in 1x40'HQ: 160 sets

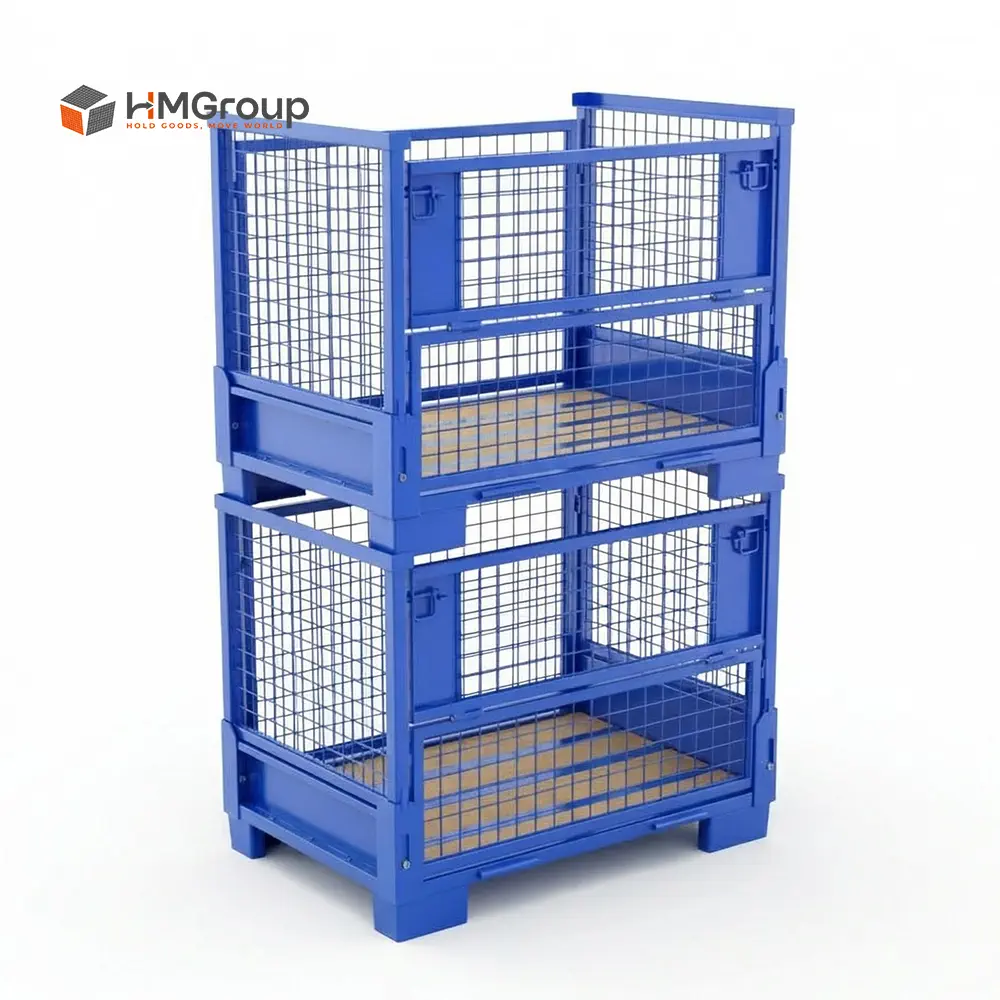

Stacking: 4 high
Great for storing both indoors and outdoors
Products Description
Collapsible Stillage Container
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Stacked: 4 open
Surface treatment: Powder coating or hot-dip galvanizing
Collapsible to save space
Grid Size: 50x50 mm
HM-ST007
Model No.
1000 kg
Loading Capacity
1230×835×970mm
Exterior Dimension
160 sets
Loaded in 1X40'HQ

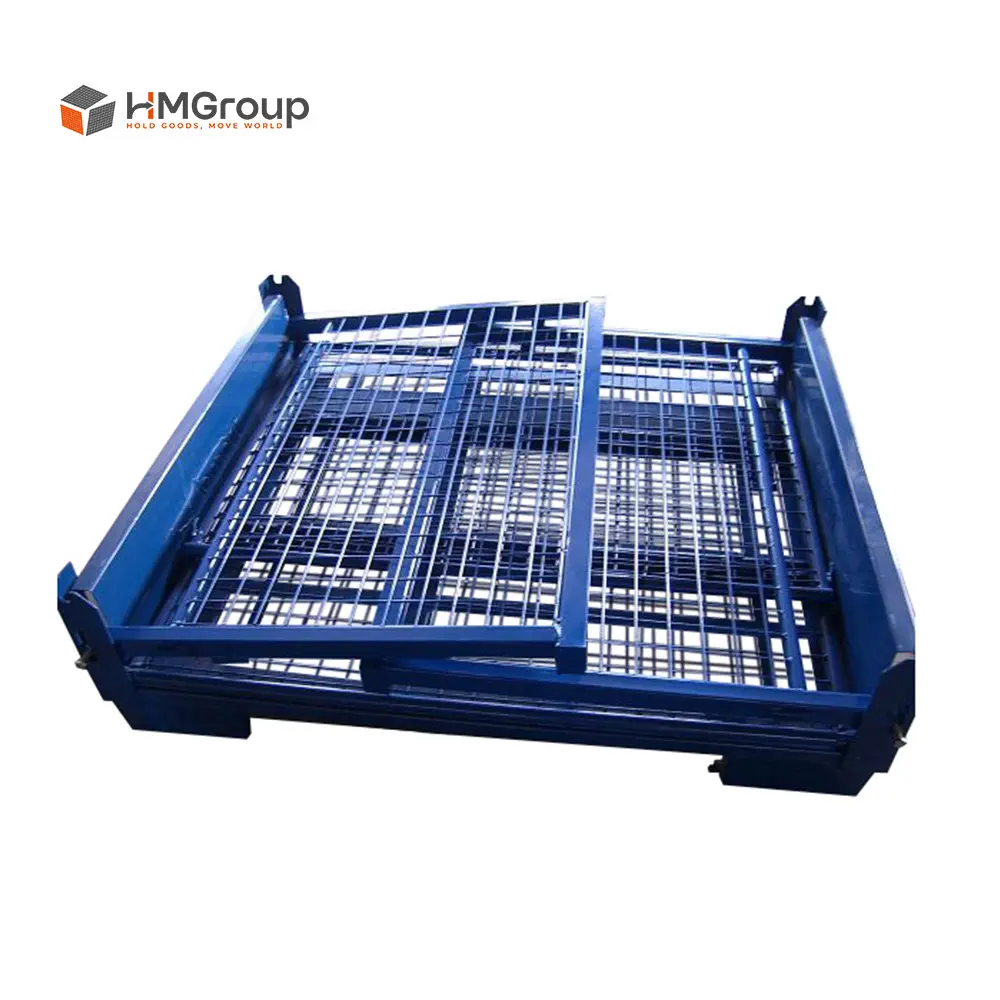

Designed for export programs, this folded mesh stillage cage helps teams send empty cages to overseas sites before they are put into local service. For HM-ST007, up to 160 folded units fit in one 40HQ container. Once delivered, the cages are opened and used to hold parts during warehouse storage and forklift transfer. Mesh sides make the contents easier to see and help keep suitable goods within the unit. The square tube base provides fork-entry support for warehouse moves. Its hinged side folds down after the local cycle ends, so empty cages can be prepared for the next shipment or stored in a smaller area.
Advantages
Better use of container space: The folded form helps fit more empty units into an approved 40HQ loading plan.
Clearer freight planning: Loading more empty units per cage helps teams estimate freight cost per unit.

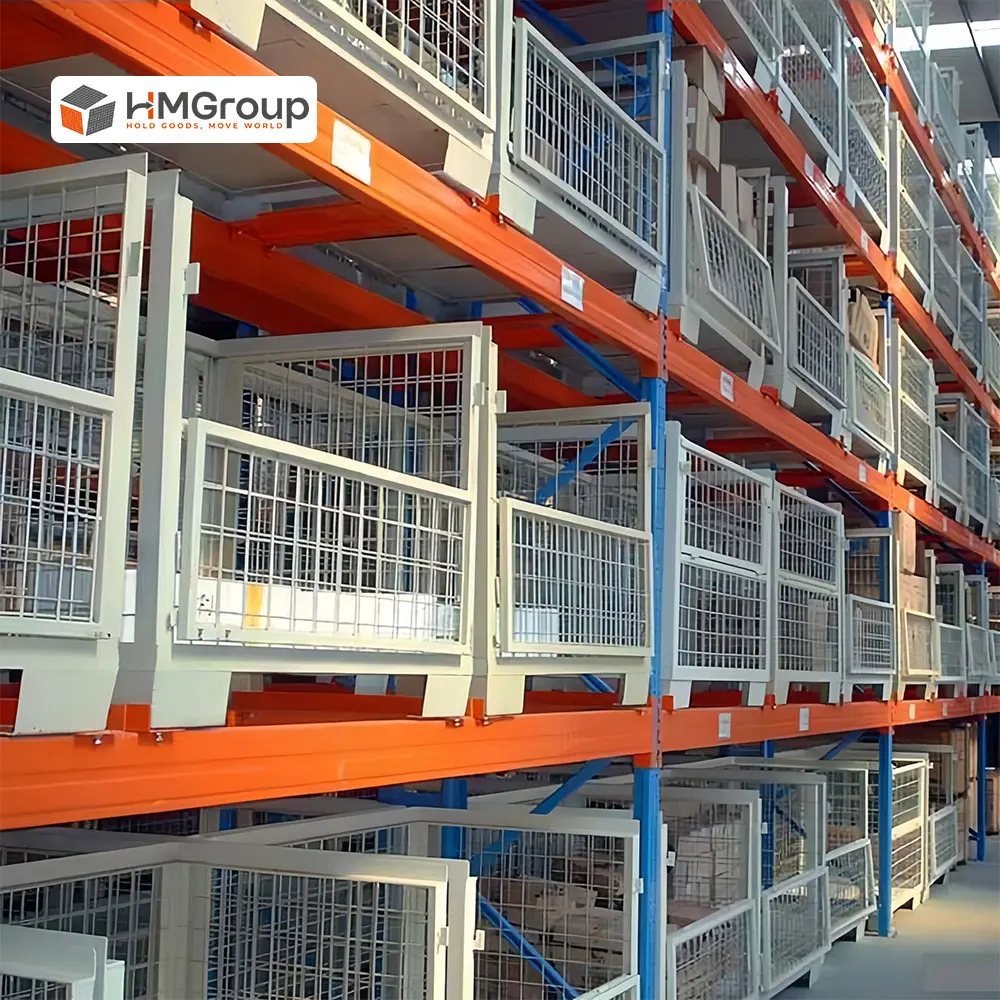

Local warehouse use after arrival: The cages can be opened for parts storage, forklift transfer, and line-side supply.
Visible goods handling: Mesh sides help operators identify stored parts during receiving and stock checks.
Products Customized
For export programs, the key customization point is the overall folded mesh stillage cage size. HM Group can review the open and folded dimensions against the buyer's 40HQ loading plan, goods size, and destination workflow. This helps balance the number of empty cages loaded for export with the usable storage space needed after arrival.
Application
Before export, the logistics team folds empty folded mesh stillage cage and groups them by the approved 40HQ loading plan. At the destination, warehouse staff unload and open each unit before loading local parts. A forklift then moves the filled cages from receiving to storage or a line-side area. When the batch is finished, staff empty the cages, fold the sides, and return the units to the empty-cage area for the next shipment.
Hot Tags: folded mesh stillage cage, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Model No. |
Exterior Dimension |
Side type |
Loading Capacity |
Loaded in 1x40'HQ |
|
LxWxH |
kg |
sets |
||
|
HM-ST007 |
1230x835x970mm |
wire mesh |
1000 |
160 |
|
HM-ST-S001 |
30x32x28 inch |
wire mesh |
800 |
183 |
|
HM-ST-S002 |
30x32x28 inch |
Solid |
800 |
183 |
|
HM-ST-S003 |
66x40x34 inch |
Solid |
1500 |
98 |
|
Material |
Mild steel Q235 |
|||
|
Stacking |
4 high |
|||
|
Application area |
Warehouse, logistics, recycling, auto industry, etc. |
|||
|
Finish |
Powder coating (Hot-dip galvanized custom) |
|||
Similar Specification
HM Group also offers folded mesh stillage cage, PP-sheet cages, galvanized models, powder-coated units, and cages with different access layouts. These products give customers other options for handling small parts, selecting a surface finish, organizing storage areas, and managing return transport.
Video
See how to quickly set up and collapse the mesh into a folded mesh stillage cage in this short video. The video highlights the manual operation of the mesh sides and the simple locking steps required for secure warehouse use. Reach out to our team today for a fast quote and pricing information.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
HM Group operates multiple production sites in China to support material handling projects across different regions. This manufacturing system helps coordinate product configuration, order volume, and delivery timing. For export projects, the team works with customers to align Stillage supply with cage plans, destination warehouse needs, and returnable packaging programs.
Quality Control
QC for this folded mesh stillage cage focuses on folded dimensions and panel fit. Inspectors fold the mesh sides and check that each cage reaches the approved folded position and size. This matters because consistent dimensions support the confirmed cage-loading plan. The purpose is to verify that the cage matches the approved packing arrangement before shipment.
Packing and shipping
1. Prevent scattering in shipping - stretch film wrapped
2. Paper shells - edges are bundled up by paper shells
Certificate
We send empty folded cages to our overseas warehouse before the local program starts. After delivery, our team opens them, loads local parts, and uses them in the same warehouse flow.
What Customers Say
Our empty containers used to take up too much room after the busy season. Now we fold them after unloading, place them in one return area, and open them again when the next stock cycle begins.
FAQ
Q: How many folded mesh stillage cages can fit in one 40HQ container?
A: For HM-ST007, up to 160 sets can fit in one 40HQ container. The final quantity should follow the confirmed product size and packing arrangement.
Q: Why are consistent folded dimensions important?
A: They help the team follow the approved container-loading plan. QC checks the side fit and folded position before shipment.
Q: How are the mesh sides used after arrival?
A: The mesh sides help contain suitable goods during warehouse storage and forklift transfer. PP sheets or dividers can be considered when parts need more internal separation.
