Rack Decking
rack decking for pallet adopts an open structure to avoid dust accumulation, keep the surface clean, reduce the workload of cleaning and maintenance, and improve the cleanliness of the use environment.

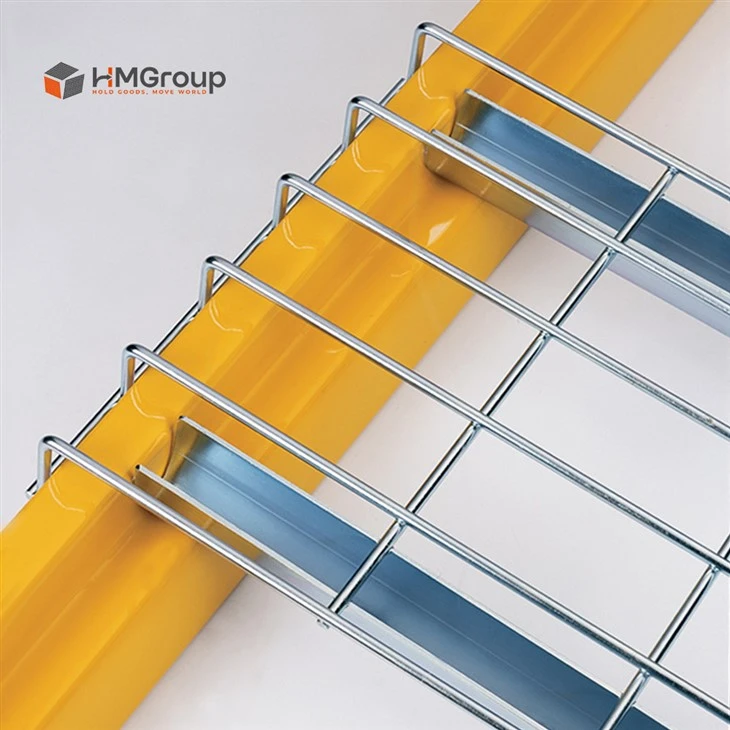

“U style” channel supports

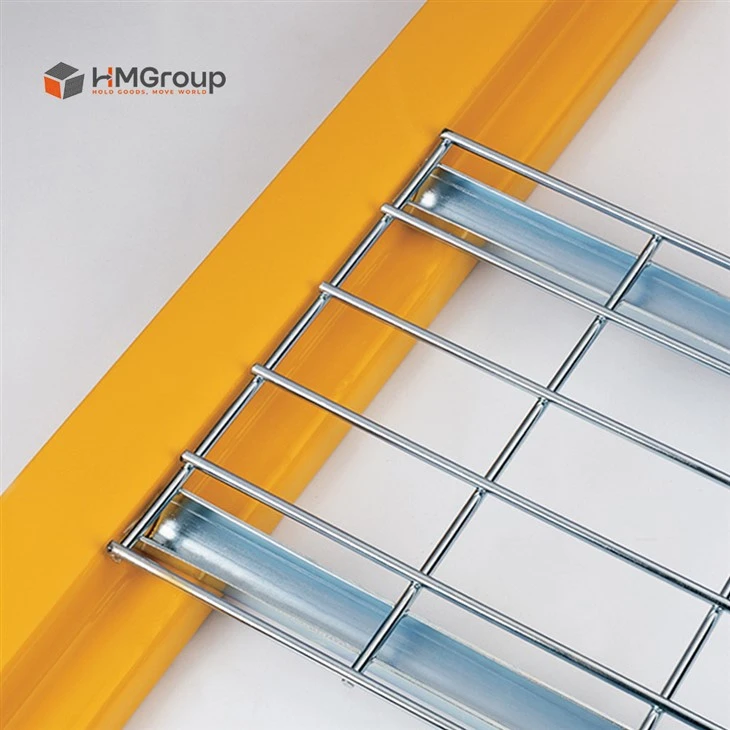

“Flared style” channel supports
Fits on most pallet rack beam
ANSI standard
ISO 9001 standard
A. Loading capacity: 300kg
B. Loading capacity: 800kg
C. Loading capacity: 1000kg
Products Description
Rack Decking
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Zinc/hot dip galvanized/powder coating
Compatible with step beam pallet racking
Available design:
U-Channel/ Inside Waterfall/ Inverted U-Channel/ Flat Flush/ Flared Channel/ Up-turned Waterfall
HM-D42x46W
Model No.
2000lbs
Loading Capacity
42"x46" inch
Exterior dimension
1688 pcs
Loaded in 1X40'HQ
Compared with traditional wooden pallets, rack decking has stronger air permeability, can quickly drain water after cleaning and accelerate the drying process. This design effectively avoids moisture accumulation, reduces the risk of bacterial growth, and keeps the pallet clean and hygienic at all times. It is particularly suitable for environments that need to be kept dry and clean, such as food processing, pharmaceutical storage and other industries, to ensure that items are stored in a safe and dry condition, improve work efficiency and extend the service life of the pallet.
Advantages
1. Made of high-quality steel wire, which is durable, corrosion-resistant, and has a long service life.
2. The wire mesh structure is convenient for cleaning and has good air permeability.
3. The wire mesh tray can withstand high pressure and is suitable for stacking a large number of heavy objects without deformation.
4. Low maintenance because dirt cannot build up on the wire grid
5. The mesh structure makes it easy to mark and classify items on the pallet, making sorting convenient and efficient.
6. Compared with traditional wooden pallets, the price is reduced by 20-30% while providing a longer service life.
Products Customized
We offer a viable customization, including width, depth, mesh size, and wire diameter (4mm–6mm). Channel thickness and channel types can also be adjusted based on your rack type. In addition to Inverted U-Channel wire decking, we also supply flared channel wire decking, waterfall wire decking, and flat flush wire decking options. These alternatives suit box beams or flush installations, giving you more flexibility depending on your rack structure and load requirements. Whether you need heavy-duty or light storage solutions, HM GROUP can design them for your rack.
In the warehousing, logistics, electronics and chemical industries, rack decking are popular because of their high load-bearing capacity, compression resistance and corrosion resistance. They are lightweight and stackable, which helps to improve space utilization, adapt to automation equipment, improve operational efficiency, and meet international transportation standards to ensure safe and reliable transportation of goods.
Hot Tags: rack decking, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China, itc wire decks, Steel Wire Decking, waterfall decking, welded wire rack decking, wire deck shelving, wire verandah railings
Specification
|
Euro Sizes |
|||
|
A.Loading capacity |
B.Loading capacity 800kg |
C.Loading capacity |
|
|
Mesh 50×150 mm |
Mesh 50×100 mm |
Mesh 50×100 mm |
|
|
Dim (D×W) (mm) |
Dim (D×W) (mm) |
Dim (D×W) (mm) |
|
|
600×880 |
1000×880 |
1050×1090 |
1000×1340 |
|
1000×880 |
1050×880 |
800×880 |
1050×1340 |
|
1050×880 |
1100×880 |
1200×880 |
800×1340 |
|
1100×880 |
1000×1090 |
1200×1090 |
1200×1340 |
|
American Sizes |
||
|
Standard U-channel |
Pallet Deck |
|
|
Dim (D×W) (inch) |
Dim (D×W) (inch) |
|
|
24"×46" |
42"×46" |
24"×46" |
|
30"×46" |
42"×52" |
36"×46" |
|
36"×34" |
42"×58" |
36"×52" |
|
36"×46" |
48"×34" |
42"×46" |
|
36"×52" |
48"×46" |
42"×52" |
|
36"×58" |
48"×52" |
44"×46" |
|
42"×34" |
48"×58" |
48"×46" |
The rack accessories typically include sturdy upright posts, adjustable shelves, crossbeams, and locking mechanisms that ensure stability and safety.
The snip-in divider enables quick adjustments to warehouse racking, allowing sections to be created with ease. It's well-suited for warehouses needing flexible storage solutions, as it can be modified based on changing inventory.
Video
By watching the video, you’ll get clear look at the actual rack decking. This helps you see the product’s design, quality, and materials before making decision. Get better idea of what you’re buying!
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Through sophisticated surface treatment processes, we ensure that each pallet meets safety standards, improves the operator's experience, and protects the integrity of the goods.
Quality Control
HM Group QC team will have seriously inspections from the raw material to products final loading.
Packing and shipping
- Prevent scattering in shipping - stretch film wrapped
- Paper shells - edges are bundled up by paper shells
Certificate
We are dedicated to showing that we are a dependable and exceptional partner for all of your requirements.
What Customers Say
“We ordered custom Inverted U-Channel wire decking for our warehouse upgrade. The fit was suitable, and installation was quick. HM GROUP responded fast during the order process and provided clear drawings, which made everything easier.” ---Francisco Moret
FAQ
Q: What is your delivery time?
A: Usually: 1*40'HQ container, around 30days; For some urgent orders,will adjust as your requirement accordingly.
Q: Do you offer custom design?
A: Custom design is surely available. we have very rich experience in customizing shelves.
Q: What sizes and shapes are rack decking for pallet available in?
A: Wire mesh decking are available in a variety of sizes and shapes, including U-Channel, Inverted U-Channel, Flared
Channel, Inside Waterfall, Flat Flush, Up-turned Waterfall, etc. They can be customized to fit specific racking system needs.
