Pallet Racking Wire Decks
Pallet racking wire decks add a wire mesh support surface to standard step-beam racks. Made with Q235 mild steel and U-channel supports, they help support palletized containers with different base sizes. The mesh also allows sprinkler water to pass through each rack level, supporting fire protection planning.
Model No.: HM-D42x46W
Wire Gauge: 4.5-5.5mm
Grid Size: 2.5x4 inch
Channel Type: 3 U-channels
Loading Capacity: 2000lbs
Products Description
Pallet Racking Wire Decks
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Zinc/hot dip galvanized/powder coating
Compatible with step beam pallet racking
Available design:

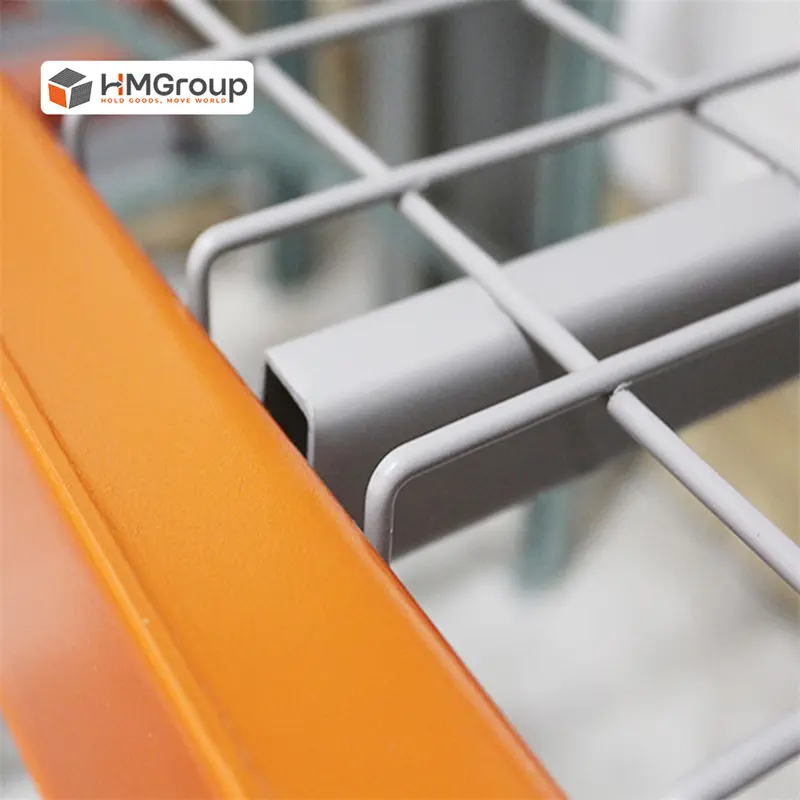

U-Channel/ Inside Waterfall/ Inverted U-Channel/ Flat Flush/ Flared Channel/ Up-turned Waterfall
HM-D42x46W
Model No.
2000lbs
Loading Capacity
42"x46" inch
Exterior dimension
1688 pcs
Loaded in 1X40'HQ

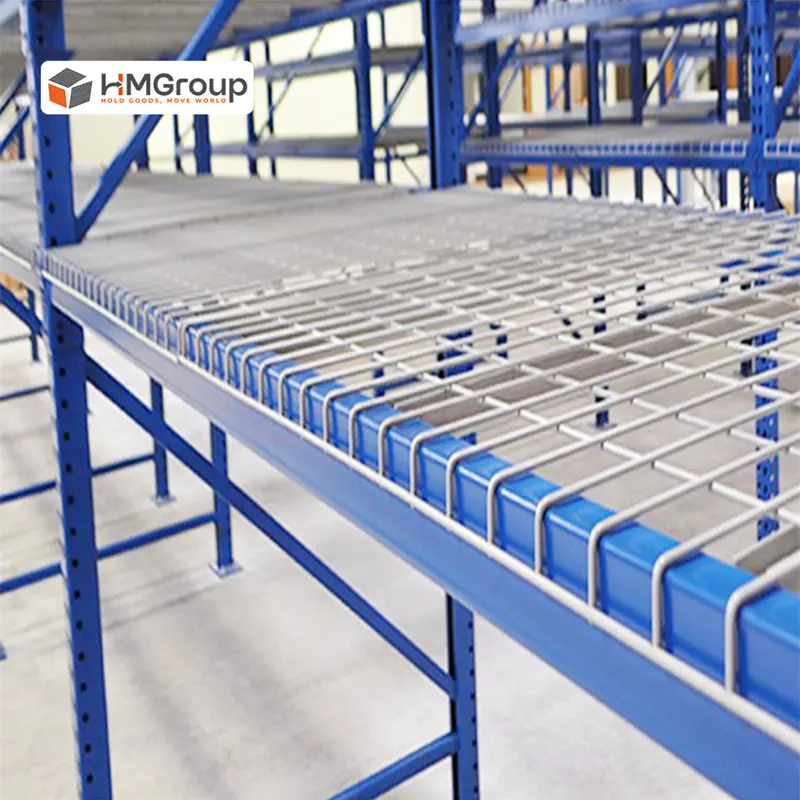

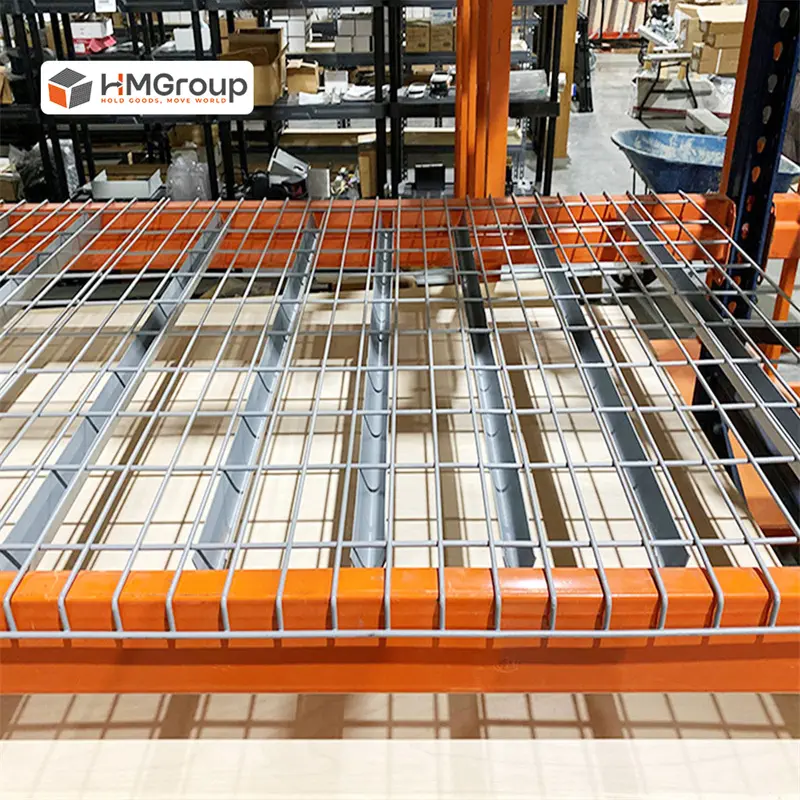

Pallet racking wire decks provide support between standard step beams. In one storage area, wooden pallets, and crates may have different base sizes. Some bases do not fully rest on both beams. The wire mesh supports the container base across the rack level and reduces unsupported areas. U-channel supports the beam step and carries the deck load to the beams. This helps keep the container level when a forklift places it slightly forward or back. The deck does not replace correct pallet placement or rack inspection.
Advantages

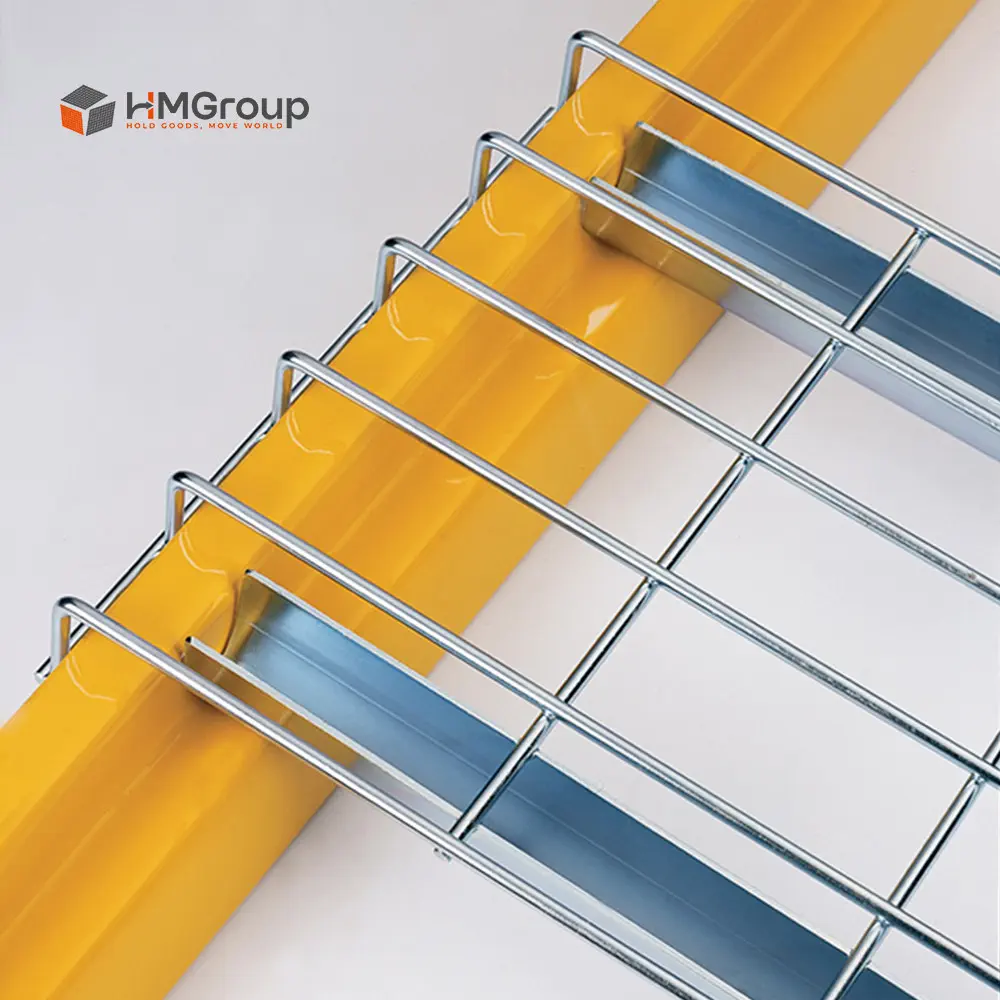

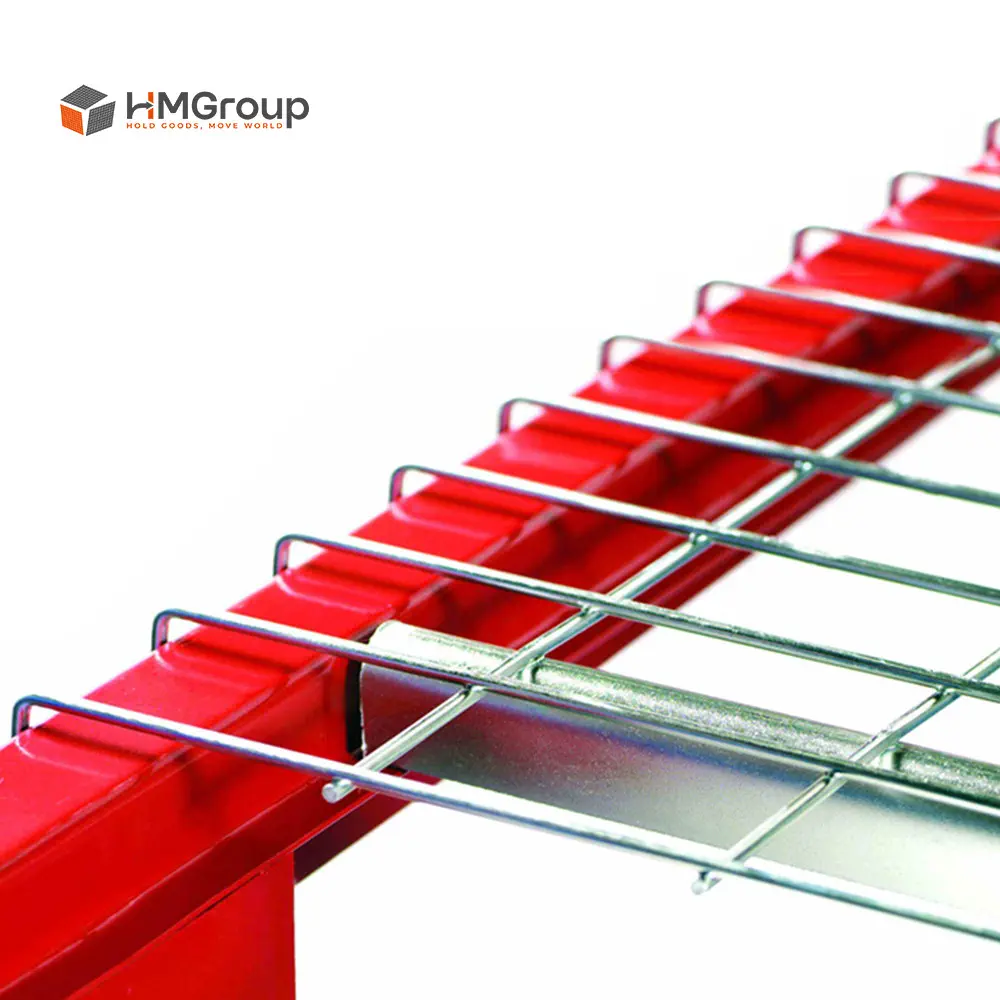

U-channel supports are designed for standard step beams.
Welded wire mesh supports palletized containers between the beams.
Q235 mild steel provides a firm structure for regular warehouse use.
A 2.5 × 4 in. mesh with 5-gauge wire is a common U.S. configuration.
The mesh allows sprinkler water to reach lower rack levels.
Products Customized
Finish options for pallet racking wire decks should match the storage environment. Zinc plated, or electro-galvanized, is suitable for dry indoor warehouses where a clean silver finish is needed. Hot-dip galvanized is a better choice for cold rooms, humid loading areas, outdoor storage, or washdown conditions. Powder coating is available in RAL colors for zone marking or visual management. Deck depth, width, mesh size, wire diameter, and U-channel quantity can also be specified from the rack dimensions and required load.
Hot Tags: pallet racking wire decks, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Euro Sizes |
|||
|
A.Loading capacity |
B.Loading capacity 800kg |
C.Loading capacity |
|
|
Mesh 50×150 mm |
Mesh 50×100 mm |
Mesh 50×100 mm |
|
|
Dim (D×W) (mm) |
Dim (D×W) (mm) |
Dim (D×W) (mm) |
|
|
600×880 |
1000×880 |
1050×1090 |
1000×1340 |
|
1000×880 |
1050×880 |
800×880 |
1050×1340 |
|
1050×880 |
1100×880 |
1200×880 |
800×1340 |
|
1100×880 |
1000×1090 |
1200×1090 |
1200×1340 |
|
American Sizes |
||
|
Standard U-channel |
Pallet Deck |
|
|
Dim (D×W) (inch) |
Dim (D×W) (inch) |
|
|
24"×46" |
42"×46" |
24"×46" |
|
30"×46" |
42"×52" |
36"×46" |
|
36"×34" |
42"×58" |
36"×52" |
|
36"×46" |
48"×34" |
42"×46" |
|
36"×52" |
48"×46" |
42"×52" |
|
36"×58" |
48"×52" |
44"×46" |
|
42"×34" |
48"×58" |
48"×46" |
A standard U-channel deck is made for step beams, while other deck structures can be specified when the beam profile or handling requirement differs. In addition to the standard U-channel design, pallet racking wire decks can be made with inverted U-channels, flared channels, inside waterfall edges, flat flush edges, or up-turned rear edges. These structures address different beam profiles, cleaning requirements, and container-handling methods. The selection should follow the actual beam type, load base, operating environment, and storage process.
Video
Maximize your storage space with these pallet racking wire decks. They are incredibly durable and fast for any worker to set up. Reach out to us now to see how we can optimize your storage!
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Production starts with steel wire drawing and cutting. The wire is then welded into mesh, while sheet steel is formed into U-channel supports. Automated welding equipment helps keep mesh spacing and weld locations consistent within each batch. Support channels are formed and positioned according to the approved deck drawing before final assembly. This process matters because channel location affects how pallet racking wire decks sit on the step beams. After welding, the finished units move to surface treatment, final inspection, packing, and loading.
Quality Control
Dimensional inspection checks deck depth, width, mesh spacing, wire diameter, and U-channel position against the approved order details. For pallet racking wire decks, this check is important because the support channels must match the specified step-beam arrangement. Inspectors also review weld appearance and surface treatment. When galvanized finishes are specified, coating thickness is measured to check whether the treatment is applied consistently. Load testing can be completed according to the agreed load requirement. These checks provide a record to confirm that the finished deck matches the intended rack configuration before shipment.
Packing and shipping
- Prevent scattering in shipping - stretch film wrapped
- Paper shells - edges are bundled up by paper shells
Certificate
We are dedicated to showing that we are a dependable and exceptional partner for all of your requirements.
What Customers Say
“We shared our beam size and rack details before ordering. The pallet racking wire decks arrived in the dimensions we requested. ” — Warehouse Maintenance Supervisor, Winfried Maier.
FAQ
Q: Can pallet racking wire decks support different pallet base sizes?
A: Yes. The wire mesh supports the base between the beams when the container does not fully span the available rack space. Confirm the deck rating and container base dimensions before use.
Q: What information is needed before ordering?
A: Provide the rack frame depth, beam length, beam step size, container type, and required load. These details determine deck dimensions and U-channel placement.
Q: Which finish is suitable for a cold room?
A: Hot-dip galvanized is suitable for cold rooms and humid areas. Zinc plated finishes are generally used in dry indoor storage.
