Wire Pallet Rack Decking

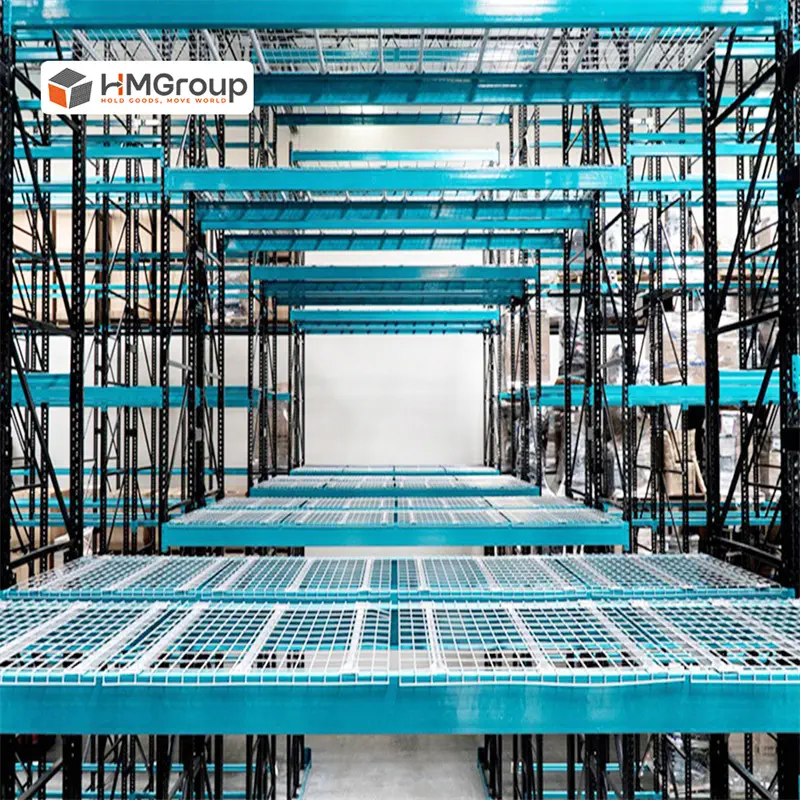

Wire Pallet Rack Decking is for pallet rack locations where the stored unit needs support across the open space between two compatible step beams. The deck uses welded wire mesh and U-channel supports to create a planned bearing surface below pallets, crates, or containers. Its open mesh also allows sprinkler water to pass through the rack level.
Model No.: HM-D42x46W
Wire Gauge: 4.5-5.5mm
Grid Size: 2.5x4 inch
Channel Type: 3 U-channels
Loading Capacity: 2000lbs
Products Description
Wire Pallet Rack Decking
Benefits

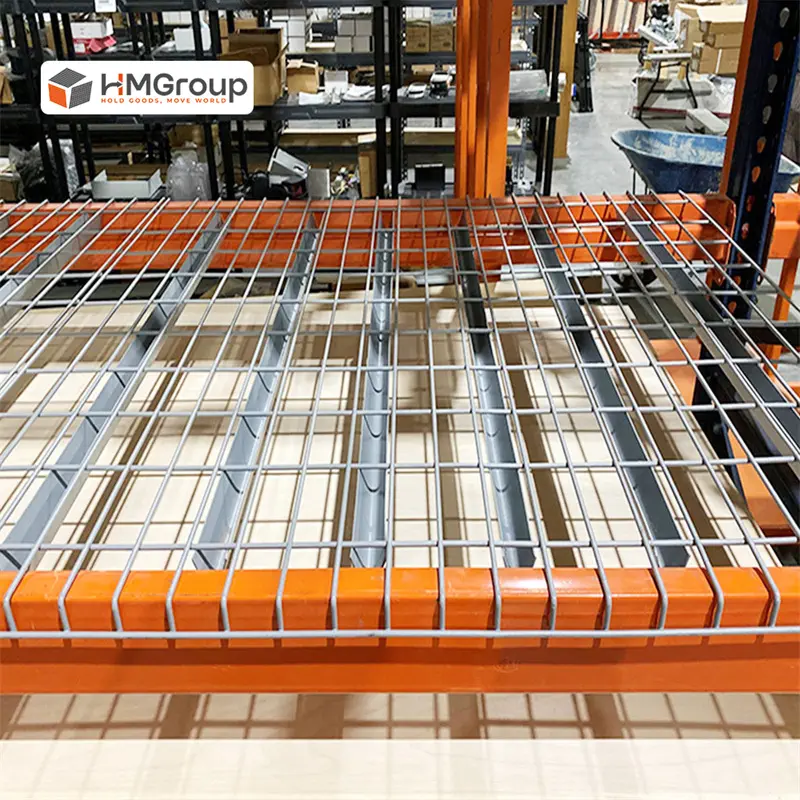

Zinc/hot dip galvanized/powder coating
Compatible with step beam pallet racking
Available design:

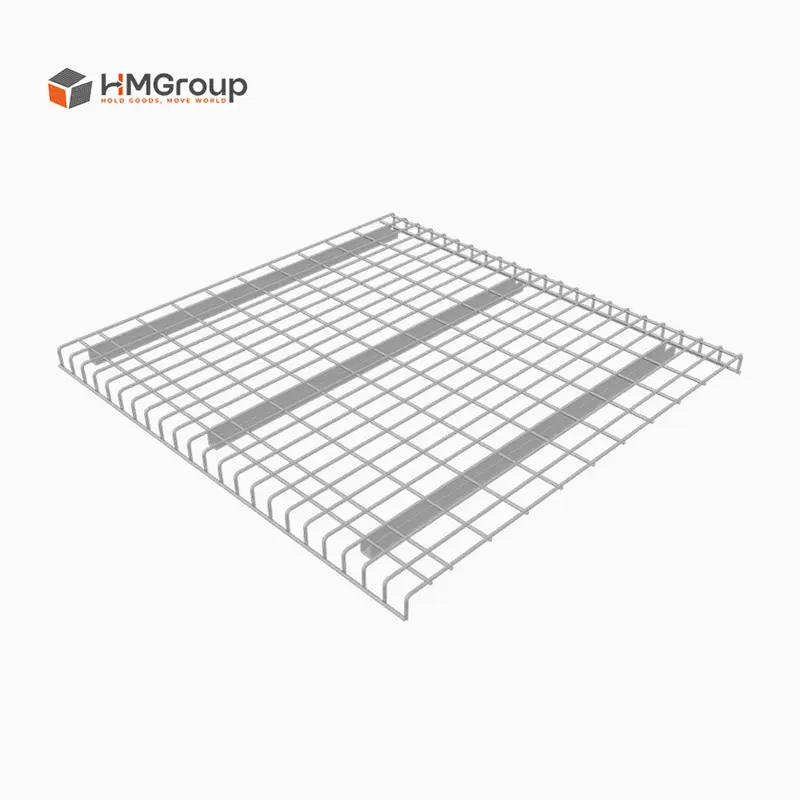

U-Channel/ Inside Waterfall/ Inverted U-Channel/ Flat Flush/ Flared Channel/ Up-turned Waterfall
HM-D42x46W
Model No.
2000 lbs
Loading Capacity
42"x46" inch
Exterior dimension
1688 pcs
Loaded in 1X40'HQ
A pallet rack level is assigned to a load position, not only to a product name. A pallet with runners, a crate, and a container can touch the rack in different places. Wire Pallet Rack Decking gives that position a mesh support area when the load base needs support between the step beams.
We select the deck for the planned storage position. The load base and listed capacity are then checked for that position. This keeps the deck matched to the pallet, crate, or container used in the rack bay. The open mesh leaves a path for sprinkler water through the rack level.
Advantages
Creates a mesh support area for the load base assigned to a rack position.

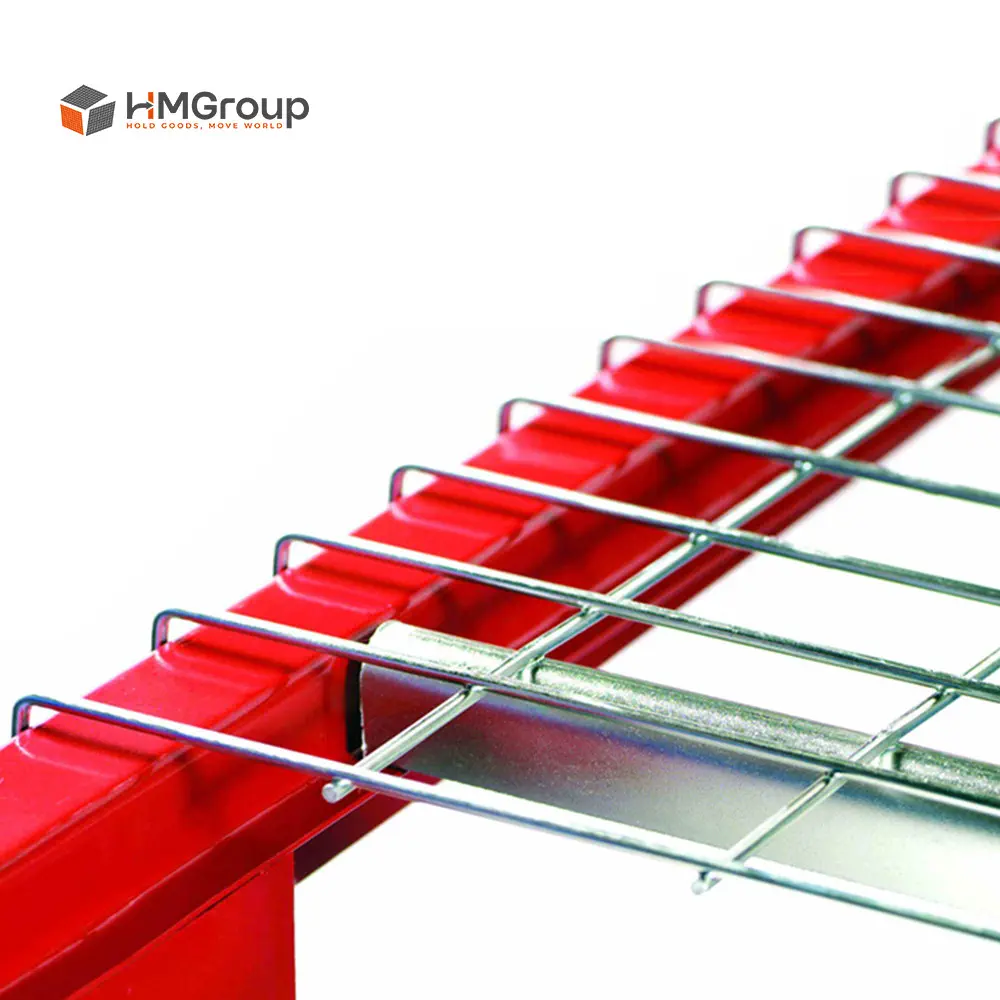

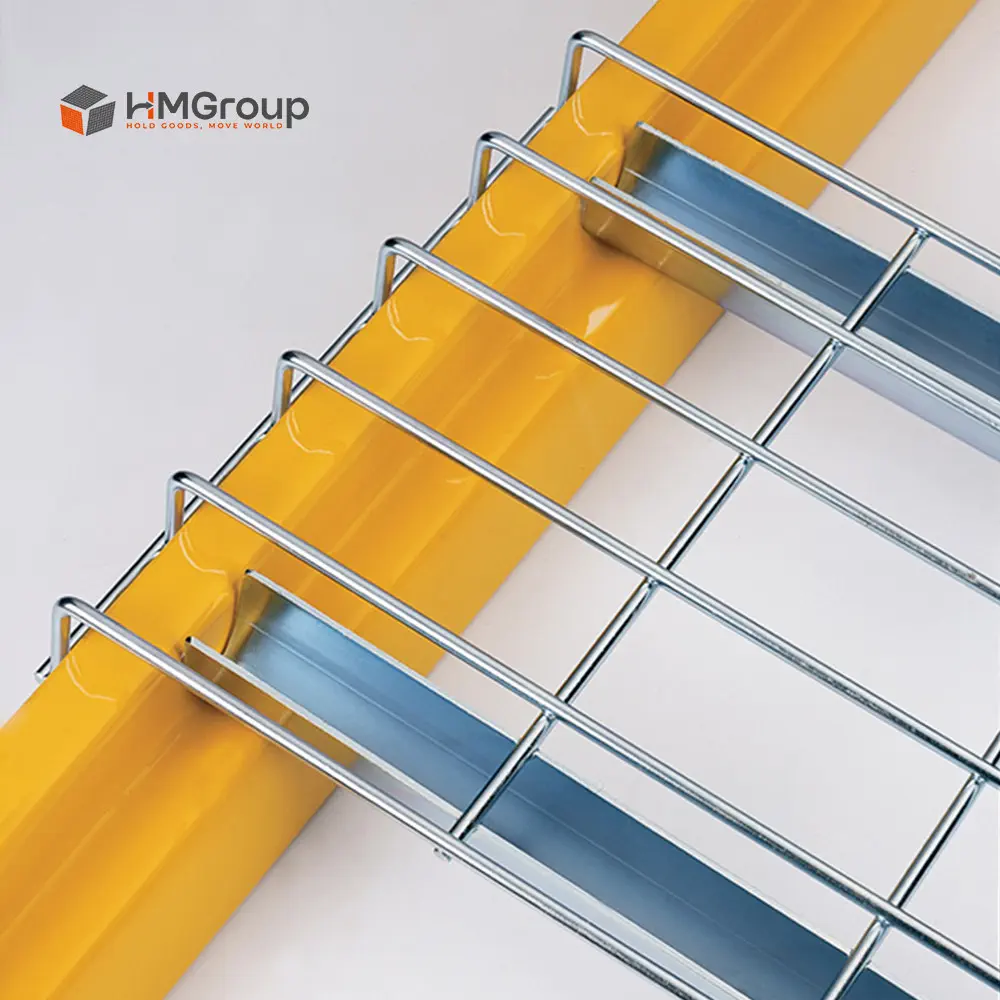

Uses listed U-channel supports to rest on compatible step-beam ledges.
Keeps the rack level open below the pallet, crate, or container base.
Let sprinkler water pass through the wire mesh instead of a solid shelf surface.
Products Customized
We start customization with the storage position. Send us the rack frame depth, beam length, beam step, planned pallet or crate base, and required load for that location. We use these details to set the deck size and review the mesh, wire, and U-channel arrangement. If a rack has more than one load base, each assigned position should be shown on the drawing so the deck can be matched to the planned use.
Hot Tags: wire pallet rack decking, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Euro Sizes |
|||
|
A.Loading capacity |
B.Loading capacity 800kg |
C.Loading capacity |
|
|
Mesh 50×150 mm |
Mesh 50×100 mm |
Mesh 50×100 mm |
|
|
Dim (D×W) (mm) |
Dim (D×W) (mm) |
Dim (D×W) (mm) |
|
|
600×880 |
1000×880 |
1050×1090 |
1000×1340 |
|
1000×880 |
1050×880 |
800×880 |
1050×1340 |
|
1050×880 |
1100×880 |
1200×880 |
800×1340 |
|
1100×880 |
1000×1090 |
1200×1090 |
1200×1340 |
|
American Sizes |
||
|
Standard U-channel |
Pallet Deck |
|
|
Dim (D×W) (inch) |
Dim (D×W) (inch) |
|
|
24"×46" |
42"×46" |
24"×46" |
|
30"×46" |
42"×52" |
36"×46" |
|
36"×34" |
42"×58" |
36"×52" |
|
36"×46" |
48"×34" |
42"×46" |
|
36"×52" |
48"×46" |
42"×52" |
|
36"×58" |
48"×52" |
44"×46" |
|
42"×34" |
48"×58" |
48"×46" |
Wire Pallet Rack Decking can be planned with other rack components when the storage layout needs clear pallet positions. Wire dividers can separate adjacent positions. Pallet support bars can be reviewed where the planned pallet position needs added support. Post protectors and column protectors are selected separately for uprights exposed to forklift travel. Each item should follow the rack layout and the work carried out in that aisle.
Video
This video shows how to choose and install the Wire Pallet Rack Decking for your rack system, so your goods stay supported and secure. The sturdy steel design is simple to fit, quick to use, and made for long-term performance. Need the right decking for your warehouse? Contact Us today.
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Mesh welding is a key step in producing Wire Pallet Rack Decking. Cut steel wire is placed in the welding fixture at the required mesh spacing, then joined at each planned crossing point. Separately formed U-channel supports are positioned under the mesh according to the production drawing. After welding is completed, the product will proceed to the next stage—surface treatment—followed by inspection and packaging.
Quality Control
For Wire Pallet Rack Decking, final inspection includes a seating check for the U-channel supports. Inspectors confirmed that the channels were positioned evenly and followed the approved step-beam layout. If a galvanized finish is specified, the coated surface is reviewed before packing.
Packing and shipping
- Prevent scattering in shipping - stretch film wrapped
- Paper shells - edges are bundled up by paper shells
Certificate
We are dedicated to showing that we are a dependable and exceptional partner for all of your requirements.
What Customers Say
“Good quality and clean finish. The decks fit our rack system well, and the delivery was handled properly.” — Mergen
FAQ
Q: Can Wire Pallet Rack Decking be used on the lowest rack level?
A: Yes, if the step beams, deck size, and stated load requirement are compatible. The same inspection and load rules apply at every rack level.
Q: Should the deck be checked after forklift contact with the rack?
A: Yes. Inspect the deck, support channels, beams, and uprights after any impact. Do not continue using damaged rack components until they are assessed.
Q: Can different deck finishes be used in one warehouse?
A: Yes. A dry storage area may use zinc plated decks, while a cold room or humid area may use hot-dip galvanized decks. Each finish should match its working environment.
Q: Does the deck change the rack beam load limit?
A: No. The deck has its own rated load, but it does not increase the approved capacity of the rack beams or uprights.
