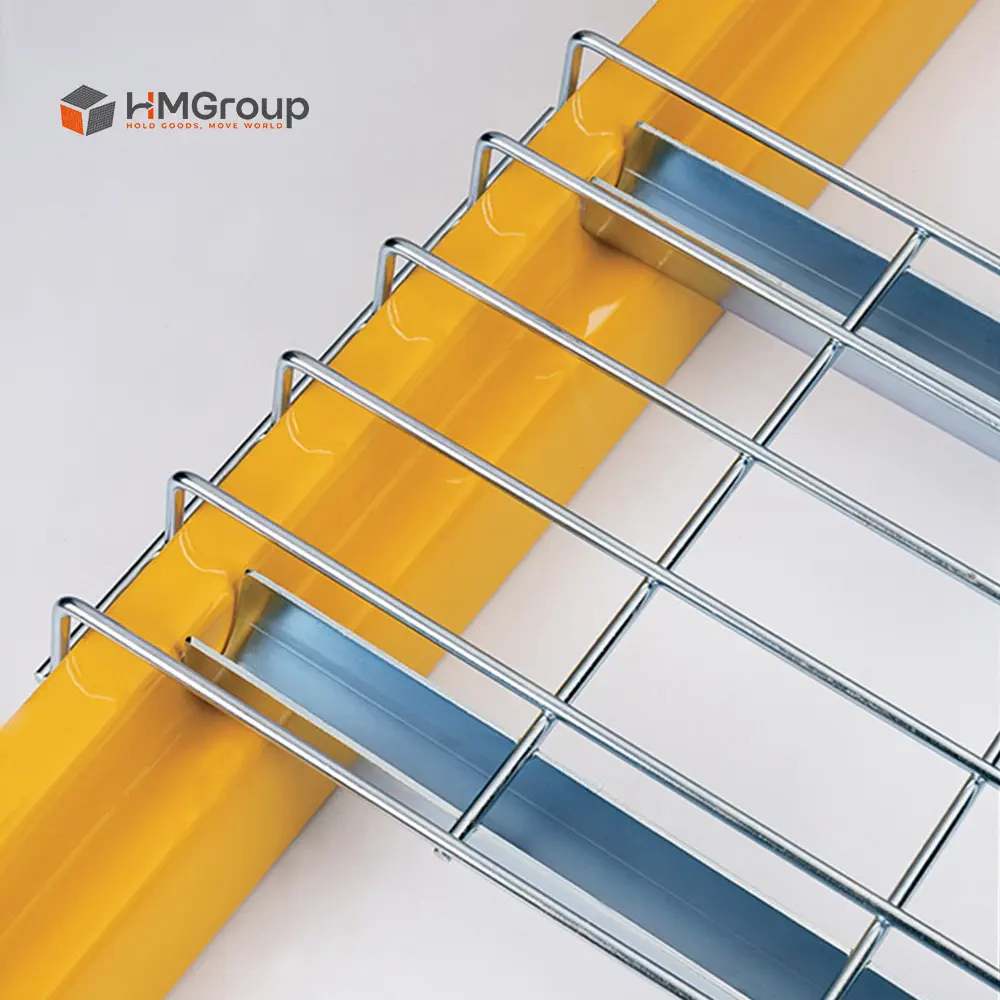

Wire Racking Deck
Wire racking deck provides a wire mesh support surface for palletized containers on standard step-beam racks. Q235 mild steel mesh and U-channel supports work with the rack beams to support selected pallet, crate bases. The mesh also allows sprinkler water to pass between rack levels.
Model No.: HM-D42x46W
Wire Gauge: 4.5-5.5mm
Grid Size: 2.5x4 inch
Channel Type: 3 U-channels
Loading Capacity: 2000lbs
Products Description
Wire Racking Deck
Manufacturing Excellence
Expertise Supplier
Warehouse Solutions
Reliability Partner
Benefits
Zinc/hot dip galvanized/powder coating
Compatible with step beam pallet racking
Available design:

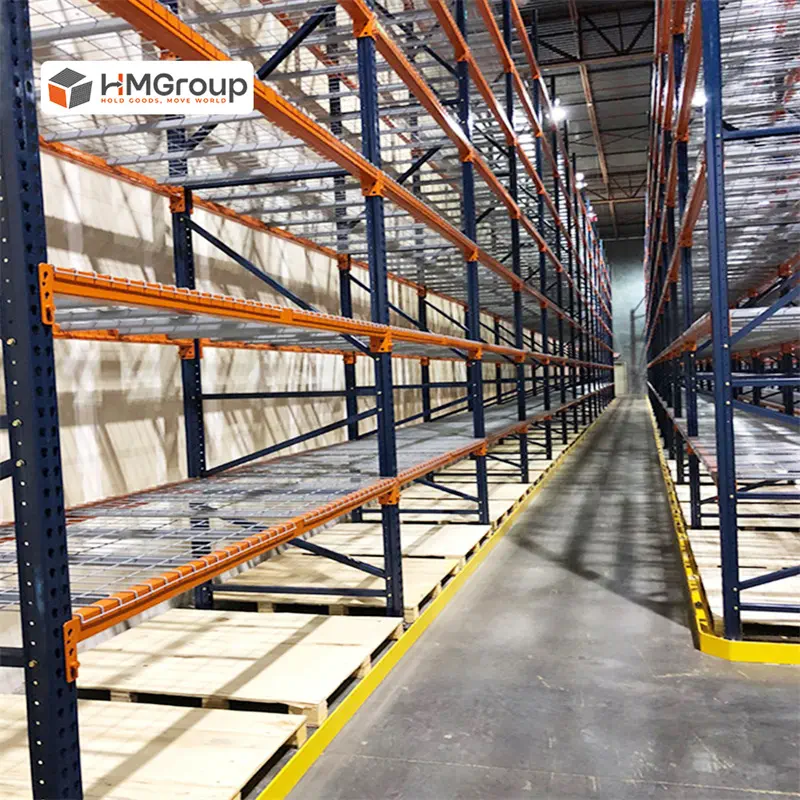

U-Channel/ Inside Waterfall/ Inverted U-Channel/ Flat Flush/ Flared Channel/ Up-turned Waterfall
HM-D42x46W
Model No.
2000lbs
Loading Capacity
42"x46" inch
Exterior dimension
1688 pcs
Loaded in 1X40'HQ

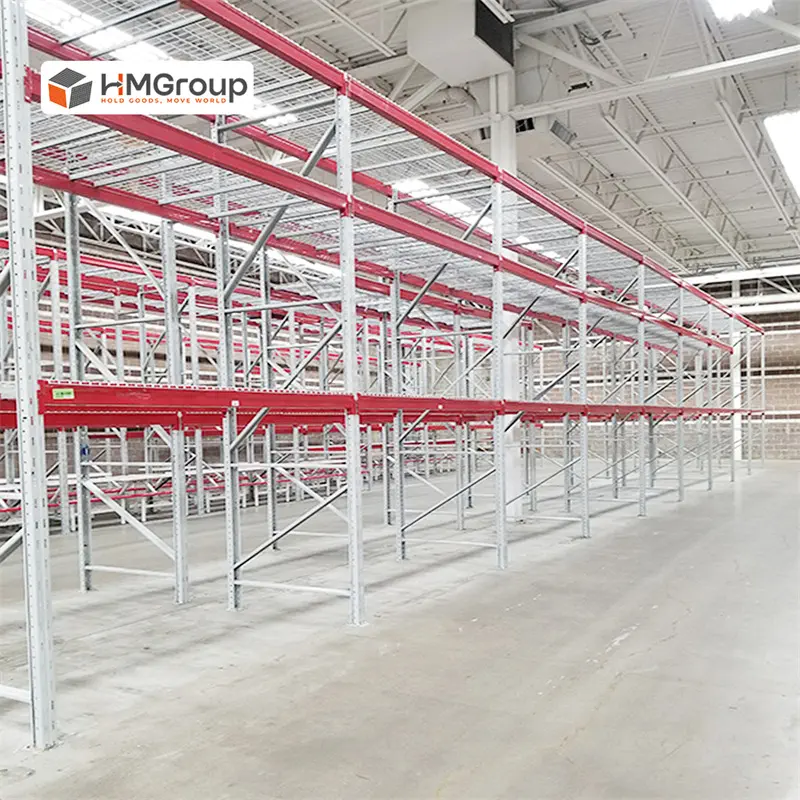

Wire racking deck helps a rack level handle approved load bases that vary across incoming shipments. A warehouse may receive goods on standard pallets or crates. If its base does not span the beam-to-beam space as intended, the wire mesh adds support beneath the container. The U-channel supports sit on the step beams, so the deck load is carried by the rack structure. This gives warehouse teams more flexibility when assigning compatible palletized loads to available locations.
Advantages

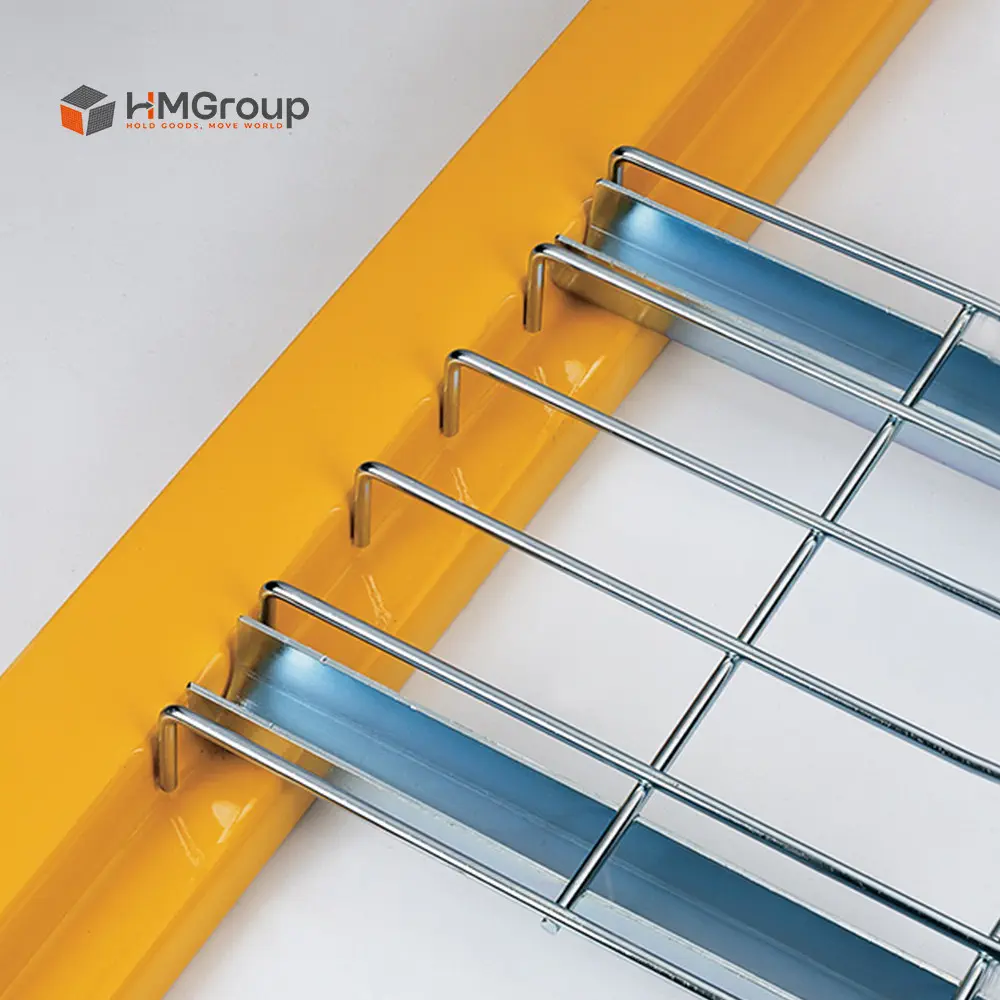

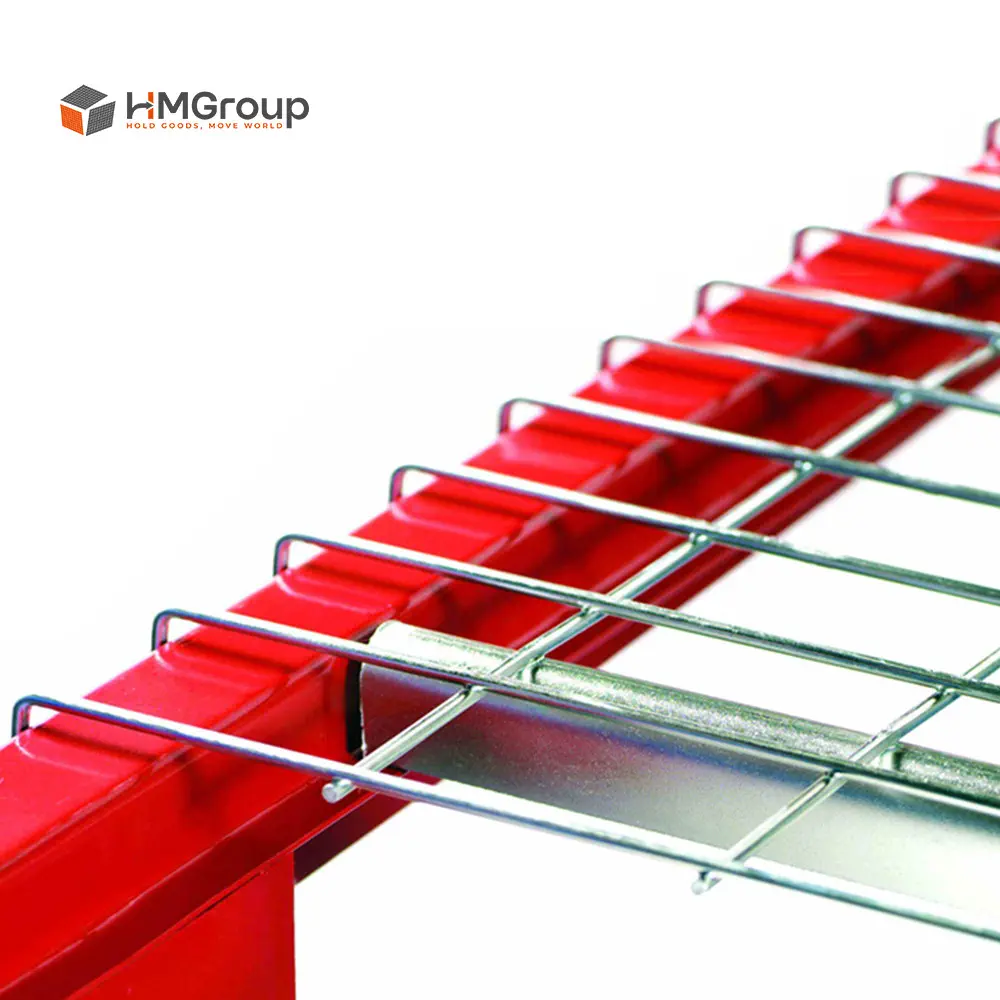

U-channel supports are made to rest on standard step beams.
Q235 mild steel provides a stable deck structure for regular storage work.
A 2.5 × 4 in. mesh with 5-gauge wire is a common U.S. specification.
Deck dimensions can be matched to rack frame depth and beam length.
Products Customized
Wire racking deck can be sized based on the rack layout rather than selected by name alone. Wire mesh welded stackable deck depth follows the rack frame depth. The number of U-channel supports is determined by the deck size and required load. Mesh size and wire diameter can also be reviewed when the container base needs a different support surface. Finish selection then follows the storage environment.
Hot Tags: wire racking deck, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample, made in China
Specification
|
Euro Sizes |
|||
|
A.Loading capacity |
B.Loading capacity 800kg |
C.Loading capacity |
|
|
Mesh 50×150 mm |
Mesh 50×100 mm |
Mesh 50×100 mm |
|
|
Dim (D×W) (mm) |
Dim (D×W) (mm) |
Dim (D×W) (mm) |
|
|
600×880 |
1000×880 |
1050×1090 |
1000×1340 |
|
1000×880 |
1050×880 |
800×880 |
1050×1340 |
|
1050×880 |
1100×880 |
1200×880 |
800×1340 |
|
1100×880 |
1000×1090 |
1200×1090 |
1200×1340 |
|
American Sizes |
||
|
Standard U-channel |
Pallet Deck |
|
|
Dim (D×W) (inch) |
Dim (D×W) (inch) |
|
|
24"×46" |
42"×46" |
24"×46" |
|
30"×46" |
42"×52" |
36"×46" |
|
36"×34" |
42"×58" |
36"×52" |
|
36"×46" |
48"×34" |
42"×46" |
|
36"×52" |
48"×46" |
42"×52" |
|
36"×58" |
48"×52" |
44"×46" |
|
42"×34" |
48"×58" |
48"×46" |
A rack project often needs more than a wire racking decks. HM Group also provides wire dividers for separating stored items and pallet support bars for loads that need additional support between beams. Post protectors and column protectors can be added around rack uprights in forklift travel areas. These related products help build a rack layout around the actual load type, storage position, and operating area.
Video
Protect your inventory and your team with a reliable wire racking deck. It makes material handling fast and keeps your storage area professional. We provide simple solutions that save you time and money. Contact us today to get started with better gear!
HM Group
——
Hold Goods, Move World
- Experienced manufacturer and exporter since 2003.
- Export Quantity: Around max 300 containers per month in 2023
- 10 production bases in 7 cities: Dalian, Qingdao, Xiamen, Nanjing, Hangzhou
- Offer custom-designed to suit your every need
- OEM, ODM support
Production Process
Before the wire racking deck enters the final welded assembly, steel wire is drawn and cut to the required size. The mesh is welded, while sheet steel is formed into U-channel supports. Channel positioning follows the approved production drawing before the supports are joined to the mesh. Finished units then move through surface treatment, inspection, packing, and loading.
Quality Control
Size inspection for each wire racking deck starts with the approved drawing. Inspectors check deck depth, width, wire diameter, mesh spacing, and U-channel position. Weld appearance is also reviewed after assembly. When a galvanized finish is specified, coating thickness is measured on the finished parts. These checks help confirm that the deck matches the stated rack configuration and surface-treatment requirements before packing.
Packing and shipping
- Prevent scattering in shipping - stretch film wrapped
- Paper shells - edges are bundled up by paper shells
Certificate
We are dedicated to showing that we are a dependable and exceptional partner for all of your requirements.
What Customers Say
“Good fit for our existing racks. The wire decks are solid, and the order process was easy to follow.” — Warehouse Supervisor Panagiotis
FAQ
Q: Can a wire racking deck be installed after the pallet rack is already in service?
A: Yes, provided the existing rack has compatible step beams and enough capacity for the intended load. Check the beam profile and rack condition before adding decks.
Q: Should one deck cover the full beam length?
A: Not always. A beam level may use two or more decks, depending on the beam length and deck width.
Q: Can the deck be moved when the rack layout changes?
A: Yes. Standard U-channel decks can be removed and placed on another compatible step-beam level. Confirm that the new beam spacing, depth, and load requirement match the deck specification.
Q: What should be checked during routine inspection of a wire racking deck?
A: Check for bent wire, damaged welds, coating damage, and a deck that is not seated correctly in the beam steps. Remove any damaged unit from service until it is assessed.
